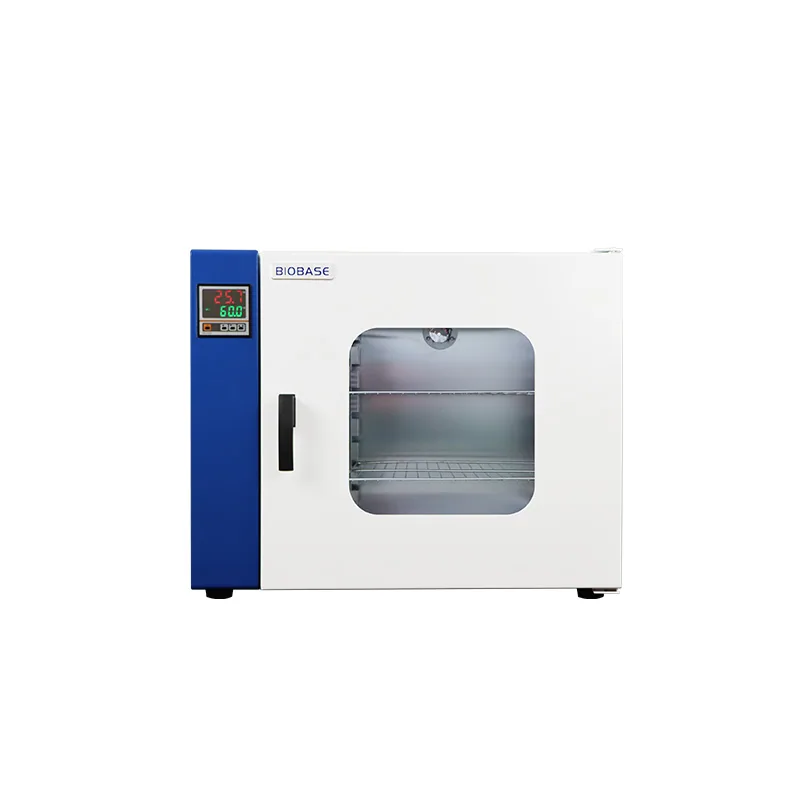

BIOBASE Hot Air Sterilizer BJPX-SH23 BJPX-SH55 BJPX-SH88 BJPX-SH105 BJPX-SH140 BJPX-SH200
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Hot Air Sterilizer BJPX-SH23 BJPX-SH55 BJPX-SH88 BJPX-SH105 BJPX-SH140 BJPX-SH200 is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: BJPX-SH23, BJPX-SH55, BJPX-SH88, BJPX-SH105, BJPX-SH140, BJPX-SH200. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-SH23 | BJPX-SH55 | BJPX-SH88 | BJPX-SH105 | BJPX-SH140 | BJPX-SH200 |
|---|---|---|---|---|---|---|
| Capacity | 23L | 55L | 88L | 105L | 140L | 200L |
| Circulation Mode | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection |
| Temp. Control Way | PT100 | PT100 | PT100 | PT100 | PT100 | PT100 |
| Temp. Control Range | RT+10~250℃ | RT+10~250℃ | RT+10~250℃ | RT+10~250℃ | RT+10~250℃ | RT+10~250℃ |
| Temp. Fluctuation | ±3℃ | ±3℃ | ±3℃ | ±3℃ | ±3℃ | ±3℃ |
| Temp. Uniformity | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ |
| Ambient Temp. | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ |
| Chamber Material | 201 stainless steel | 201 stainless steel | 201 stainless steel | 201 stainless steel | 201 stainless steel | 201 stainless steel |
| Chamber Size(W*D*H)mm | 256*263*314 | 356*340*414 | 433*363*470 | 435*457*500 | 604*463*558 | 605*491*658 |
| Altitude | ＜2000m | ＜2000m | ＜2000m | ＜2000m | ＜2000m | ＜2000m |
| Shelf(mm) | 240*240mm, 2pcs, can be optional | 340*340mm, 2pcs, can be optional | 340*440mm, 2pcs, can be optional | 440*440mm, 2pcs, can be optional | 440*540mm, 2pcs, can be optional | 490*590mm, 2pcs, can be optional |
| Standard Accessories | Shelf*2 | Shelf*2 | Shelf*2 | Shelf*2 | Shelf*2 | Shelf*2 |
| Optional Accessories | Shelf | Shelf | Shelf | Shelf | Shelf | Shelf |
| Consumption | 600W | 1000W | 1200W | 1600W | 2000W | 2300W |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) |
| External Size(W*D*H) | 583*393*486mm | 683*494*586mm | 781*482*642mm | 781*593*670mm | 881*594*730mm | 931*644*802mm |
| Package Size(W*D*H) | 675*522*641mm | 775*622*741mm | 873*622*796mm | 873*722*825mm | 973*722*885mm | 1023*722*985mm |
| Net Weight | 29.5kg | 42kg | 53kg | 62kg | 67.5kg | 75kg |
| Gross Weight | 40kg | 53kg | 65kg | 78kg | 90kg | 105kg |
Manufacturer catalogue checked 2026-09-28.
