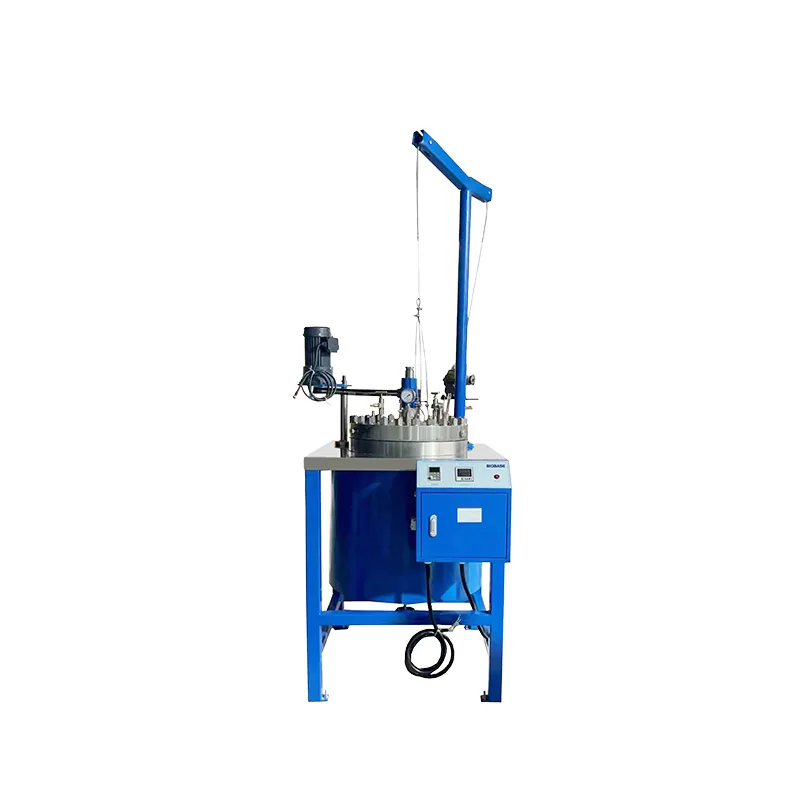

BIOBASE High Pressure Reactor
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE High Pressure Reactor is listed in VVON's sample digestion & laboratory reactors range for Bangladesh. Published models: HPR-0.5L, HPR-1L, HPR-2L, HPR-3L, HPR-5L, HPR-10L. Compare the remaining models in the specification tables. Match sample chemistry, vessels, working volume and operating conditions. For a quotation, send the sample chemistry, vessel type, volume, temperature and pressure requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | HPR-0.5L | HPR-1L | HPR-2L | HPR-3L | HPR-5L | HPR-10L | HPR-20L | HPR-50L |
|---|---|---|---|---|---|---|---|---|
| Capacity | 0.5L | 1L | 2L | 3L | 5L | 10L | 20L | 50L |
| Pressure | 22MPa | 22MPa | 22MPa | 22MPa | 22MPa | 22MPa | 22MPa | 10MPa |
| Temperature | 350°C | 350°C | 350°C | 350°C | 350°C | 350°C | 350°C | 350°C |
| Stirring Speed | 50~1000rpm | 50~1000rpm | 50~1000rpm | 50~1000rpm | 50~600rpm | 50~600rpm | 50~600rpm | 50~600rpm |
| Material | SS304/SS316/Hastelloy alloy | SS304/SS316/Hastelloy alloy | SS304/SS316/Hastelloy alloy | SS304/SS316/Hastelloy alloy | SS304/SS316/Hastelloy alloy | SS304/SS316/Hastelloy alloy | SS304/SS316/Hastelloy alloy | SS304/SS316/Hastelloy alloy |
| Heating Power | 0.7kW | 1.5kW | 2kW | 3kW | 4kW | 8kW | 10kW | 15kW |
| Power Supply | Standard: 220V, 50/60Hz; optional: 110V, 50/60Hz | Standard: 220V, 50/60Hz; optional: 110V, 50/60Hz | Standard: 220V, 50/60Hz; optional: 110V, 50/60Hz | Standard: 220V, 50/60Hz; optional: 110V, 50/60Hz | Standard: 220V, 50/60Hz; optional: 380V, 50/60Hz | 380V, 50/60Hz | 380V, 50/60Hz | 380V, 50/60Hz |
| Packing Size(W*D*H) | 620*480*1430mm | 490*690*1490mm | 740*590*1590mm | 770*520*1580mm | 840*590*1650mm | 970*620*1380mm | 1020*870*1430mm | 1700*820*1580mm |
| Gross Weight | 100kg | 105kg | 160kg | 180kg | 205kg | 225kg | 308kg | 514kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
