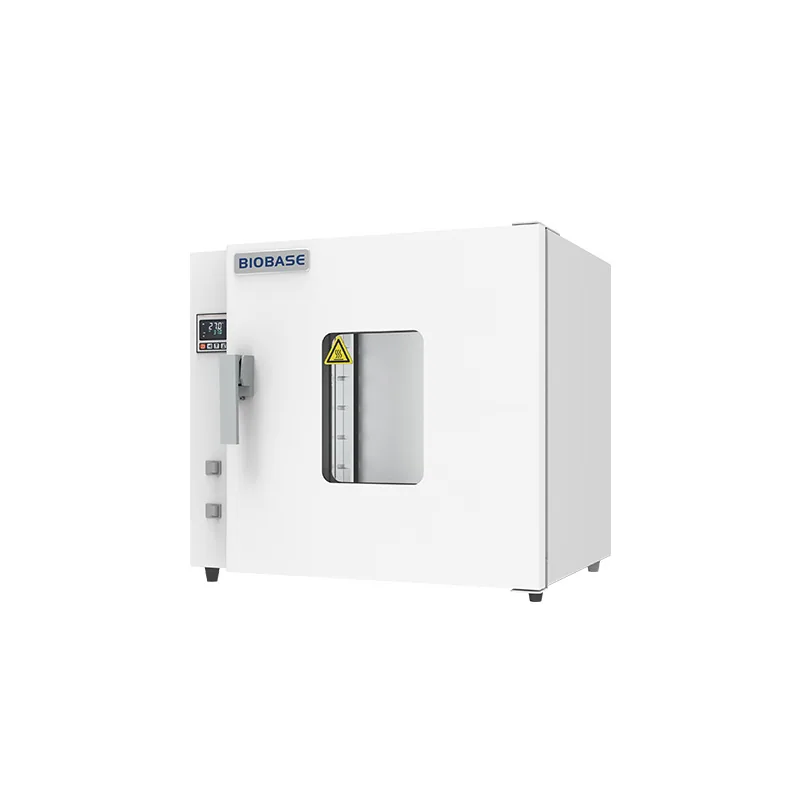

BIOBASE Forced Air Drying Oven BJPX-HG Series

Brand: BIOBASE | Category: Scientific & Laboratory Equipment

BIOBASE Forced Air Drying Oven BJPX-HG Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: BJPX-HGZ23, BJPX-HGZ30L, BJPX-HGZ45, BJPX-HGZ54, BJPX-HGZ75, BJPX-HGZ88. Compare the remaining models in the specification tables. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications 1

Model	BJPX-HGZ23	BJPX-HGZ30L	BJPX-HGZ45	BJPX-HGZ54	BJPX-HGZ75	BJPX-HGZ88	BJPX-HGZ88
Capacity	23L	30L	45L	54L	75L	88L	88L
Temp. Range	RT+10~300℃	RT+10~300℃	RT+10~300℃	RT+10~300℃	RT+10~300℃	RT+10~300℃	RT+10~300℃
Temp. Resolution	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃
Temp. Fluctuation	±1℃	±1℃	±1℃	±1℃	±1℃	±1℃	±1℃
Temp. Uniformity	≤Max Temp.±2.5％	≤Max Temp.±2.5％	≤Max Temp.±2.5％	≤Max Temp.±2.5％	≤Max Temp.±2.5％	≤Max Temp.±2.5％	≤Max Temp.±2.5％
Circulation Mode	Forced convection	Forced convection	Forced convection	Forced convection	Forced convection	Forced convection	Forced convection
Timing Range	1~9999min/h or continuous	1~9999min/h	1~9999min/h or continuous	1~9999min/h or continuous	1~9999min/h or continuous	1~9999min/h or continuous	1~9999min/h or continuous
Shelves	2pcs	2pcs	2pcs	2pcs	2pcs	2pcs	3pcs
Display	LCD	LCD	LCD	LCD	LCD	LCD	LCD
Standard Accessories	Shelf	Shelf	Shelf	Shelf	Shelf	Shelf	Shelf
Optional Accessories	Shelf, USB port, printer, RS485	Shelf, caster	Shelf, USB port, printer, RS485	Shelf, USB port, printer, RS485	Shelf, USB port, printer, RS485	Shelf, USB port, printer, RS485	Shelf, USB port, printer, RS485
Power Supply	AC100~245V, 50/60Hz	AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)	AC100~245V, 50/60Hz	AC100~245V, 50/60Hz	AC100~245V, 50/60Hz	AC100~245V, 50/60Hz	AC100~245V, 50/60Hz
Consumption	645W	1000W	1545W	1545W	1545W	1545W	1545W
Internal Size(W*D*H)	300*290*270mm	310*310*310mm	370*358*340mm	370*340*440mm	463*352*463mm	500*360*490mm	500*360*490mm
External Size(W*D*H)	500*540*410mm	440*495*670mm	600*630*520mm	600*620*630mm	690*630*615mm	730*640*660mm	730*640*660mm
Package Size(W*D*H)	650*660*580mm	550*580*830mm	720*710*730mm	720*710*730mm	830*700*800mm	830*700*800mm	830*700*800mm
Net Weight	35kg	38kg	40kg	43.5kg	47kg	50.5kg	50.5kg
Gross Weight	50kg	50kg	55kg	55kg	60kg	63kg	63kg

Manufacturer specifications 2

Model	BJPX-HGZ138	BJPX-HGZ160	BJPX-HGZ160	BJPX-HGZ225	BJPX-HGZ270
Capacity	138L	160L	160L	225L	270L
Temp. Range	RT+10℃~300℃	RT+10℃~300℃	RT+10℃~300℃	RT+10℃~300℃	RT+10℃~300℃
Temp. Resolution	0.1℃	0.1℃	0.1℃	0.1℃	0.1℃
Temp. Fluctuation	±1℃	±1℃	±1℃	±1℃	±1℃
Temp. Uniformity	≤Max Temp.±2.5％	≤Max Temp.±2.5％	≤Max Temp.±2.5％	≤Max Temp.±2.5％	≤Max Temp.±2.5％
Circulation Mode	Forced convection	Forced convection	Forced convection	Forced convection	Forced convection
Timing Range	1~9999min/h or continuous	1~9999min/h or continuous	1~9999min/h or continuous	1~9999min/h or continuous	1~9999min/h or continuous
Shelves	3pcs	3pcs	3pcs	3pcs	3pcs
Display	LCD	LCD	LCD	LCD	LCD
Standard Accessories	Shelf	Shelf	Shelf	Shelf	Shelf
Optional Accessories	Shelf, USB port, printer, RS485	Shelf, USB port, printer, RS485	Shelf, USB port, printer, RS485	Shelf, USB port, printer, RS485	Shelf, USB port, printer, RS485
Power Supply	AC100~245V, 50/60Hz	AC100~245V, 50/60Hz	AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)	AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)	AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
Consumption	1545W	2000W	2000W	3000W	3000W
Internal Size(W*D*H)	555*453*555mm	558*500*578mm	558*500*578mm	600*520*728mm	660*590*700mm
External Size(W*D*H)	780*705*720mm	785*777*764mm	785*777*764mm	826*780*900mm	900*880*890mm
Packing Size(W*D*H)	870*795*850mm	830*895*990mm	830*895*990mm	946*850*1050mm	1010*946*1050mm
Net Weight	60kg	68.5kg	68.5kg	77kg	86.5kg
Gross Weight	77kg	82kg	82kg	92kg	100kg

Manufacturer catalogue checked 2026-09-28.
