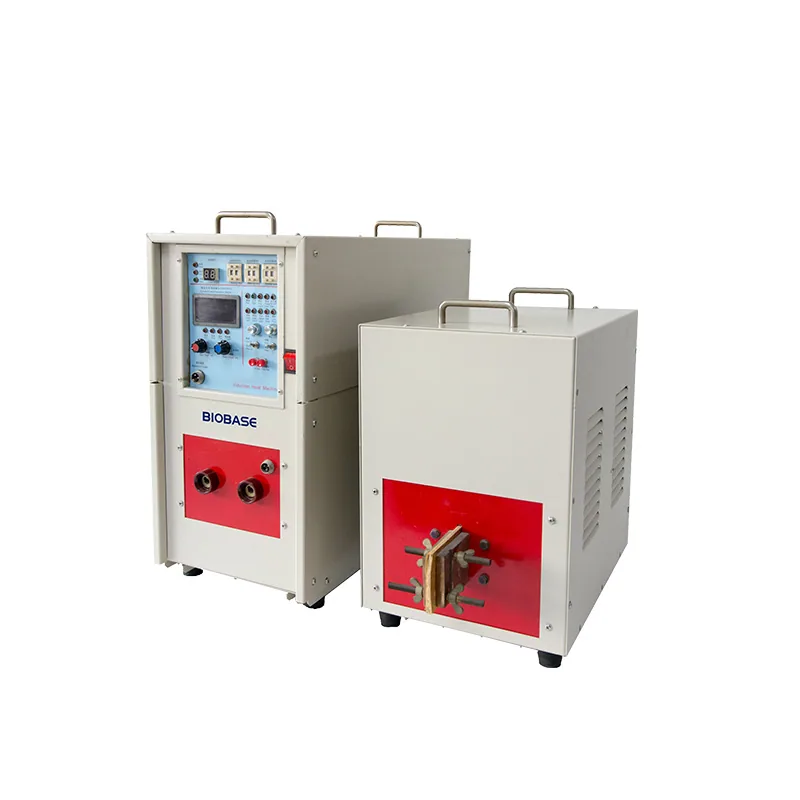

BIOBASE High Frequency Induction Heater BK-HIH35
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE High Frequency Induction Heater BK-HIH35 is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: BK-HIH35. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-HIH35 |
|---|---|
| Maximum Oscillation Power | 40KVA |
| Input Voltage Range | 380V 50/60Hz |
| Output Oscillation Frequency | 30KHz~80KHz |
| Maximum Input Current | 53A |
| Heating Time | 1~99s |
| Heat Preservation Time | 1~99s |
| Cooling Time | 1~99s |
| Duty Cycle | 100% |
| Cooling Water Flow | 0.2MPa ≥6L/Min |
| Cooling Water Temperature | <45℃ |
| Power Supply | 380V 50/60Hz |
| External Size(W*D*H) | Controller:650*260*540mm; Transformer:500*270*450mm |
| Net Weight | Controller:40kg; Transformer:32kg |
| Package Size(W*D*H) | 680*650*620mm |
| Gross Weight | 100kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
