Brand: BIOBASE | Category: Scientific & Laboratory Equipment

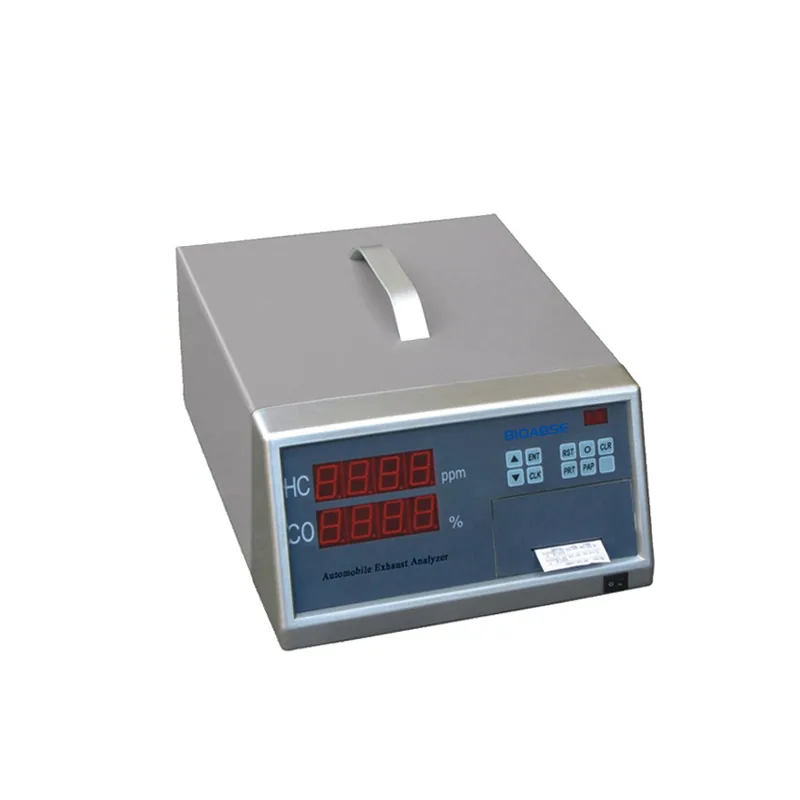

BIOBASE Exhaust Analyzer is listed in VVON's air quality & cleanroom testing range for Bangladesh. Published models: BK-EA201, BK-EA301, BK-EA401, BK-EA501. Match measured parameters, sampling flow, range and calibration requirements. For a quotation, send the application, measured parameter, sampling method and required range. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-EA201 | BK-EA301 | BK-EA401 | BK-EA501 |
|---|---|---|---|---|
| Measuring Range | HC: 0~10000*10^-6(ppm)vol CO: 0~10*10 ^-2(%)vol | HC: 0~10000*10^-6(ppm)vol CO: 0~10*10 ^-2(%)vol NOx: 0~5000*10^-6(ppm)vol | HC: 0~10000*10^-6(ppm)vol CO: 0~10*10 ^-2(%)vol CO2: 0~20*10^-2(%)vol O2: 0~25*10^-2(%)vol λ: 0.50~3.00 COcor: 0~10*10^-2(%)vol | HC: 0~10000*10^-6(ppm)vol CO: 0~10*10^-2(%)vol CO2: 0~20*10^-2(%)vol O2: 0~25*10^-2(%)vol NOx: 0~5000*10^-6(ppm)vol λ: 0.50~3.00 COcor: 0~10*10^-2(%)vol |
| Indicating Error | HC±12*10^-6(ppm)vol CO±0.06*10^-2(%)vol | HC±12*10^-6(ppm)vol CO±0.06*10^-2(%)vol NOx±25*10^-6(ppm)vol | HC±12*10^-6(ppm)vol CO±0.06*10^-2(%)vol CO_(2)±0.5*10^-2(%)vol O2±0.1*10^-2(%)voI | HC±12*10^-6(ppm)vol CO±0.06*10^-2(%)vol CO2±0.5*10^-2(%)vol O_(2)±0.1*10^-2(%)voI NOx±25*10^-6(ppm)vol |
| Stability | Moment drift≤±3% | Moment drift≤±3% | Moment drift≤±3% | Moment drift≤±3% |
| Repeatability | ≤±2% | ≤±2% | ≤±2% | ≤±2% |
| Response Time | 95% response is not more than 10 seconds | 95% response is not more than 10 seconds | 95% response is not more than 10 seconds | 95% response is not more than 10 seconds |
| Preheating Time | 8min(preheating 3min emergency detection) | 8min(preheating 3min emergency detection) | 8min(preheating 3min emergency detection) | 8min(preheating 3min emergency detection) |
| Power Supply | AC110~240V±10%, 50/60Hz; Optional: DV12V | AC110~240V±10%, 50/60Hz; Optional: DV12V | AC110~240V±10%, 50/60Hz; Optional: DV12V | AC110~240V±10%, 50/60Hz; Optional: DV12V |
| Package Size(W*D*H) | 620*435*295mm | 620*435*295mm | 620*435*295mm | 620*435*295mm |
| Gross Weight | 12.5kg | 12.5kg | 12.5kg | 12.5kg |
Manufacturer catalogue checked 2026-09-28.
