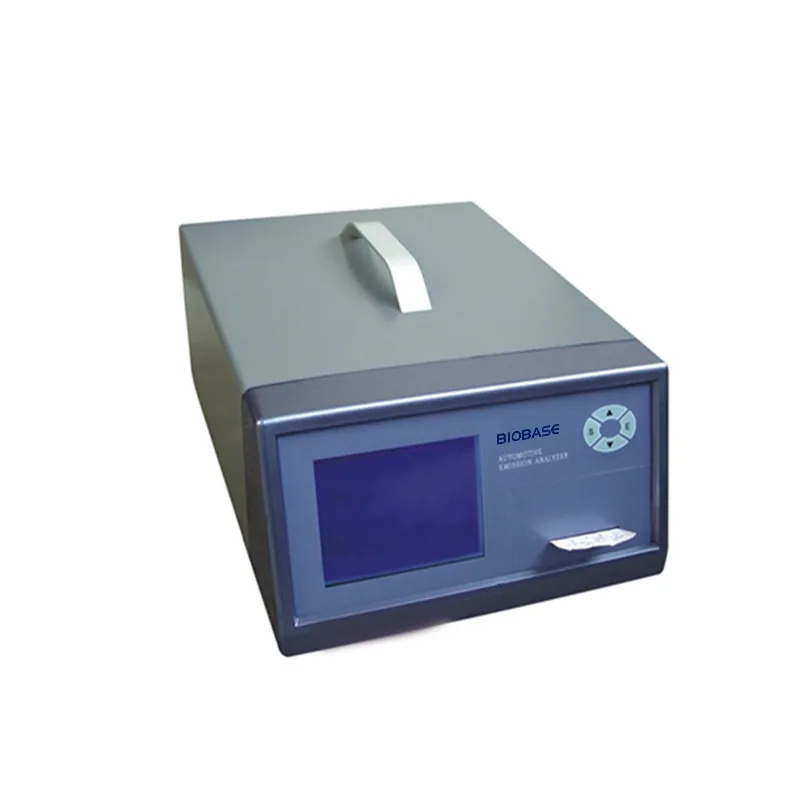

BIOBASE Automobile Exhaust Analyzer BK-EA500
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Automobile Exhaust Analyzer BK-EA500 is listed in VVON's air quality & cleanroom testing range for Bangladesh. Published models: BK-EA500. Match measured parameters, sampling flow, range and calibration requirements. For a quotation, send the application, measured parameter, sampling method and required range. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-EA500 |
|---|---|
| Measurement range | HC:0~10000x10-6 (ppm) vol; C0:0~10x10-2(%)vol CO2:0 ~20x10-2(%)vol ; O2:~25*10・2(%)vol NOx:0~5000*10・6 (ppm) vol λ:0.50~3.00 COcor:0~10x 10-2(%)vol |
| Speed speed | 0-9990rpm |
| Oil temperature | 0-150 °C |
| The value error | HC ± 12 x 10-6 (PPM) VOL (absolute error) or ± 5%(relative error) CO ± 0.06 x 10-2 (%) VOL (absolute error) or ± 5%(relative error) CO2 ± 0.5 x 10-2 (%) VOL (absolute error) or ± 5%(relative error) 02 ± 0.1 x 10-2 (%) VOL (absolute error) or ± 5%(relative error) Nox ± 25 x 10-6 (PPM) VOL (absolute error) or ± 4%(relative error) |
| Repeatability error | <±2% |
| Stability | Torque drift < ± 3%, zeroing |
| Resolution | HC:1x10-6 (ppm) vol CO: 0.01x10-2(%)voI CO2: 0.1xiQ-2(%)vol O2: 0.01x10-2(%)vol NOx:1><10-6 (ppm) vol λ:0.01 |
| The response time | 95%response is not more than 10 seconds |
| Preheating time | 8min (preheating 3min emergency test) |
| The output method | Can be displayed on the screen. The maximum value, average, minimum value and license plate number of the gas concentration can be printed. Date, speed, oil temperature and λ, COCOR value, can be connected to the computer network |
| Environmental conditions | Temperature -5 ~ 50 °C, relative humidity <90% |
| Power supply | AC100-240V 50/60Hz or DC 12V (select the power inverter). Consumption power 40VA |
| Dimensions | 420mm (long) x 310mm (width) x 170mm (height) |
| Weight | About 9kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
