Brand: BIOBASE | Category: Scientific & Laboratory Equipment

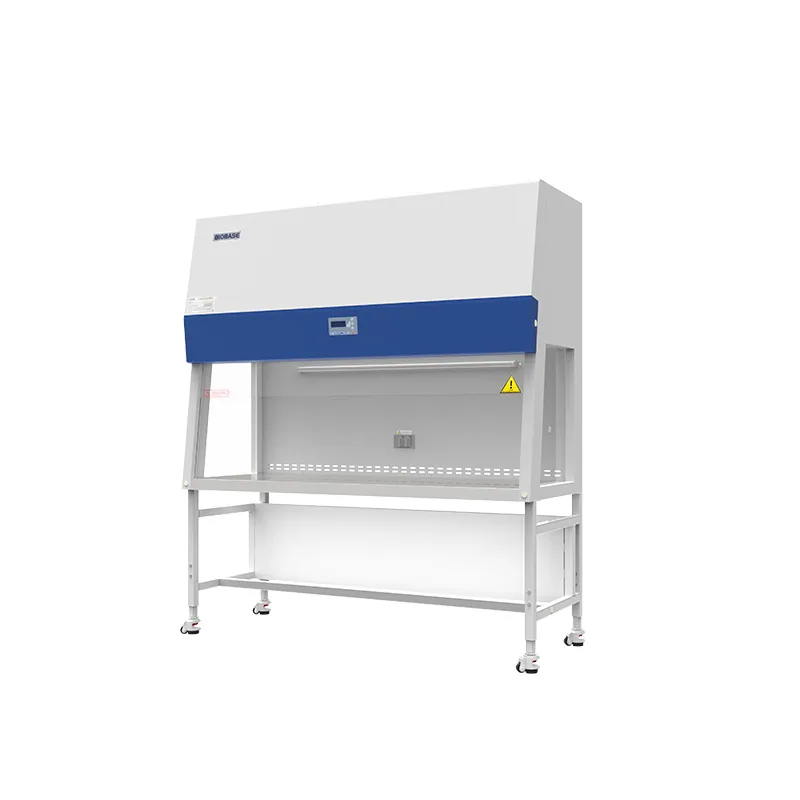

BIOBASE ETL Certified Vertical Laminar Flow Cabinet is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: BBS-V800, BBS-V1100, BBS-V1300, BBS-V1500, BBS-V1800. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BBS-V800 | BBS-V1100 | BBS-V1300 | BBS-V1500 | BBS-V1800 |
|---|---|---|---|---|---|
| External Size(W*D*H) | 800*700*(2090~2340)mm | 1100*700*(2090~2340)mm | 1300*700*(2090~2340)mm | 1500*700*(2090~2340)mm | 1800*700*(2090~2340)mm |
| Internal Size(W*D*H) | 700*575*625mm | 1000*575*625mm | 1200*575*625mm | 1400*575*625mm | 1700*575*625mm |
| Work Surface Height | 760~1010mm | 760~1010mm | 760~1010mm | 760~1010mm | 760~1010mm |
| Max Opening | 480mm | 480mm | 480mm | 480mm | 480mm |
| Display | LCD display | LCD display | LCD display | LCD display | LCD display |
| Airflow Velocity | 80~99fpm | 80~99fpm | 80~99fpm | 80~99fpm | 80~99fpm |
| Material | Working Area: 304 stainless Steel | Working Area: 304 stainless Steel | Working Area: 304 stainless Steel | Working Area: 304 stainless Steel | Working Area: 304 stainless Steel |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | Main Body: Cold-rolled steel with anti-bacteria powder coating | Main Body: Cold-rolled steel with anti-bacteria powder coating | Main Body: Cold-rolled steel with anti-bacteria powder coating | Main Body: Cold-rolled steel with anti-bacteria powder coating |
| Material | Front Window: Motorized, 5mm toughened glass, anti-UV | Front Window: Motorized, 5mm toughened glass, anti-UV | Front Window: Motorized, 5mm toughened glass, anti-UV | Front Window: Motorized, 5mm toughened glass, anti-UV | Front Window: Motorized, 5mm toughened glass, anti-UV |
| Pre-Filter | Polyester fiber | Polyester fiber | Polyester fiber | Polyester fiber | Polyester fiber |
| HEPA Filter | One, 99.995% efficiency at 0.3μm | One, 99.995% efficiency at 0.3μm | One, 99.995% efficiency at 0.3μm | One, 99.995% efficiency at 0.3μm | One, 99.995% efficiency at 0.3μm |
| Noise | ≤68dB(A) | ≤68dB(A) | ≤68dB(A) | ≤68dB(A) | ≤68dB(A) |
| Illumination | ≥300lx | ≥300lx | ≥300lx | ≥300lx | ≥300lx |
| Waterproof Sockets | One socket(Double type), America standard, Max. Power: 500W | One socket(Double type), America standard, Max. Power: 500W | One socket(Double type), America standard, Max. Power: 500W | One socket(Double type), America standard, Max. Power: 500W | One socket(Double type), America standard, Max. Power: 500W |
| Power Supply | 103.5~126.5V, 60Hz, 10A | 103.5~126.5V, 60Hz, 10A | 103.5~126.5V, 60Hz, 10A | 103.5~126.5V, 60Hz, 10A | 103.5~126.5V, 60Hz, 10A |
| Consumption | 900W | 1110W | 1110W | 1110W | 1250W |
| UV Lamp | 20W*1 | 30W*1 | 30W*1 | 40W*1 | 40W*1 |
| LED Lamp | 10W*1 | 14W*1 | 14W*1 | 18W*1 | 22W*1 |
| Standard Accessory | Manually height adjustable base stand, LED lamp, UV lamp, Wind speed sensor, Waterproof socket | Manually height adjustable base stand, LED lamp, UV lamp, Wind speed sensor, Waterproof socket | Manually height adjustable base stand, LED lamp, UV lamp, Wind speed sensor, Waterproof socket | Manually height adjustable base stand, LED lamp, UV lamp, Wind speed sensor, Waterproof socket | Manually height adjustable base stand, LED lamp, UV lamp, Wind speed sensor, Waterproof socket |
| Package Size(W*D*H) | 945*990*1610mm | 1245*990*1610mn | 1445*990*1610mm | 1645*990*1610mm | 1945*990*1610mm |
| Gross Weight | 190kg | 230kg | 265kg | 280kg | 320kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
