Brand: BIOBASE | Category: Scientific & Laboratory Equipment

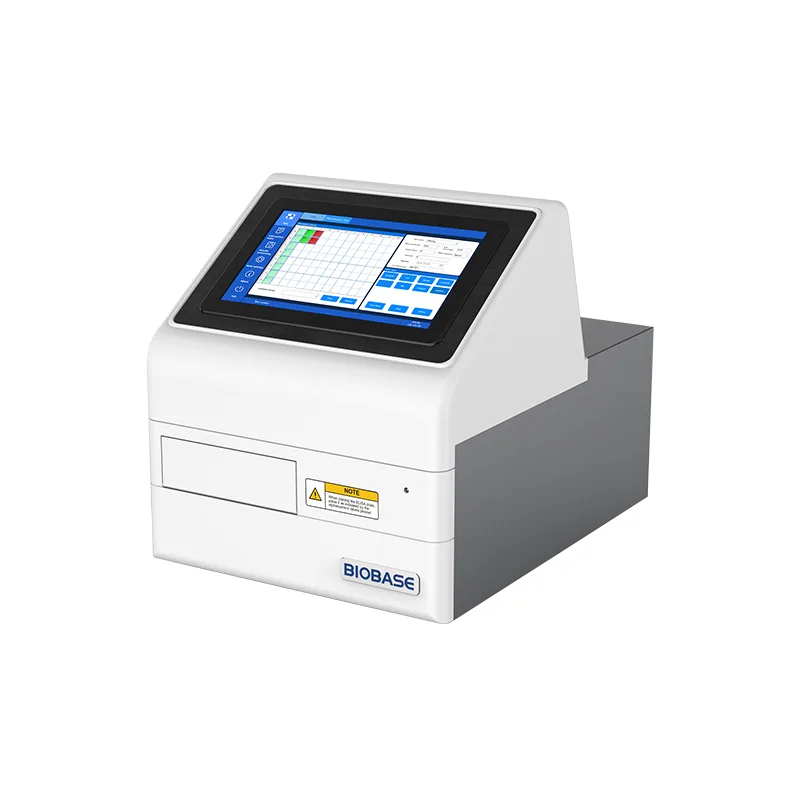

BIOBASE ELISA Microplate Reader BK-EL10A BK-EL10B BK-EL10C BK-EL10D BK-EL10DA is listed in VVON's microplate readers & washers range for Bangladesh. Published models: BK-EL10A, BK-EL10B, BK-EL10C, BK-EL10D, BK-EL10DA. Compare assay format, wavelength requirements, plate compatibility and data handling. For a quotation, send the assay type, plate format, wavelengths and daily workload. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-EL10A | BK-EL10B | BK-EL10C | BK-EL10D | BK-EL10DA |
|---|---|---|---|---|---|
| Measurement Channel | Vertical 8 optical channels | Vertical 8 optical channels | Vertical 8 optical channels | Vertical 8 optical channels | Vertical 8 optical channels |
| Plate Type | 96-well microplate | 96-well microplate | 96-well microplate | 96-well microplate | 96-well microplate |
| Wavelength Range | 400~750nm | 400~750nm | 400~750nm | 340~850nm | 340~850nm |
| Filter | Standard 4 wavelengths of 405, 450, 492, 630nm (BK-EL10A, BK-EL10B, BK-EL10C) Standard 5 wavelengths of 340, 405, 450, 492, 630nm (BK-EL10D, BK-EL10DA) Optional: Up to 10 wavelengths | Standard 4 wavelengths of 405, 450, 492, 630nm (BK-EL10A, BK-EL10B, BK-EL10C) Standard 5 wavelengths of 340, 405, 450, 492, 630nm (BK-EL10D, BK-EL10DA) Optional: Up to 10 wavelengths | Standard 4 wavelengths of 405, 450, 492, 630nm (BK-EL10A, BK-EL10B, BK-EL10C) Standard 5 wavelengths of 340, 405, 450, 492, 630nm (BK-EL10D, BK-EL10DA) Optional: Up to 10 wavelengths | Standard 4 wavelengths of 405, 450, 492, 630nm (BK-EL10A, BK-EL10B, BK-EL10C) Standard 5 wavelengths of 340, 405, 450, 492, 630nm (BK-EL10D, BK-EL10DA) Optional: Up to 10 wavelengths | Standard 4 wavelengths of 405, 450, 492, 630nm (BK-EL10A, BK-EL10B, BK-EL10C) Standard 5 wavelengths of 340, 405, 450, 492, 630nm (BK-EL10D, BK-EL10DA) Optional: Up to 10 wavelengths |
| Linear Range | 0.000~3.000Abs | 0.000~3.000Abs | 0.000~3.000Abs | 0.000~3.500Abs | 0.000~3.500Abs |
| Reading Range | 0.000~4.000Abs | 0.000~4.000Abs | 0.000~4.000Abs | 0.000~4.000Abs | 0.000~4.000Abs |
| Resolution | 0.0001Abs | 0.0001Abs | 0.0001Abs | 0.0001Abs | 0.0001Abs |
| Repeatability | CV≤0.2% | CV≤0.2% | CV≤0.2% | CV≤0.2% | CV≤0.2% |
| Stability | ≤±0.003Abs/10min | ≤±0.003Abs/10min | ≤±0.003Abs/10min | ≤±0.003Abs/10min | ≤±0.003Abs/10min |
| Sensitivity | ≥0.01L/mg | ≥0.01L/mg | ≥0.01L/mg | ≥0.01L/mg | ≥0.01L/mg |
| Channel Difference | ≤0.02Abs | ≤0.02Abs | ≤0.02Abs | ≤0.02Abs | ≤0.02Abs |
| Vibration Plate Function | 3 kinds of vibration plate function, adjustable 0~255s(BK-EL10C) 5 kinds of vibration plate function, adjustable 0~255s(BK-EL10A, BK-EL10B, BK-EL10D, BK-EL10DA) | 3 kinds of vibration plate function, adjustable 0~255s(BK-EL10C) 5 kinds of vibration plate function, adjustable 0~255s(BK-EL10A, BK-EL10B, BK-EL10D, BK-EL10DA) | 3 kinds of vibration plate function, adjustable 0~255s(BK-EL10C) 5 kinds of vibration plate function, adjustable 0~255s(BK-EL10A, BK-EL10B, BK-EL10D, BK-EL10DA) | 3 kinds of vibration plate function, adjustable 0~255s(BK-EL10C) 5 kinds of vibration plate function, adjustable 0~255s(BK-EL10A, BK-EL10B, BK-EL10D, BK-EL10DA) | 3 kinds of vibration plate function, adjustable 0~255s(BK-EL10C) 5 kinds of vibration plate function, adjustable 0~255s(BK-EL10A, BK-EL10B, BK-EL10D, BK-EL10DA) |
| Incubation Function | Time Range: 0~60min Temp. Range: RT+4°C~50°C (Only for BK-EL10D, BK-EL10DA) | Time Range: 0~60min Temp. Range: RT+4°C~50°C (Only for BK-EL10D, BK-EL10DA) | Time Range: 0~60min Temp. Range: RT+4°C~50°C (Only for BK-EL10D, BK-EL10DA) | Time Range: 0~60min Temp. Range: RT+4°C~50°C (Only for BK-EL10D, BK-EL10DA) | Time Range: 0~60min Temp. Range: RT+4°C~50°C (Only for BK-EL10D, BK-EL10DA) |
| Software (Standard) / Detection Mode | Single/double wavelength | Single/double wavelength | Single/double wavelength | Single/double wavelength | Single/double wavelength |
| Software (Standard) / Qualitative | Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions | Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions | Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions | Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions | Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions |
| Software (Standard) / Quantitative | Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis fitting algorithms | Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis fitting algorithms | Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis fitting algorithms | Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis fitting algorithms | Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis fitting algorithms |
| Others / Display | 10.1-inch color touch capacitive screen (BK-EL10A, BK-EL10D, BK-EL10DA) 10.1-inch resistive touchscreen (BK-EL10C) | 10.1-inch color touch capacitive screen (BK-EL10A, BK-EL10D, BK-EL10DA) 10.1-inch resistive touchscreen (BK-EL10C) | 10.1-inch color touch capacitive screen (BK-EL10A, BK-EL10D, BK-EL10DA) 10.1-inch resistive touchscreen (BK-EL10C) | 10.1-inch color touch capacitive screen (BK-EL10A, BK-EL10D, BK-EL10DA) 10.1-inch resistive touchscreen (BK-EL10C) | 10.1-inch color touch capacitive screen (BK-EL10A, BK-EL10D, BK-EL10DA) 10.1-inch resistive touchscreen (BK-EL10C) |
| Others / Operating Mode | Touch screen operation, equipped with capacitive stylus, EL10DAsupport for external keyboard and mouse (BK-EL10A, BK-EL10D, BK-EL10DA) | Touch screen operation, equipped with capacitive stylus, EL10DAsupport for external keyboard and mouse (BK-EL10A, BK-EL10D, BK-EL10DA) | Touch screen operation, equipped with capacitive stylus, EL10DAsupport for external keyboard and mouse (BK-EL10A, BK-EL10D, BK-EL10DA) | Touch screen operation, equipped with capacitive stylus, EL10DAsupport for external keyboard and mouse (BK-EL10A, BK-EL10D, BK-EL10DA) | Touch screen operation, equipped with capacitive stylus, EL10DAsupport for external keyboard and mouse (BK-EL10A, BK-EL10D, BK-EL10DA) |
| Others / Printer(Optional) | BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer( A4 printer can be optional) BK-EL10B: Workstation software supports normal printer(A4 printer can be optional) BK-EL10C: Workstation software supports normal printer(A4 printer and thermal printer can be optional) | BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer( A4 printer can be optional) BK-EL10B: Workstation software supports normal printer(A4 printer can be optional) BK-EL10C: Workstation software supports normal printer(A4 printer and thermal printer can be optional) | BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer( A4 printer can be optional) BK-EL10B: Workstation software supports normal printer(A4 printer can be optional) BK-EL10C: Workstation software supports normal printer(A4 printer and thermal printer can be optional) | BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer( A4 printer can be optional) BK-EL10B: Workstation software supports normal printer(A4 printer can be optional) BK-EL10C: Workstation software supports normal printer(A4 printer and thermal printer can be optional) | BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer( A4 printer can be optional) BK-EL10B: Workstation software supports normal printer(A4 printer can be optional) BK-EL10C: Workstation software supports normal printer(A4 printer and thermal printer can be optional) |
| Others / Interface | USB 2.0*4, RJ45 network port*1, RS-232*1 (BK-EL10A, BK-EL10D, BK-EL10DA) RS232 serial port (BK-EL10B) RS232*2 (standard RS232 to USB cable) (BK-EL10C) | USB 2.0*4, RJ45 network port*1, RS-232*1 (BK-EL10A, BK-EL10D, BK-EL10DA) RS232 serial port (BK-EL10B) RS232*2 (standard RS232 to USB cable) (BK-EL10C) | USB 2.0*4, RJ45 network port*1, RS-232*1 (BK-EL10A, BK-EL10D, BK-EL10DA) RS232 serial port (BK-EL10B) RS232*2 (standard RS232 to USB cable) (BK-EL10C) | USB 2.0*4, RJ45 network port*1, RS-232*1 (BK-EL10A, BK-EL10D, BK-EL10DA) RS232 serial port (BK-EL10B) RS232*2 (standard RS232 to USB cable) (BK-EL10C) | USB 2.0*4, RJ45 network port*1, RS-232*1 (BK-EL10A, BK-EL10D, BK-EL10DA) RS232 serial port (BK-EL10B) RS232*2 (standard RS232 to USB cable) (BK-EL10C) |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Instrument Size(W*D*H) | 450*320*300mm | 450*320*190mm | 450*320*300mm | 495*340*370mm | 495*340*370mm |
| Package Size(W*D*H) | 540*400*460mm | 540*400*460mm | 585*425*405mm | 610*440*475mm | 610*440*475mm |
| Net/Gross Weight | 13/15kg | 10/12kg | 11/13kg | 12/14kg | 12/14kg |
Manufacturer catalogue checked 2026-09-28.
