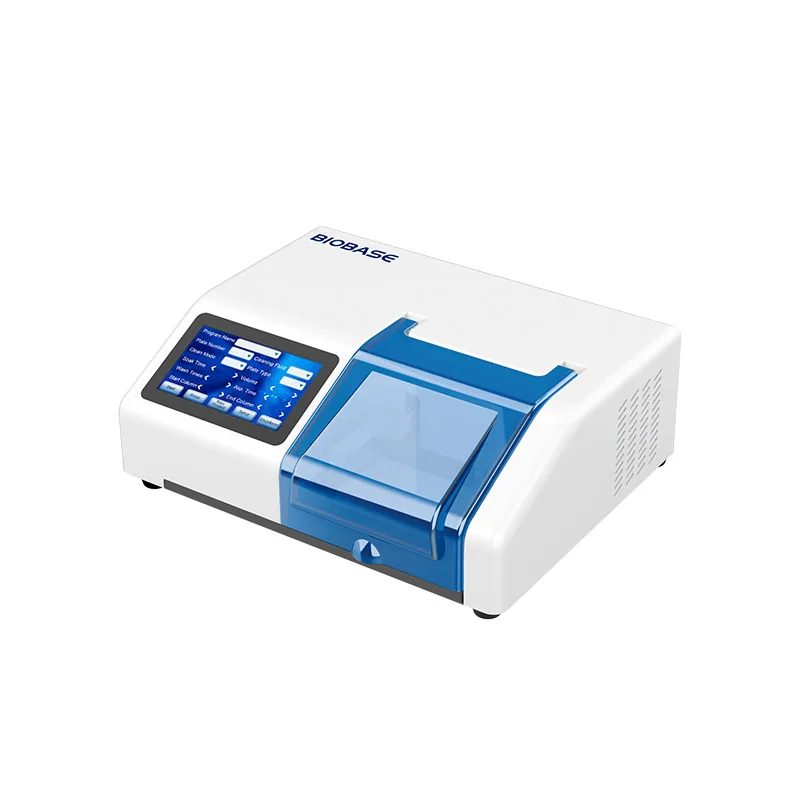

BIOBASE Elisa Microplate Washer BK-9622 BK-9613
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Elisa Microplate Washer BK-9622 BK-9613 is listed in VVON's microplate readers & washers range for Bangladesh. Published models: BK-9622, BK-9613. Compare assay format, wavelength requirements, plate compatibility and data handling. For a quotation, send the assay type, plate format, wavelengths and daily workload. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-9622 | BK-9613 |
|---|---|---|
| Cleaning Head | 8 channels and 12 channels | 96 pins, single row controllable |
| Microplate Types | Four kinds, flat bottom, U bottom, V bottom, round bottom | Four kinds, flat bottom, U bottom, V bottom, round bottom |
| Average Residue | <1μl(per hole) | <0.7μl(per hole) |
| Liquid Suction Time | 0.1~999.9 seconds adjustable, with an interval of 0.1 seconds | 0.1~999.9 seconds adjustable, with an interval of 0.1 seconds |
| Line Flush Time | 1~999 seconds, adjustable | 1~999 seconds, adjustable |
| Washing Programs | Up to 200 programs | Up to 200 programs |
| Display | 7-inch touch display | 7-inch touch display |
| Standard Bottles | 5pcs: 1.5L, 1pc; 4L, 4pcs | 5pcs: 1.5L, 1pc; 4L, 4pcs |
| Liquid Injection Channels | 3 (2 types of lotion and 1 type of distilled water) | 3 (2 types of lotion and 1 type of distilled water) |
| Cleaning Needle Position | 6 types (horizontal, left, middle, right, bottom, hole spacing) | 6 types (horizontal, left, middle, right, bottom, hole spacing) |
| Consumption | 80W | 350W |
| Power Supply | AC220V±10%, 50/60Hz; AC110V±10%, 60Hz | AC220V±10%, 50/60Hz; AC110V±10%, 60Hz |
| Packing Size(W*D*H) | 720*480*400mm | 740*675*562mm |
| Gross Weight | 20kg | 42kg |
Manufacturer catalogue checked 2026-09-28.
