Brand: BIOBASE | Category: Scientific & Laboratory Equipment

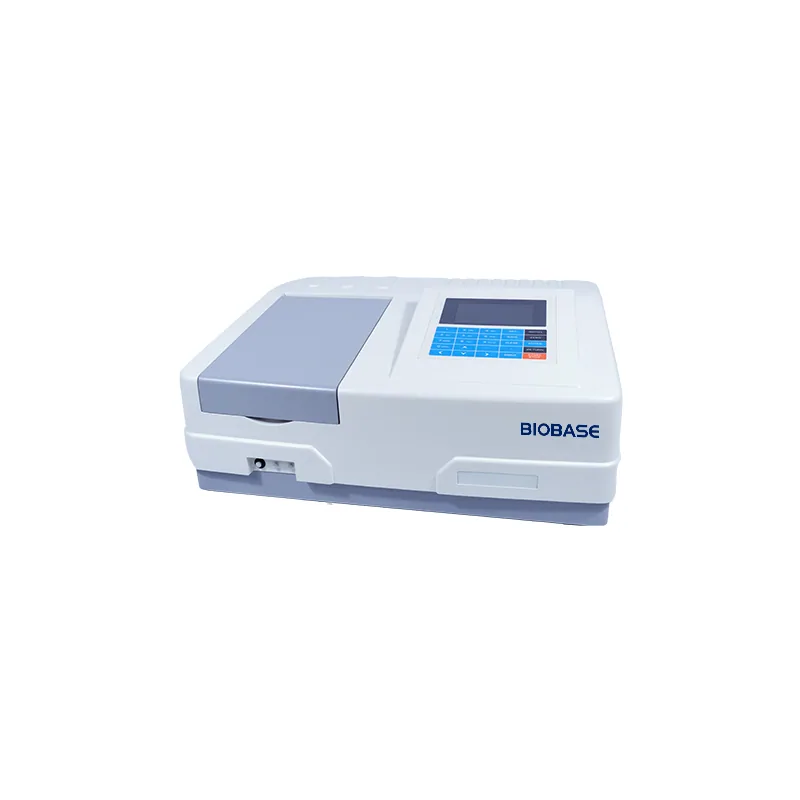

BIOBASE Double Beam Scanning UV/VIS Spectrophotometer BK-D560 BK-D580 BK-D590 is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: BK-D560, BK-D580, BK-D590. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-D560 | BK-D580 | BK-D590 |
|---|---|---|---|
| Optical System | Double Beam, Grating 1200 lines/mm | Double Beam, Grating 1200 lines/mm | Double Beam, Grating 1200 lines/mm |
| Wavelength Range | 190~1100nm | 190~1100nm | 190~1100nm |
| Spectral Range | 1.8nm | 1nm | 0.5, 1, 2, 4, 5nm |
| Wavelength Accuracy | ±0.3nm | ±0.3nm | ±0.3nm |
| Wavelength Repeatability | ≤0.2nm | ≤0.2nm | ≤0.2nm |
| Photometric Accuracy | ±0.002A(0~0.5Abs), ±0.004A(0.5~1.0Abs), ±0.3%T(0~100%T) | ±0.002A(0~0.5Abs), ±0.004A(0.5~1.0Abs), ±0.3%T(0~100%T) | ±0.002A(0~0.5Abs), ±0.004A(0.5~1.0Abs), ±0.3%T(0~100%T) |
| Photometric Repeatability | 0.001Abs(0~0.5Abs), 0.002Abs(0.5~1.0Abs), ≤0.1%T(0~100%T) | 0.001Abs(0~0.5Abs), 0.002Abs(0.5~1.0Abs), ≤0.1%T(0~100%T) | 0.001Abs(0~0.5Abs), 0.002Abs(0.5~1.0Abs), ≤0.1%T(0~100%T) |
| Stray Light | ≤0.03T@360nm; 220nm | ≤0.03T@360nm; 220nm | ≤0.03T@360nm; 220nm |
| Stability | ±0.0003A/h@500nm | ±0.0003A/h@500nm | ±0.0003A/h@500nm |
| Baseline Flatness | ±0.0005A | ±0.0005A | ±0.0005A |
| Noise | ±0.0002Abs | ±0.0002Abs | ±0.0002Abs |
| Display | 65 thousand true color 5.1-inch TFT LCD(480*800) | 65 thousand true color 5.1-inch TFT LCD(480*800) | 65 thousand true color 5.1-inch TFT LCD(480*800) |
| Photometric Mode | T, A, C, E | T, A, C, E | T, A, C, E |
| Photometric Range | 0~200%T, -0.301~3.0A | 0~200%T, -0.301~3.0A | 0~200%T, -0.301~3.0A |
| Detector | Silicon Photodiode | Silicon Photodiode | Silicon Photodiode |
| Light Source | Deuterium Lamp, Tungsten Lamp | Deuterium Lamp, Tungsten Lamp | Deuterium Lamp, Tungsten Lamp |
| Input | Membrane Keypad | Membrane Keypad | Membrane Keypad |
| Output | USB-A*2 print and data output USB-B connect PC | USB-A*2 print and data output USB-B connect PC | USB-A*2 print and data output USB-B connect PC |
| Standard Accessories | Scanning software, 1cm standard single slot cuvette holder, 1cm glass cuvette*4, 1cm quartz cuvette*2 | Scanning software, 1cm standard single slot cuvette holder, 1cm glass cuvette*4, 1cm quartz cuvette*2 | Scanning software, 1cm standard single slot cuvette holder, 1cm glass cuvette*4, 1cm quartz cuvette*2 |
| Optional Accessories | 1cm standard single slot cuvette holder, long optical path cuvette holder, cuvette, microcuvette, test tube type absorber rack, solid sample holder, deuterium lamp, tungsten lamp, quadruple cuvette holder, printer, four-slot water bath type constant temperature absorptionpool, X-Y Adjustable Micro Absorption Pool, single bath type constant temperature absorption pool, program-controlled thermostatic absorption pool seat, 8 racks, reflection accessories | 1cm standard single slot cuvette holder, long optical path cuvette holder, cuvette, microcuvette, test tube type absorber rack, solid sample holder, deuterium lamp, tungsten lamp, quadruple cuvette holder, printer, four-slot water bath type constant temperature absorptionpool, X-Y Adjustable Micro Absorption Pool, single bath type constant temperature absorption pool, program-controlled thermostatic absorption pool seat, 8 racks, reflection accessories | 1cm standard single slot cuvette holder, long optical path cuvette holder, cuvette, microcuvette, test tube type absorber rack, solid sample holder, deuterium lamp, tungsten lamp, quadruple cuvette holder, printer, four-slot water bath type constant temperature absorptionpool, X-Y Adjustable Micro Absorption Pool, single bath type constant temperature absorption pool, program-controlled thermostatic absorption pool seat, 8 racks, reflection accessories |
| Power Supply | AC85~265V, 50/60Hz | AC85~265V, 50/60Hz | AC85~265V, 50/60Hz |
| Package Size(W*D*H) | 740*570*440mm | 740*570*440mm | 740*570*440mm |
| Gross Weight | 25kg | 25kg | 25kg |
Manufacturer catalogue checked 2026-09-28.
