Brand: BIOBASE | Category: Scientific & Laboratory Equipment

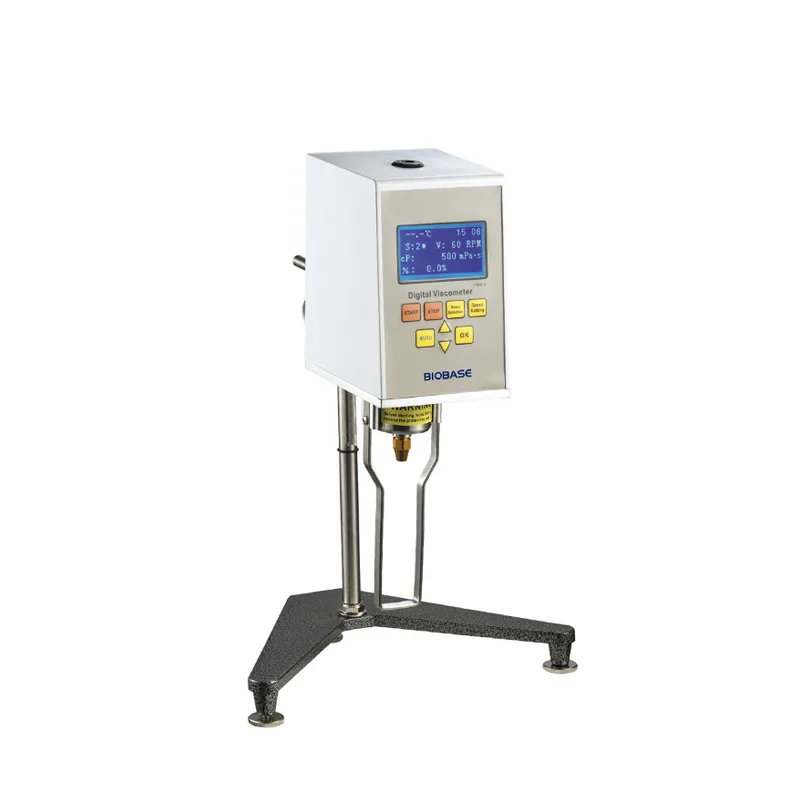

BIOBASE Digital Viscometer BDV-S BDV-N Seires is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: BDV-1S, BDV-9S, BDV-5S, BDV-8S, BDV-1N, BDV-2N. Compare the remaining models in the specification tables. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDV-1S | BDV-9S | BDV-5S | BDV-8S | BDV-1N | BDV-2N | BDV-3N | BDV-4N |
|---|---|---|---|---|---|---|---|---|
| Measured Range(mPa.s) | 1~100,000 | 1~6,000,000 | 20~100,000 | 20~2,000,000 | 20~600,000 | 12~6,000,000 | 160~80,000,000 | 50~10,000,000 |
| Rotation Speed(rpm) | 6, 12, 30, 60 | 0.1, 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 | 6, 12, 30, 60 | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 | 1~60 | 0.1~99.9 | 0.1~99.9 | 0.1~200 |
| Number of Spindle | 4 types(L1~L4) | 4 types(L1~L4) | 4 types(L1~L4) | 4 types(L1~L4) | 4 types(L1~L4) | 4 types(L1~L4) | 4 types(L1~L4) | 4 types(21.27.28.29) |
| Measurement Accuracy | ±5%(FS)(Newtonian Fluid) | ±3(FS)(Newtonian Fluid) | ±1%(FS)(Newtonian Fluid) | ±1%(FS)(Newtonian Fluid) | ±1%(FS)(Newtonian Fluid) | ±1%(FS)(Newtonian Fluid) | ±1%(FS)(Newtonian Fluid) | ±1%(FS)(Newtonian Fluid) |
| Repeatability | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) | ±0.5%(FS)(Newtonian Fluid) |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Standard Accessory | / | / | RS232 standard output interface | RS232 standard output interface | RTD temperature probe RS232 standard output interface | RTD temperature probe RS232 standard output interface | RTD temperature probe RS232 standard output interface | RTD temperature probe RS232 standard output interface |
| Optional Accessory | / | RTD temperature probe | RTD temperature probe, Specially used printer | RTD temperature probe, Specially used printer | Specially used printer | Specially used printer | Specially used printer | Specially used printer |
| LO Spindle is for Option Measured Range(mPa.s) | 1~10 | 1~10 | 1~100 | 1~2000 | 1~600 | 0.6~6000 | 6~6000 | 3~6000 |
| Package Size(W*D*H) | 475*220*375mm | 475*220*375mm | 420*350*380mm | 420*350*380mm | 420*350*380mm | 420*350*380mm | 420*350*380mm | 410*350*560mm |
| Gross Weight | 7.5kg | 7.5kg | 8.5kg | 8.5kg | 8.5kg | 8.5kg | 8.5kg | 10.5kg |
Manufacturer catalogue checked 2026-09-28.
