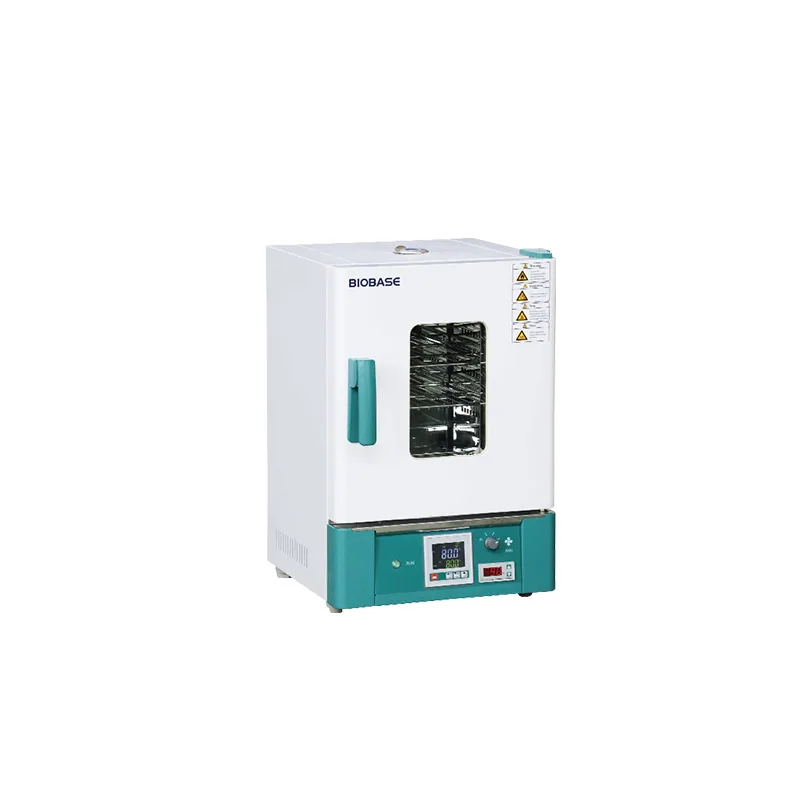

BIOBASE Constant Temperature Incubator
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Constant Temperature Incubator is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: BJPX-H30BE, BJPX-H45BE, BJPX-H65BE, BJPX-H85BE, BJPX-H125BE, BJPX-H230BE. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-H30BE | BJPX-H45BE | BJPX-H65BE | BJPX-H85BE | BJPX-H125BE | BJPX-H230BE |
|---|---|---|---|---|---|---|
| Cycle Mode | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection |
| Temp. Range | RT+5~120℃ | RT+5~120℃ | RT+5~120℃ | RT+5~120℃ | RT+5~120℃ | RT+5~120℃ |
| Temp. Resolution | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Temp. Fluctuation | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Temp. Uniformity | ±1.0℃ | ±1.0℃ | ±1.0℃ | ±1.0℃ | ±1.0℃ | ±1.0℃ |
| Volume | 30L | 45L | 65L | 85L | 125L | 230L |
| Shelf Number | 5 | 6 | 8 | 8 | 11 | 17 |
| Load Per Rack | 15kg | 15kg | 15kg | 15kg | 15kg | 15kg |
| Shelf Space | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Inner Chamber | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior |
| Insulation Layer | High quality foam board | High quality foam board | High quality foam board | High quality foam board | High quality foam board | High quality foam board |
| Heater | Stainless steel electric heating tube | Stainless steel electric heating tube | Stainless steel electric heating tube | Stainless steel electric heating tube | Stainless steel electric heating tube | Stainless steel electric heating tube |
| Exhaust Hole | ∅35mm top(with function of test hole) | ∅35mm top(with function of test hole) | ∅35mm top(with function of test hole) | ∅35mm top(with function of test hole) | ∅35mm top(with function of test hole) | ∅35mm top(with function of test hole) |
| Temp. Control Mode | Two temperature section intelligent PID | Two temperature section intelligent PID | Two temperature section intelligent PID | Two temperature section intelligent PID | Two temperature section intelligent PID | Two temperature section intelligent PID |
| Temp. Setting Mode | Touch button setting | Touch button setting | Touch button setting | Touch button setting | Touch button setting | Touch button setting |
| Temp. Display Mode | Measuring temperature: LCD upper screen; setting temperature: LCD lower row | Measuring temperature: LCD upper screen; setting temperature: LCD lower row | Measuring temperature: LCD upper screen; setting temperature: LCD lower row | Measuring temperature: LCD upper screen; setting temperature: LCD lower row | Measuring temperature: LCD upper screen; setting temperature: LCD lower row | Measuring temperature: LCD upper screen; setting temperature: LCD lower row |
| Timer | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) |
| Operation Function | Fixed temperature operation, fixed timing function, auto stop. | Fixed temperature operation, fixed timing function, auto stop. | Fixed temperature operation, fixed timing function, auto stop. | Fixed temperature operation, fixed timing function, auto stop. | Fixed temperature operation, fixed timing function, auto stop. | Fixed temperature operation, fixed timing function, auto stop. |
| Additional Function | Digital Independent temp. limiter. 4 grades 3 speed adjustable speed fan(230 without fan speed adjust) Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | Digital Independent temp. limiter. 4 grades 3 speed adjustable speed fan(230 without fan speed adjust) Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | Digital Independent temp. limiter. 4 grades 3 speed adjustable speed fan(230 without fan speed adjust) Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | Digital Independent temp. limiter. 4 grades 3 speed adjustable speed fan(230 without fan speed adjust) Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | Digital Independent temp. limiter. 4 grades 3 speed adjustable speed fan(230 without fan speed adjust) Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | Digital Independent temp. limiter. 4 grades 3 speed adjustable speed fan(230 without fan speed adjust) Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
| Sensor | PT100 | PT100 | PT100 | PT100 | PT100 | PT100 |
| Safety Device | Over temp. sound-light alarm, Digital Independent temp. limiter | Over temp. sound-light alarm, Digital Independent temp. limiter | Over temp. sound-light alarm, Digital Independent temp. limiter | Over temp. sound-light alarm, Digital Independent temp. limiter | Over temp. sound-light alarm, Digital Independent temp. limiter | Over temp. sound-light alarm, Digital Independent temp. limiter |
| Optional Accessories | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller |
| Power Supply | 220V/1.8A | 220V/2.3A | 220V/3.2A | 220V/4.1A | 22V/5A | 220V/6.8A |
| Power | 0.4KW | 0.5KW | 0.7KW | 0.9KW | 1.1KW | 1.5KW |
| Internal Size(W*L*H)mm | 310*310*310 | 350*350*350 | 400*360*450 | 450*420*450 | 500*450*550 | 600*500*750 |
| External Size(W*L*H)mm | 460*510*695 | 500*550*735 | 550*550*840 | 590*610*830 | 636*680*915 | 735*835*1115 |
| Package Size(W*L*H)mm | 540*575*855 | 580*615*895 | 635*625*995 | 680*685*1000 | 710*730*1100 | 857*885*1287 |
| NW/GW(kg) | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 |
Manufacturer catalogue checked 2026-09-28.
