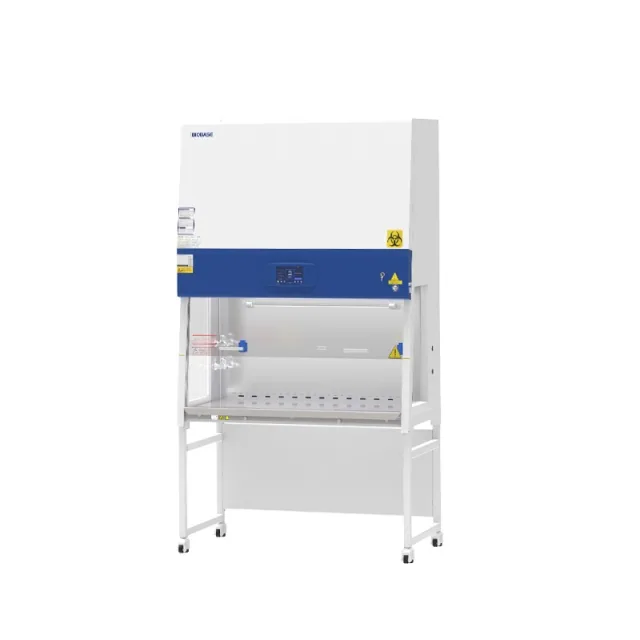

BIOBASE Class II Biosafety Cabinet Class II Type A2 BSC-4FA2 BSC-3FA2-GL BSC-3FA2-NA BSC-4FA2-GL BSC-4FA2-NA BSC-6FA2-GL BSC-6FA2-NA
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Class II Biosafety Cabinet Class II Type A2 BSC-4FA2 BSC-3FA2-GL BSC-3FA2-NA BSC-4FA2-GL BSC-4FA2-NA BSC-6FA2-GL BSC-6FA2-NA is listed in VVON's biosafety cabinets range for Bangladesh. Published models: BSC-4FA2, BSC-3FA2-GL BSC-3FA2-NA, BSC-4FA2-GL BSC-4FA2-NA, BSC-6FA2-GL BSC-6FA2-NA. Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BSC-4FA2 | BSC-3FA2-GL BSC-3FA2-NA | BSC-4FA2-GL BSC-4FA2-NA | BSC-6FA2-GL BSC-6FA2-NA |
|---|---|---|---|---|
| External Size(W*D*H) | 1383*775*2220mm | 1087*775*2220mm | 1383*775*2220mm | 1873*775*2240mm |
| Internal Size(W*D*H) | 1210*600*660mm | 910*600*660mm | 1210*600*660mm | 1700*600*660mm |
| Work Surface Height | 762mm | 762mm | 762mm | 782mm |
| Max Opening | 470mm | 470mm | 470mm | 470mm |
| Tested Opening | Safety height 200mm(8") | Safety height 254mm(10") | Safety height 254mm(10") | Safety height 254mm(10") |
| Airflow Volume / Inflow | 462m³/h(272cfm) | 445m³/h(259cfm) | 587m³/h(346cfm) | 824m³/h(485cfm) |
| Airflow Volume / Down Flow | 65%: 863m³/h(507cfm) | 60%: 649m³/h(382cfm) | 60%: 863m³/h(507cfm) | 60%: 1212m³/h(713cfm) |
| Airflow Volume / Exhaust | 35%: 462m³/h(272cfm) | 40%: 445m³/h(259cfm) | 40%: 587m³/h(346cfm) | 40%: 824m³/h(485cfm) |
| Front Window | Motorized. Two-layer laminated toughened glass≥6mm. Anti UV | Motorized. Two-layer laminated toughened glass≥6mm. Anti UV | Motorized. Two-layer laminated toughened glass≥6mm. Anti UV | Motorized. Two-layer laminated toughened glass≥6mm. Anti UV |
| ULPA Filter | Two, 99.995% efficiency at 0.12μm, filter life indicator | Two, 99.995% efficiency at 0.12μm, filter life indicator | Two, 99.995% efficiency at 0.12μm, filter life indicator | Two, 99.995% efficiency at 0.12μm, filter life indicator |
| Filter Guard Type | Aluminum alloy frame, glass fiber fiter paper | Aluminum alloy frame, glass fiber fiter paper | Aluminum alloy frame, glass fiber fiter paper | Aluminum alloy frame, glass fiber fiter paper |
| Noise | NSF 49≤67dB | NSF 49≤67dB | NSF 49≤67dB | NSF 49≤67dB |
| Illumination | ≥1000Lux | ≥1000Lux | ≥1000Lux | ≥1000Lux |
| Display | Color touch screen | Color touch screen | Color touch screen | Color touch screen |
| Waterproof Socket | Two, total consumption: ≤500W | Two, total consumption: ≤500W | Two, total consumption: ≤500W | Two, total consumption: ≤500W |
| Tap | Water tap*1, Gas tap *1 | Water tap*1, Gas tap *1 | Water tap*1, Gas tap *1 | Water tap*1, Gas tap *1 |
| Ground Resistance | ≤ 0.10Ω | ≤ 0.10Ω | ≤ 0.10Ω | ≤ 0.10Ω |
| Power Supply | AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 | AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 | AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 | AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 |
| Consumption | 500W | 400W | 500W | 700W |
| Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm |
| Motor | EC motor, 115V&230V acceptable, speed adjustable, high efficiency and low power consumption | EC motor, 115V&230V acceptable, speed adjustable, high efficiency and low power consumption | EC motor, 115V&230V acceptable, speed adjustable, high efficiency and low power consumption | EC motor, 115V&230V acceptable, speed adjustable, high efficiency and low power consumption |
| Material | Working area: 304 stainless steel; Frame and decorative plate: cold-rolled steel with anti-bacteria power coating | Working area: 304 stainless steel; Frame and decorative plate: cold-rolled steel with anti-bacteria power coating | Working area: 304 stainless steel; Frame and decorative plate: cold-rolled steel with anti-bacteria power coating | Working area: 304 stainless steel; Frame and decorative plate: cold-rolled steel with anti-bacteria power coating |
| UV Lamp | 30W | 20W | 30W | 40W |
| UV Lamp | Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination |
| Illuminating Lamp | 20W*2 | 10W*2 | 20W*2 | 23W*2 |
| Illuminating Lamp | LED lamp | LED lamp | LED lamp | LED lamp |
| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control |
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand |
| Package Size(W*D*H) | 1540*1080*1900mm | 1240*1060*1900mm | 1540*1080*1900mm | 2020*1080*1900mm |
| Gross Weight | 330kg | 280kg | 330kg | 410kg |
Manufacturer catalogue checked 2026-09-28.
