Brand: BIOBASE | Category: Scientific & Laboratory Equipment

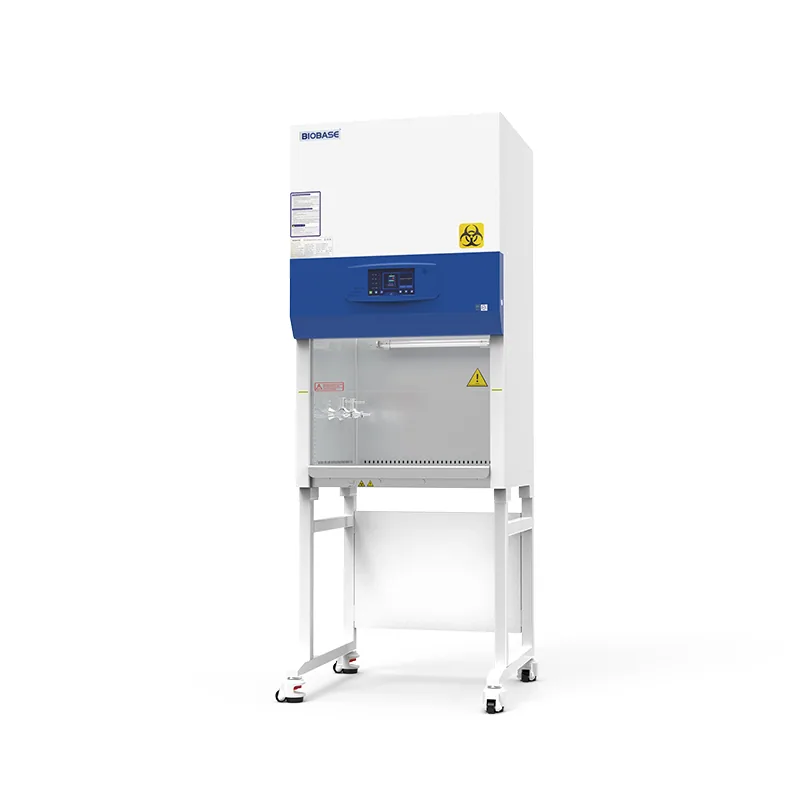

BIOBASE Class II A2 Biological Safety Cabinet BSC-2FA2 is listed in VVON's biosafety cabinets range for Bangladesh. Published models: BSC-2FA2. Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BSC-2FA2 |
|---|---|
| External Size（W*D*H） | 700*650*1920mm |
| Internal Size（W*D*H） | 600*500*540mm |
| Work Surface Hight | 750mm |
| Max Opening | 370mm |
| Tested Opening | Safety height 254mm（10"） |
| Inflow | 290m³/h (170cfm） |
| Downflow | 55%: 360m³/h (211cfm） |
| Exhaust | 45%: 290m³/h (170cfm） |
| Front Window | Two-layer laminated toughened glass>6mm, Anti UV |
| ULPA Filter | ≥99.9995% efficiency at 0.12μm |
| Filter Guard Type | Aluminum alloy frame |
| Noise | NSF 49≤67 dB |
| Illumination | ≥1000Lux |
| Display | Capacitive touch screen |
| Waterproof Socket | Two, Total consumption≤500W |
| Ground Resistance | ≤0.1Ω |
| Power Supply | AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 |
| Consumption | ≤500W |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
| Motor | One EC fan, 115V＆230V acceptable, Speed adjustable, High efficiency and low power consumption |
| Material | Working area: 304 stainless steel |
| UV Lamp | Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating |
| LED Lamp | 15W |
| Standard Accessory | 10W*2 |
| Optional Accessory | LED Lamp*2, UV lamp, Base stand, Drain valve, Waterproof sockets |
| Net Weight | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Remote control, SS water tap*1& gas tap*1 |
| Package Size（W*D*H） | 150kg |
| Gross Weight | Carton: 800*850*1350mm |
| External Size（W*D*H） | 170kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
