Brand: BIOBASE | Category: Scientific & Laboratory Equipment

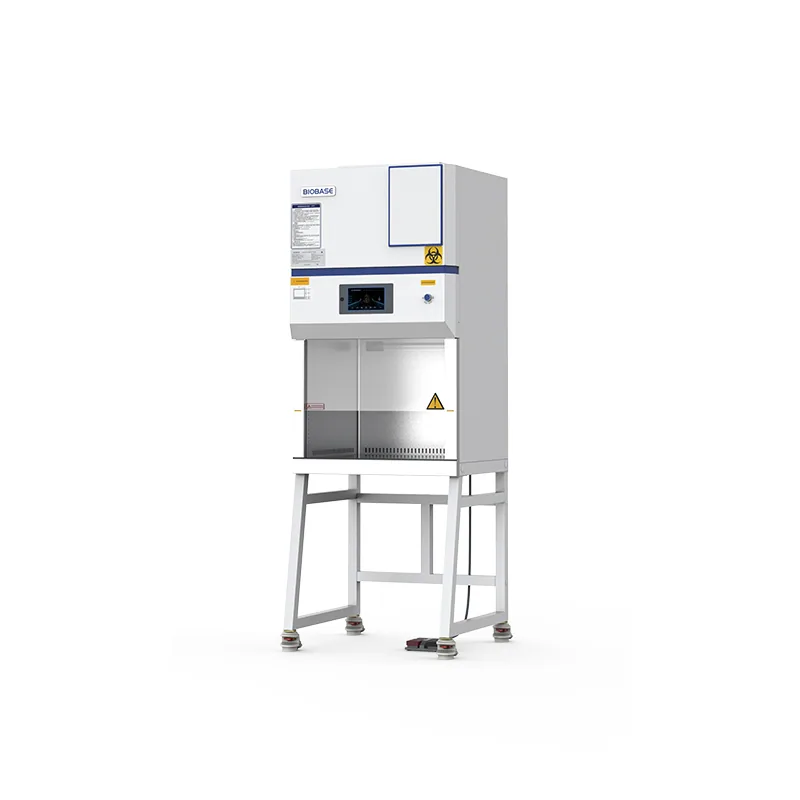

BIOBASE Class II Biological Safety Cabinet 11231 BBC 86-Pro is listed in VVON's biosafety cabinets range for Bangladesh. Published models: 11231 BBC 86-Pro. Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | 11231 BBC 86-Pro |
|---|---|
| External Size(W*D*H) | 700*640*1920mm |
| Internal Size(W*D*H) | 600*500*530mm |
| Tested Opening | Safety height 200mm(8") |
| Max Opening | 370mm(15") |
| Inflow Velocity | 0.53±0.025m/s |
| Down Flow Velocity | 0.33±0.025m/s |
| ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator |
| Front Window | Double-sided laminated glass |
| Noise | ≤67dB |
| UV Lamp | 15W*1 UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination |
| LED Lamp | 8W*2 |
| Illumination | ≥1000Lux |
| Consumption | 500W |
| Socket | Two, total load of two sockets: 500W |
| Display | 7 inch large touch screen |
| Control System | Microprocessor |
| Airflow System | 70% air recirculation, 30% air exhaust |
| Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity, high filter pressure alarm |
| Material | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating |
| Work Surface Height | 750mm with optional base stand |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Standard Accessory | LED lamp*2, UV lamp*2, remote control, waterproof sockets*2, Base stand, handle*4, Universal caster with brake and leveling feet，485 data transfer function, supporting data monitoring and export. |
| Optional Accessory | 1. SS Water tap*1, SS Gas tap*1. 2. Wind speed self adjustment function, real-time compensation for wind speed through sensor monitoring. 3. APP networking remote control. 4. LED fluorescent lamp brightness adjustment function. 5. Base bracket with manual or electric height adjustment function. 6. Manual lifting front window function. 7. Manual automatic lifting front window function. 8. EC fan. |
| Packing Size(Without Base Stand) | Carton: 820*760*1425mm Wood: 850*800*1415mm |
| Gross Weight(Without Base Stand) | Carton: 120kg Wood: 140kg |
| Packing Size(With Base Stand) | Carton: 880*817*1420mm Wood: 960*850*1415mm |
| Gross Weight(With Base Stand) | Carton: 140kg Wood: 160kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
