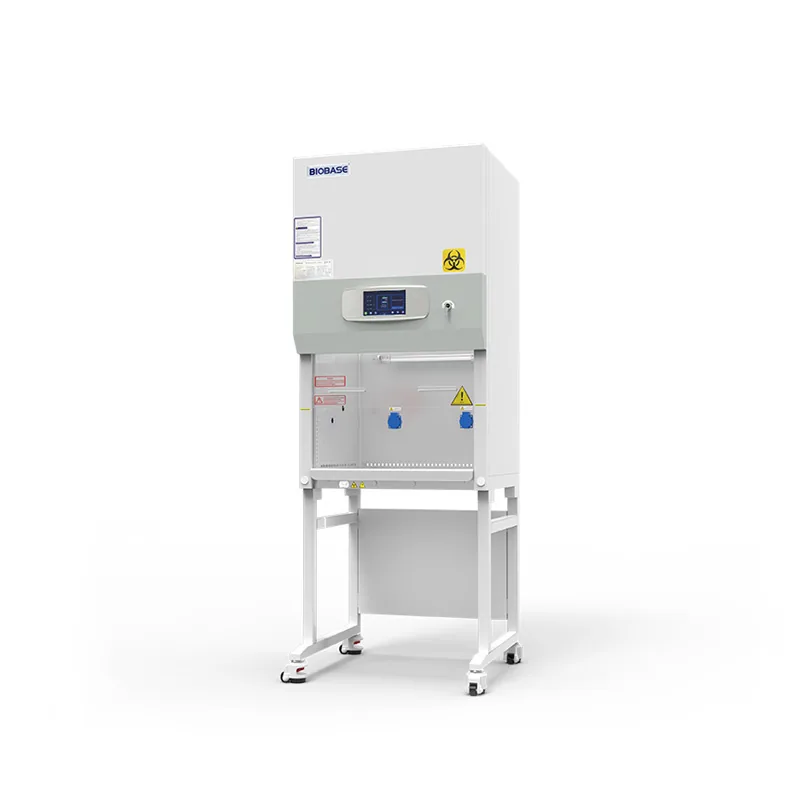

BIOBASE Class II A2 Biological Safety Cabinet EA2-2F
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Class II A2 Biological Safety Cabinet EA2-2F is listed in VVON's biosafety cabinets range for Bangladesh. Published models: EA2-2F. Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | EA2-2F |
|---|---|
| External Size(W*D*H) | 700*700*2000mm |
| Internal Size(W*D*H) | 600*500*540mm |
| Tested Opening | Safety height 200mm |
| Max Opening | 360mm |
| Inflow Velocity | 0.53±0.025m/s |
| Downflow Velocity | 0.33±0.025m/s |
| ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator |
| Front Window | Manual and electric. Tempered glass≥5mm. Anti UV. |
| Noise | ≤65dB |
| UV Lamp | 15W*1 UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination |
| LED Lamp | 8W*2 |
| Illumination | ≥1000Lux |
| Consumption | ≤500W |
| Socket | Two, total consumption: 500W |
| Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. |
| Control System | 70% air recirculation, 30% air exhaust |
| Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity, High filter pressure, abnormal power failure |
| Material | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating |
| Work Surface Height | 750mm with base stand |
| Power Supply | AC220V, 50/60Hz; 110V, 60Hz |
| Standard Accessory | Cabinet*1, Base stand*1, LED lamp*2, UV lamp*2, Drain ball valve*1, Waterproof Socket*2, EC fan, Foot switch, Remote control |
| Optional Accessory | Water and gas tap, Electric height adjustable base stand, Armrest |
| Package Size(W*D*H) | Carton: 820*880*1470mm |
| Gross Weight | 172kg |
Manufacturer catalogue checked 2026-09-28.
