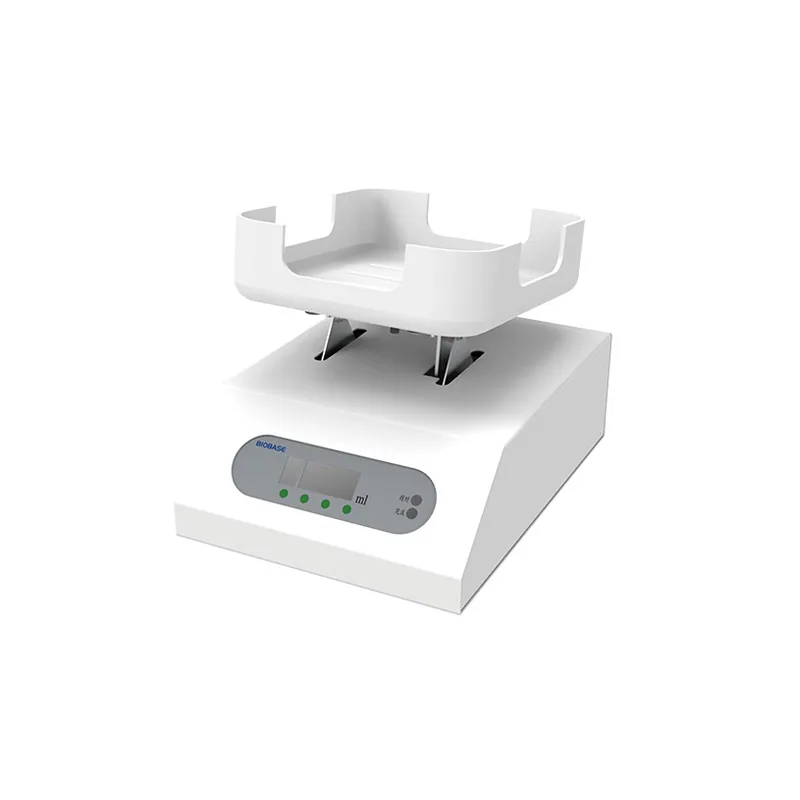

BIOBASE Blood Collection Monitor BCM-4 BCM-12Z
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Blood Collection Monitor BCM-4 BCM-12Z is listed in VVON's blood bank & transfusion equipment range for Bangladesh. Published models: BCM-4, BCM-12Z. Check component type, temperature requirements, monitoring and processing capacity. For a quotation, send the blood-component type, capacity, temperature monitoring and backup requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BCM-4 | BCM-12Z |
|---|---|---|
| Measuring Range | 0~1200ml | 0~1200ml |
| Display | LED | 3.5-inch color LCD touch screen |
| Resolution | 1ml | 1ml |
| Liquid Proportion | 1.05g/ml | 1.05g/ml |
| Collection Speed | 0.5~3ml/s | 0.5~3ml/s |
| Static Error | ±2g | ±2g |
| Swing Angle | 13±2° | 13±2° |
| Swing Frequency | 30±2r/min | 30±2r/min |
| Alarm | Collection finish, Automatic sound and light dual alarm | Collection finish, Automatic sound and light dual alarm, Clamp obstruction |
| Obstruct Pipeline | / | Outer diameter φ3~φ6mm, wall thickness: 0.5mm |
| Obstruct Resistance | / | ＜14N |
| Ambient Temperature | 5℃~40℃ | 5℃~40℃ |
| Battery | Lithium battery, 12V, 5000mAh, 3 hours of battery life | / |
| Consumption | 17W | 30W |
| Power Supply | 100~240V, 50/60Hz | 100~240V, 50/60Hz |
| External Size(W*D*H) | 190*240*165mm | 285*240*190mm |
| Net Weight | 2.5kg | 3.5kg |
| Packing Size(W*D*H) | 380*260*290mm | 380*260*290mm |
| Gross Weight | 3.5kg | 5.5kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
