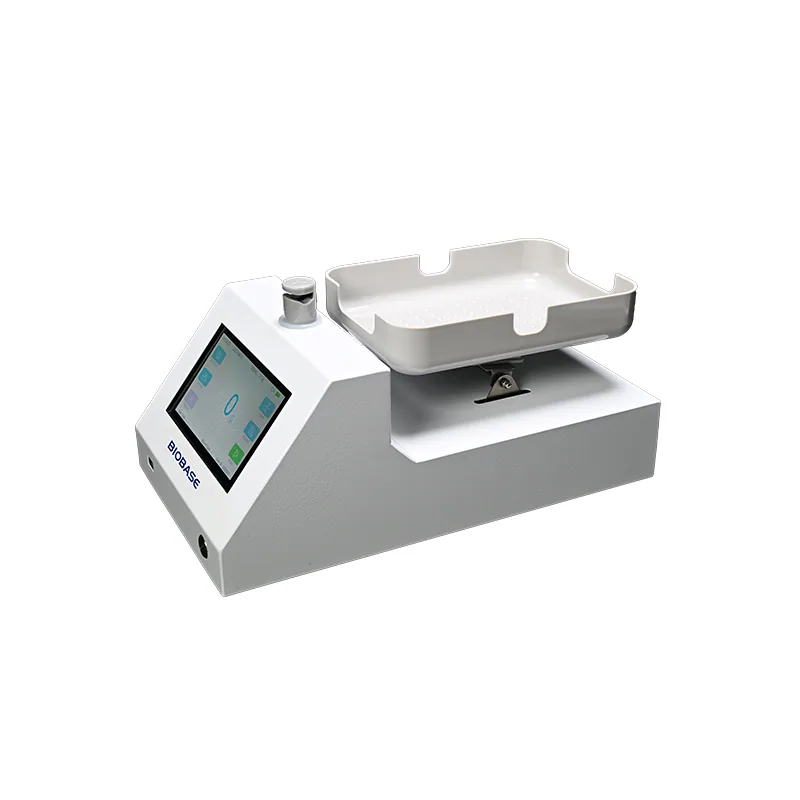

BIOBASE Blood Collection Monitor BCM-12C is listed in VVON's blood bank & transfusion equipment range for Bangladesh. Published models: BCM-12C. Check component type, temperature requirements, monitoring and processing capacity. For a quotation, send the blood-component type, capacity, temperature monitoring and backup requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BCM-12C |
|---|---|
| Measuring Range | 20~1200ml |
| Preset 4 Gears Collection Presets | 100ml |
| Preset 4 Gears Collection Presets | 200ml |
| Preset 4 Gears Collection Presets | 300ml |
| Preset 4 Gears Collection Presets | 400ml |
| Display | 7.0-inch HD IPS touch screen |
| Resolution | 1ml |
| Liquid Proportion | 1.05g/ml |
| Collection Speed | 0.5~3ml/s |
| Static Error | ±1％ |
| Swing Angle | 13±2° |
| Swing Frequency | 30~32r/min |
| Alarm | Buzzer alarm sound |
| Obstruct Pipeline | Outer diameter φ3~φ6mm, wall thickness: 0.5mm |
| Obstruct Resistance | ≥14N |
| Ambient Temperature | 0~40℃, relative humidity less than 85% |
| Consumption | 50W |
| Power Supply | AC110/220V±10%, 50/60Hz |
| External Size(W*D*H) | 380*220*150mm |
| Net Weight | 5.2kg |
| Packing Size(W*D*H) | 470*300*250mm |
| Gross Weight | 7kg |
Manufacturer catalogue checked 2026-09-28.
