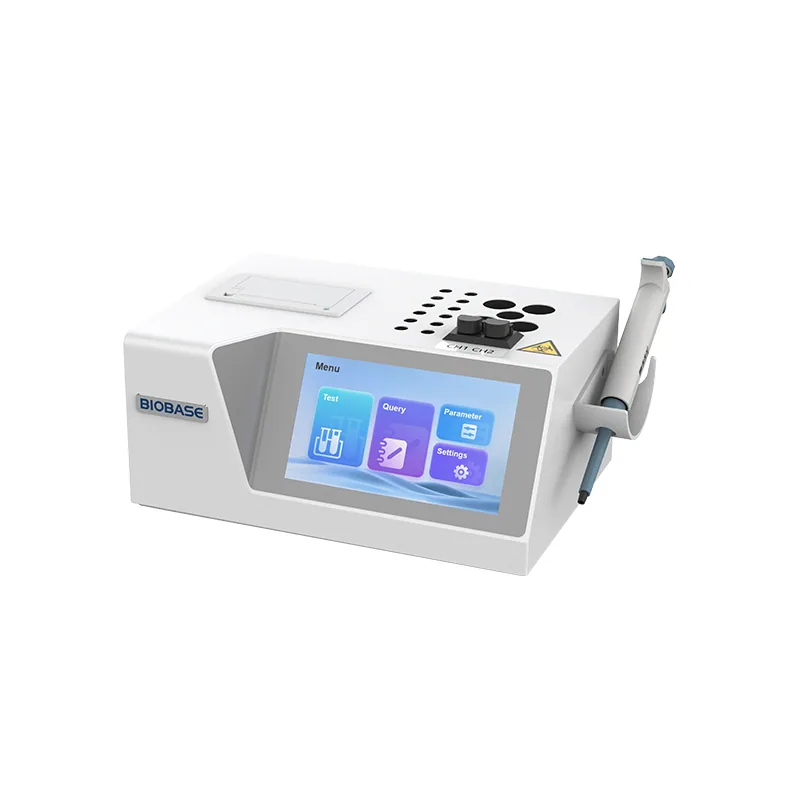

BIOBASE Blood Coagulation Analyzer BK-CA02 BK-CA04
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Blood Coagulation Analyzer BK-CA02 BK-CA04 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BK-CA02, BK-CA04. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-CA02 | BK-CA04 |
|---|---|---|
| Test Principle | Optical colorimetry | Optical colorimetry |
| Test Items | PT, APTT, TT, FIB | PT, APTT, TT, FIB |
| Test Channel | 2(can test different projects at the same time) | 4(can test different projects at the same time) |
| Wavelength | 470nm | 470nm |
| Detection Time | Normal sample detection time is 20 to 40 seconds, and can be set arbitrarily from 20 to 99 seconds | Normal sample detection time is 20 to 40 seconds, and can be set arbitrarily from 20 to 99 seconds |
| Sample Incubation Position | 12 | 24 |
| Reagent Incubation Position | 5 | 6 |
| Detection Position Temperature | 37.0±1.0°C | 37.0±1.0°C |
| Incubation Position Temperature | 37.0±1.0°C | 37.0±1.0°C |
| Incubation Time | 1~999s | 1~999s |
| Reaction Time | 1~99s | 1~99s |
| Reagent Dosage | Minimum dosage 20μl | Minimum dosage 20μl |
| Sample Volume | 20μl~40μl | 20μl~40μl |
| Display | 7-inch high-definition color touch screen | 7-inch high-definition color touch screen |
| Storage | 200,000 results storage, automatically save measurement data when power off | 200,000 results storage, automatically save measurement data when power off |
| Communication Interface | RS232 serial interface, support LIS system | RS232 serial interface, support LIS system |
| Printer | Built-in thermal printer | Built-in thermal printer |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Consumption | 70VA | 70VA |
| Ambient Temperature | 10℃~30℃ | 10℃~30℃ |
| Relative Humidity | ≤80% | ≤80% |
| Atmospheric Pressure | 86kPa~106kPa | 86kPa~106kPa |
| External Size(W*D*H) | 360*210*120mm | 390*250*135mm |
| Net Weight | 3.5kg | 4.96kg |
| Package Size(W*D*H) | 376*246*316mm | 445*305*265mm |
| Gross Weight | 5kg | 7kg |
Manufacturer catalogue checked 2026-09-28.
