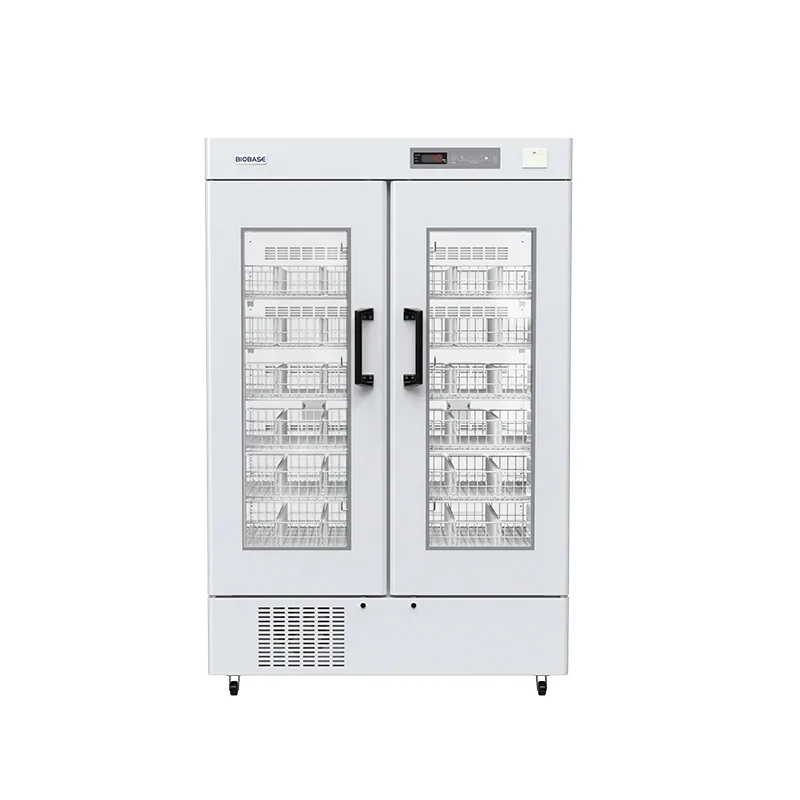

BIOBASE Blood Bank Refrigerator (Double Door) BBR-4V626 BBR-4V966
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Blood Bank Refrigerator (Double Door) BBR-4V626 BBR-4V966 is listed in VVON's blood bank & transfusion equipment range for Bangladesh. Published models: BBR-4V626, BBR-4V966. Check component type, temperature requirements, monitoring and processing capacity. For a quotation, send the blood-component type, capacity, temperature monitoring and backup requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BBR-4V626 | BBR-4V966 |
|---|---|---|
| Capacity | 626L | 966L |
| Temp. Range | 2~6℃ | 2~6℃ |
| Temp. Accuracy | 0.1℃ | 0.1℃ |
| Temp. Uniformity | ≤1.5℃ | ≤1.5℃ |
| Temp. Stability | ≤2℃ | ≤2℃ |
| Recovery Time(Recover to 6℃ in an ambient temp. of 32℃) | ≤15min | ≤15min |
| Cooling Time(Cool down to 5℃ in an ambient temp. of 32℃) | ≤100min | ≤100min |
| Control System | Microprocessor control | Microprocessor control |
| Display | LED display | LED display |
| Alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, battery status alarm, door ajar alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, battery status alarm, door ajar alarm |
| Refrigeration Type | Air-cooling | Air-cooling |
| Refrigerant | R134a/240g | R134a/240g |
| Compressor | International famous compressor/1 | International famous compressor/1 |
| Condenser&Evaporator | Copper tube aluminum fin type | Copper tube aluminum fin type |
| Defrost | Automatic defrost | Automatic defrost |
| Construction | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam |
| Material / Internal Material | Stainless steel | Stainless steel |
| Material / External Material | Sprayed steel plate | Sprayed steel plate |
| Door | Outer door: electrically heated glass semi-foam door*2 Inner door: acrylic door*6 | Outer door: electrically heated glass semi-foam door*2 Inner door: acrylic door*6 |
| Casters | Yes | Yes |
| Consumption | 550W | 560W |
| Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) |
| Shelf | 12pcs | 12pcs |
| Baskets | 36pcs | 36pcs |
| Blood Bags(450ml) | 360pcs | 576pcs |
| Standard Accessory | Thermal printer, test hole | Thermal printer, test hole |
| Optional Accessory | Temperature recorder, USB interface, RS485 interface | Temperature recorder, USB interface, RS485 interface |
| Internal Size(W*D*H) | 1100*420*1325mm | 1100*650*1325mm |
| External Size(W*D*H) | 1220*665*1885mm | 1220*895*1885mm |
| Package Size(W*D*H) | 1360*770*2100mm | 1360*1000*2100mm |
| Net Weight | 220kg | 246kg |
| Gross Weight | 285kg | 320kg |
Manufacturer catalogue checked 2026-09-28.
