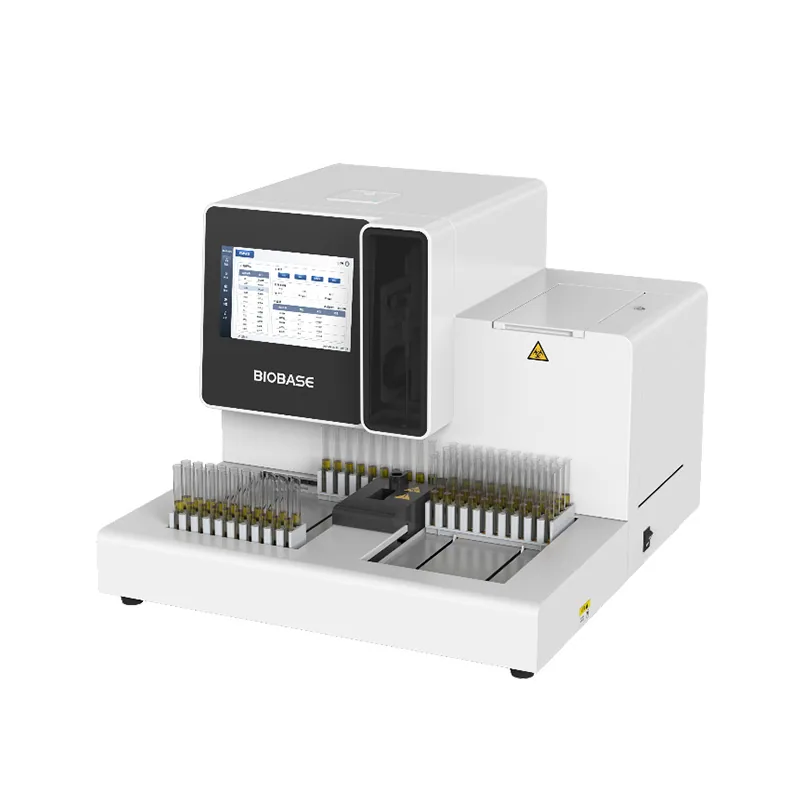

Brand: BIOBASE | Category: Medical Equipment
BIOBASE Automatic Urine Analyzer is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BH-QNY01, BH-QNY02. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BH-QNY01 | BH-QNY02 |
|---|---|---|
| Cascade Function | No | Yes |
| Principle | Photoelectric colorimetry | Photoelectric colorimetry |
| Throughput | 240 tests/hour | 240 tests/hour |
| Screen | 10.1-inch touch screen | 10.1-inch touch screen |
| Memory | Can store more than 1,000,000 test reports | Can store more than 1,000,000 test reports |
| Printer | Built-in thermal printer | Built-in thermal printer |
| Interface | USB, RS232, network interface | USB, RS232, network interface |
| Barcode Scanner | Can be optional | Can be optional |
| Range of Application | 9, 10, 11, 14 test strip | 9, 10, 11, 14 test strip |
| Items | 9 test strip: GLU, BIL, KET, pH, BLD, PRO, URO, NIT, LEU 10 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU 11 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC 14 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC, CRE, CAL, MCA | 9 test strip: GLU, BIL, KET, pH, BLD, PRO, URO, NIT, LEU 10 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU 11 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC 14 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC, CRE, CAL, MCA |
| Sample Rack Capacity | 100pcs samples(10pcs test tube racks) | 100pcs samples(10pcs test tube racks) |
| Reagent Tank Capacity | 600pcs | 600pcs |
| Data Retrieval | Can be searched by actual date, range date, urine sample number, name, barcode, etc. | Can be searched by actual date, range date, urine sample number, name, barcode, etc. |
| Automatic Sensing | Automatically detects and analyzes after placing the sample | Automatically detects and analyzes after placing the sample |
| Calibration Function | Yes | Yes |
| Power | 130W | 130W |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| External Size(W*D*H) | 662*730*520mm | 662*780*520mm |
| Net Weight | 53kg | 56.5kg |
| Packing Size(W*D*H) | 805*600*1160mm | 805*600*1160mm |
| Gross Weight | 88kg | 91.5kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
