Brand: BIOBASE | Category: Medical Equipment

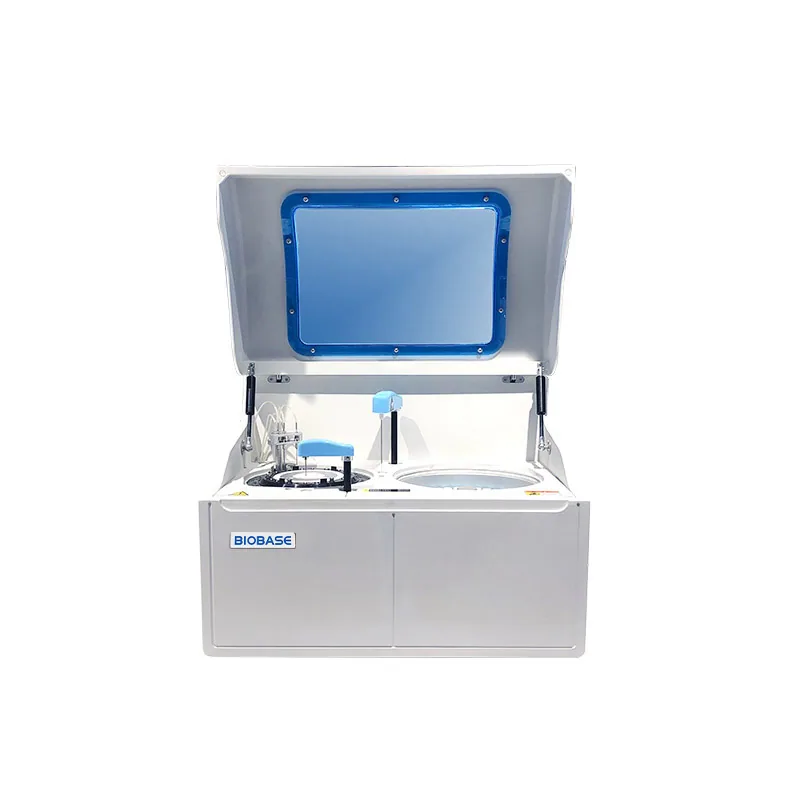

BIOBASE Automatic Clinical Blood Chemistry Biochemistry Analyzer BK-200 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BK-200. Published details include Sample&Reagent System / Sample Volume: 2~70µl; Sample&Reagent System / Reagent Volume: 20~350µl. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-200 |
|---|---|
| Overall; Performance / Throughput | 200 tests/hour |
| Overall; Performance / Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
| Overall; Performance / Certificates | CE, FDA, ISO9001, ISO13485 |
| Sample&Reagent System / Sample Positions | 37 sample positions |
| Sample&Reagent System / Reagent Position | 28 reagent positions |
| Sample&Reagent System / Sample Volume | 2~70µl |
| Sample&Reagent System / Reagent Volume | 20~350µl |
| Sample&Reagent System / Probe | Teflon coating, with anti-collision function, liquid level detection function |
| Sample&Reagent System / Probe Washing | Automatic washing interior and exterior |
| Sample&Reagent System / Reagent Cooling | Refrigerated tray with independent switch |
| Reaction System / Temperature Control | 37±0.2℃ |
| Reaction System / Cuvettes | 48 reusable cuvettes, optical length 6mm |
| Reaction System / Mixer Probe | Independent stirring |
| Reaction System / Washing | Automatic cuvettes washing |
| Reaction System / STAT Function | YES |
| Optical System / Light Source | 6V/10W halogen lamp |
| Optical System / Spectrophotometry | Post-spectral spectrophotometry |
| Optical System / Wavelength | 340~800nm |
| Optical System / Absorbance | 0~3.0Abs |
| Calibration&QC / Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Logit-4P, Logit-5P |
| Calibration&QC / Quality Control | Real-time QC, Westgard multi rule, Cumulative sum check, Twin Plot(2D), Daily QC, Monthly QC |
| Data Management / Software | Windows 7/8/10, 32 or 64 bit |
| Data Management / LIS System | Bi-direction, support HL7 protocol |
| Data Management / Interface | LAN port access |
| Data Management / Printer | External optional, multiple reporting mode available |
| Working Conditions / Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 300W |
| Working Conditions / Temperature | 15~30℃ |
| Working Conditions / Water Consumption | Deionized water:＜5L/H |
| Working Conditions / Humidity | 40%~85% |
| Size&Weight / External Size(W*D*H) | 625*425*460mm |
| Size&Weight / Net Weight | 36kg |
| Size&Weight / Package Size(W*D*H) | 750*560*900mm |
| Size&Weight / Gross Weight | 55kg |
Manufacturer catalogue checked 2026-09-28.
