Brand: BIOBASE | Category: Medical Equipment

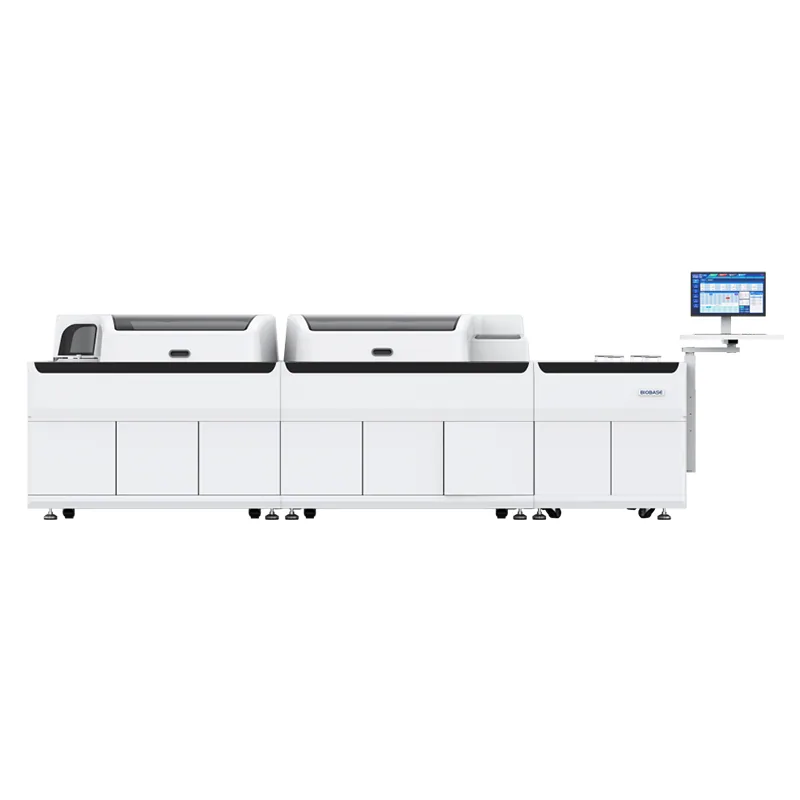

BIOBASE Automatic Chemistry & Immunoassay Analyzer MT8600 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: MT8600. Published details include Chemistry Analyzer Module / Sample Volume: 1~35μL, increasing by 0.1μL; Chemistry Analyzer Module / Reagent Volume: 1~350μL. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MT8600 |
|---|---|
| Chemistry Analyzer Module / Throughput | 2000 Tests/hour; Optional ISE module 600 Tests/hour |
| Chemistry Analyzer Module / Sample Type | Serum, plasma, whole blood, urine, cerebrospinal fluid, semen, stool |
| Chemistry Analyzer Module / Loading Mode | Track loading, with emergency track |
| Chemistry Analyzer Module / Sample Position | Maximum 350 samples loaded at one time, original tube loading with sample rack |
| Chemistry Analyzer Module / Reagent Position | 250 positions, 2 cold storage functional reagent disks |
| Chemistry Analyzer Module / Sample Volume | 1~35μL, increasing by 0.1μL |
| Chemistry Analyzer Module / Reagent Volume | 1~350μL |
| Chemistry Analyzer Module / Reaction Volume | 80~350μL |
| Chemistry Analyzer Module / Probe | Liquid level sensing, random tracking, three-dimensional anti-collision protection |
| Chemistry Analyzer Module / Wavelength Range | 340nm~850nm |
| Chemistry Analyzer Module / Reaction Temperature | Circulating water bath, constant temperature 37±0.1℃ |
| Chemistry Analyzer Module / External Dimensions(W*D*H) | 1505*1225*1245mm |
| Chemistry Analyzer Module / Net Weight | 500kg |
| Immunoassay Module / Throughput | 600 Tests/hour |
| Immunoassay Module / Reaction Principle | Tubular magnetic particle enzymatic chemiluminescence |
| Immunoassay Module / Sample Type | Serum, plasma, urine |
| Immunoassay Module / Cleaning Module | Double cleaning module, triple magnetic separation cleaning technology, non-contact type mixing |
| Immunoassay Module / Reagent Position | Double reagent disks, 50 reagent positions, 2~8℃ cold storage |
| Immunoassay Module / Reaction Tube Capacity | 2000 reaction tubes, support random loading |
| Immunoassay Module / Incubation Position | A total of 238 incubation positions, 37±0.1℃, dry bath heating |
| Immunoassay Module / Sample Position | Maximum 350 samples loaded at one time, original tube loading with sample rack |
| Immunoassay Module / Other Functions | Reagent radio frequency identification, sample needle collision prevention, liquid level detection, automatic dilution, optional clot detection, etc. |
| Immunoassay Module / External Dimensions(W*D*H) | 1500*1225*1245mm |
| Immunoassay Module / Net Weight | 500kg |
| Sample Loading Module / Sample Position | 350 sample positions, 450 samples delivered per hour |
| Sample Loading Module / STAT Function | Equipped with emergency priority function |
| Sample Loading Module / External Dimensions(W*D*H) | 972*1225*1495mm |
| Sample Loading Module / Net Weight | 160kg |
| Others / Power Supply | AC220 50/60Hz (Standard); AC110 50/60Hz (Optional), 4950VA |
| Others / Packing Size(W*D*H) | 1685*1410*1460mm; 1685*1410*1460mm; 1410*1350*1170mm |
| Others / Gross Weight | 670kg; 650kg; 360kg |
Manufacturer catalogue checked 2026-09-28.
