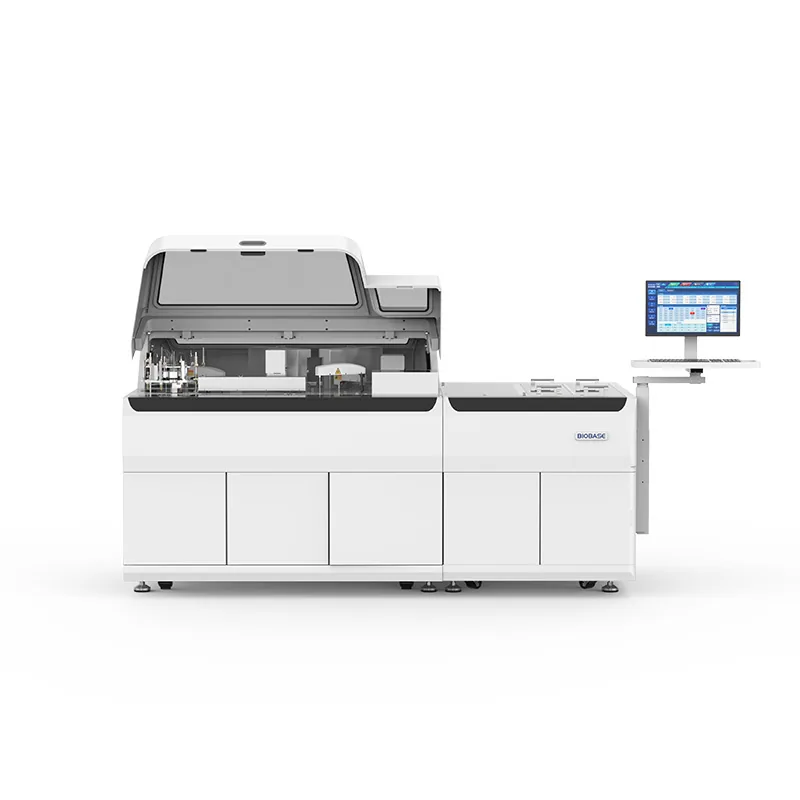

BIOBASE Automatic Chemiluminescence Immunoassay System BKI5800
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Automatic Chemiluminescence Immunoassay System BKI5800 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BKI5800. Published details include Sample Volume: 10~200μl. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKI5800 |
|---|---|
| Throughput | 600T/H |
| Principle | Magnetic particle enzymatic chemiluminescence |
| Modes of Operation | Random, batch and STAT |
| Separation Method | Magnetic separation technology |
| Sample Positions | 350pcs(Each position could be used as an emergency position) |
| Reagent Positions | 50pcs(2-8℃ refrigeration) |
| Incubation Positions | 238pcs |
| Time to 1ˢᵗ Result | 18min |
| Sample Volume | 10~200μl |
| Detection Precision | CV≤3% |
| Carry-over Rate | ≤10⁻⁵ |
| Correlation Coefficient | r≥0.99 |
| Calibration Type | 6/7-point calibration |
| Software System | Comes with a screen, windows system; Bi-direction, support HL7 protocol; Intuitive user interface; Intelligent data management |
| Interface | TCP/IP Network interface |
| Other Function | Sample barcode scanning, reagent RFID, vertical anti-collision needle, liquid level detection, intelligent alarm, automatic dilution function, automatic retesting, and clot detection. |
| Power Supply | AC110/220V, 50/60Hz, 1550VA |
| External Size (W*D*H) | 972*1225*1495mm; 1505*1225*1245mm |
| Net Weight | 160kg; 500kg |
| Package Size (W*D*H) | 1410*1350*1170mm; 1685*1410*1460mm |
| Gross Weight | 235kg; 600kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
