Brand: BIOBASE | Category: Medical Equipment

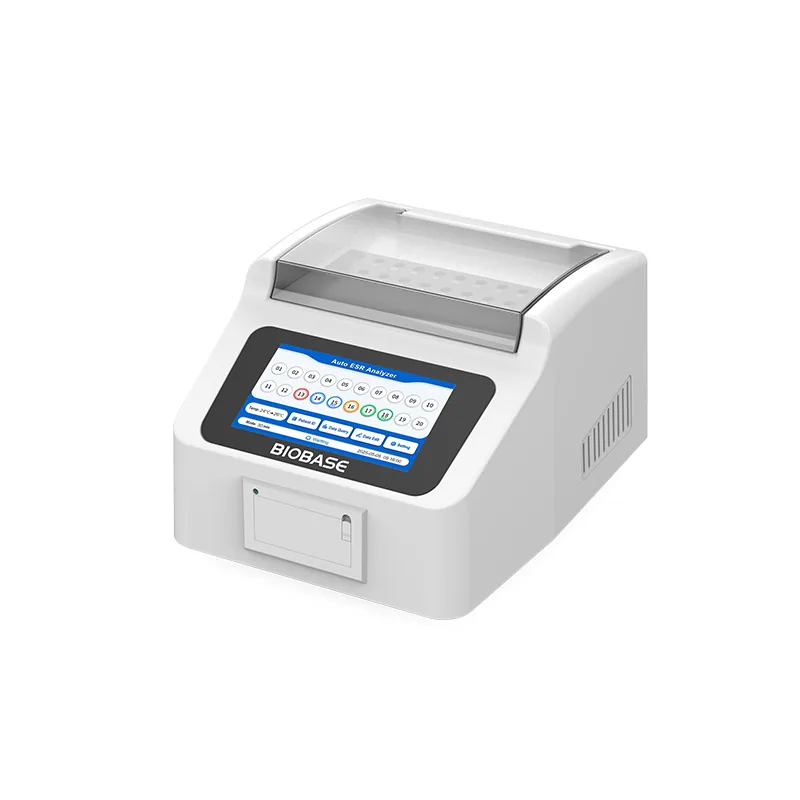

BIOBASE Auto ESR Analyzer BK-ESR20pro BK-ESR40pro is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BK-ESR20pro, BK-ESR40pro. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-ESR20pro | BK-ESR40pro |
|---|---|---|
| Application | Erythrocyte sedimentation rate analysis | Erythrocyte sedimentation rate analysis |
| Measurement Method | Infrared detection | Infrared detection |
| Analysis Result | Westergren ESR value(mm/hour) | Westergren ESR value(mm/hour) |
| Throughput | Maximum 40 tests/hour | Maximum 80 tests/hour |
| Analysis Channels | 20(load up to 20 samples for analysis at the same time) | 40(load up to 40 samples for analysis at the same time) |
| Loading Type | Load samples at any time, measure at any time | Load samples at any time, measure at any time |
| Analysis Time | 30 minutes or 60 minutes selectable | 30 minutes or 60 minutes selectable |
| Sampling Interval | 3 min | 3 min |
| Measurement Range | 0~150mm/h | 0~150mm/h |
| Temperature Compensation | The result is automatically corrected to the result at 18°C | The result is automatically corrected to the result at 18°C |
| Result Resolution | 1mm/1h and 1mm/2h | 1mm/1h and 1mm/2h |
| Blood Level Range | 46mm~64mm | 46mm~64mm |
| HCT Range | 0.2~1.0 | 0.2~1.0 |
| Repeatability | 0~10mm/h, SD≤1.5mm/h; >10mm/h, CV≤8%; | 0~10mm/h, SD≤1.5mm/h; >10mm/h, CV≤8%; |
| Channel Consistency | 0~10mm/h, SD≤1.5mm/h; >10mm/h, CV≤8% | 0~10mm/h, SD≤1.5mm/h; >10mm/h, CV≤8% |
| Reading Accuracy | ±0.1mm | ±0.1mm |
| Display | 7-inch color LCD touch screen | 7-inch color LCD touch screen |
| Communication Interface | Type-C, USB interface | Type-C, USB interface |
| Printer | Built-in thermal printer | Built-in thermal printer |
| Power Supply | AC110~220V, 50/60Hz | AC110~220V, 50/60Hz |
| External Size(W*D*H) | 284*355*208mm | 284*355*208mm |
| Net Weight | 5.6kg | 6.3kg |
| Package Size(W*D*H) | 339*544*249mm | 339*544*249mm |
| Gross Weight | 8.7kg | 9.4kg |
Manufacturer catalogue checked 2026-09-28.
