Brand: BIOBASE | Category: Medical Equipment

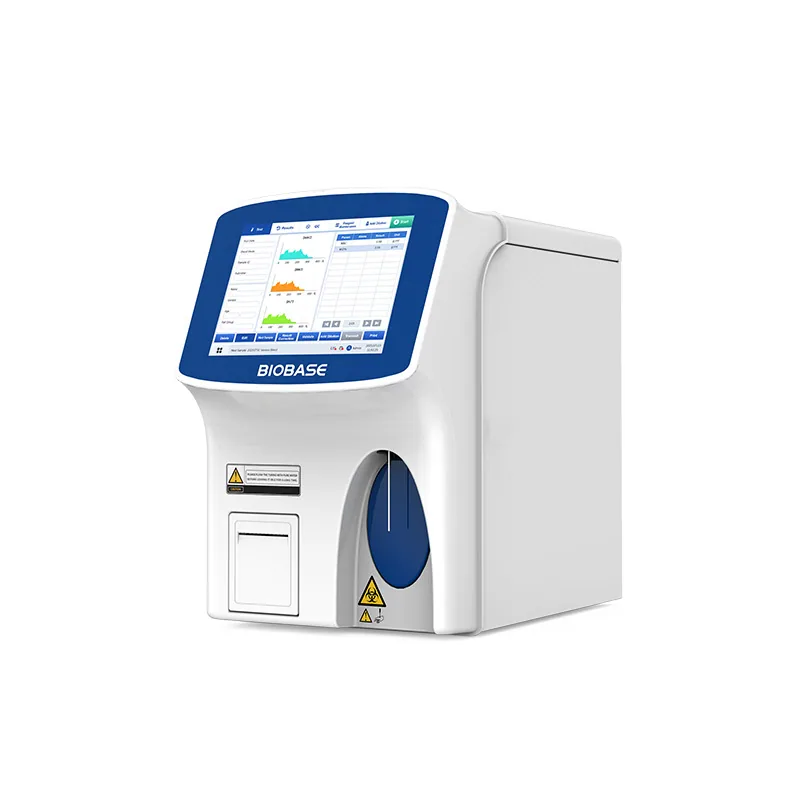

BIOBASE 3-Part Hematology Analyzer BH-HA310 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BH-HA310. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BH-HA310 | BH-HA310 | BH-HA310 | BH-HA310 | BH-HA310 | BH-HA310 |
|---|---|---|---|---|---|---|
| Throughput | 60 samples/hour | 60 samples/hour | 60 samples/hour | 60 samples/hour | 60 samples/hour | 60 samples/hour |
| Principle | Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB | Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB | Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB | Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB | Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB | Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB |
| Channels | 2 | 2 | 2 | 2 | 2 | 2 |
| Parameters | 21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC) | 21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC) | 21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC) | 21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC) | 21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC) | 21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC) |
| Histograms | 3 histograms(including WBC, RBC, PLT histograms) | 3 histograms(including WBC, RBC, PLT histograms) | 3 histograms(including WBC, RBC, PLT histograms) | 3 histograms(including WBC, RBC, PLT histograms) | 3 histograms(including WBC, RBC, PLT histograms) | 3 histograms(including WBC, RBC, PLT histograms) |
| Sample Volume | Venous blood: 10μl, Capillary: 10μl, Prediluted: 20μl | Venous blood: 10μl, Capillary: 10μl, Prediluted: 20μl | Venous blood: 10μl, Capillary: 10μl, Prediluted: 20μl | Venous blood: 10μl, Capillary: 10μl, Prediluted: 20μl | Venous blood: 10μl, Capillary: 10μl, Prediluted: 20μl | Venous blood: 10μl, Capillary: 10μl, Prediluted: 20μl |
| Calibration | Manual, auto calibration | Manual, auto calibration | Manual, auto calibration | Manual, auto calibration | Manual, auto calibration | Manual, auto calibration |
| Counting Modes | Venous, capilary, prediluted | Venous, capilary, prediluted | Venous, capilary, prediluted | Venous, capilary, prediluted | Venous, capilary, prediluted | Venous, capilary, prediluted |
| Printing Model | Auto print, manual print | Auto print, manual print | Auto print, manual print | Auto print, manual print | Auto print, manual print | Auto print, manual print |
| LIS | Support Bi-directional LIS | Support Bi-directional LIS | Support Bi-directional LIS | Support Bi-directional LIS | Support Bi-directional LIS | Support Bi-directional LIS |
| Language | Chinese, English, Spanish, French, Russian, Ukrainian | Chinese, English, Spanish, French, Russian, Ukrainian | Chinese, English, Spanish, French, Russian, Ukrainian | Chinese, English, Spanish, French, Russian, Ukrainian | Chinese, English, Spanish, French, Russian, Ukrainian | Chinese, English, Spanish, French, Russian, Ukrainian |
| Reagent | Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml | Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml | Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml | Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml | Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml | Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml |
| Data Input | 9.7-inch touch screen, mouse, keyboard(optional) | 9.7-inch touch screen, mouse, keyboard(optional) | 9.7-inch touch screen, mouse, keyboard(optional) | 9.7-inch touch screen, mouse, keyboard(optional) | 9.7-inch touch screen, mouse, keyboard(optional) | 9.7-inch touch screen, mouse, keyboard(optional) |
| Output | Internal printer, support external printer | Internal printer, support external printer | Internal printer, support external printer | Internal printer, support external printer | Internal printer, support external printer | Internal printer, support external printer |
| Printer Paper | 57*30mm | 57*30mm | 57*30mm | 57*30mm | 57*30mm | 57*30mm |
| Interface | 4 USB ports, network port, RS232 serial port | 4 USB ports, network port, RS232 serial port | 4 USB ports, network port, RS232 serial port | 4 USB ports, network port, RS232 serial port | 4 USB ports, network port, RS232 serial port | 4 USB ports, network port, RS232 serial port |
| Storage | 100,000 results with histogram | 100,000 results with histogram | 100,000 results with histogram | 100,000 results with histogram | 100,000 results with histogram | 100,000 results with histogram |
| Unclog | High voltage burn, reverse high-pressure flush | High voltage burn, reverse high-pressure flush | High voltage burn, reverse high-pressure flush | High voltage burn, reverse high-pressure flush | High voltage burn, reverse high-pressure flush | High voltage burn, reverse high-pressure flush |
| Work Temperature | 10~40°C | 10~40°C | 10~40°C | 10~40°C | 10~40°C | 10~40°C |
| Power Supply | 100~240AC, 50/60Hz, 150VA | 100~240AC, 50/60Hz, 150VA | 100~240AC, 50/60Hz, 150VA | 100~240AC, 50/60Hz, 150VA | 100~240AC, 50/60Hz, 150VA | 100~240AC, 50/60Hz, 150VA |
| Relative Humidity | ≤80% | ≤80% | ≤80% | ≤80% | ≤80% | ≤80% |
| Atmospheric Pressure | 86.0kPa~106.0kPa | 86.0kPa~106.0kPa | 86.0kPa~106.0kPa | 86.0kPa~106.0kPa | 86.0kPa~106.0kPa | 86.0kPa~106.0kPa |
| Carry-over Rate | Parameter | WBC | RBC | HGB | PLT | PLT |
| Carry-over Rate | CV | ≤1.5% | ≤1% | ≤1% | ≤3% | ≤3% |
| Background | Parameter | WBC | RBC | HGB | HCT | PLT |
| Background | Background | ≤0.5*10^9/L | ≤0.05*10^12/L | ≤2g/L | ≤0.5% | ≤10*10^9/L |
| Linearity | Parameter | Measurement Range | Measurement Range | CV | CV | CV |
| Linearity | WBC | (1~10.00*10^9)/L; (10.10~99.9*10^9)/L | (1~10.00*10^9)/L; (10.10~99.9*10^9)/L | (±0.5*10^9)/L; ±5% | (±0.5*10^9)/L; ±5% | (±0.5*10^9)/L; ±5% |
| Linearity | RBC | (0.3~1.00*10^12)/L (1.01~7*10^12)/L | (0.3~1.00*10^12)/L (1.01~7*10^12)/L | (±0.05*10^12)/L; ±5% | (±0.05*10^12)/L; ±5% | (±0.05*10^12)/L; ±5% |
| Linearity | HGB | (20~70g)/L; (71~200.0g)/L | (20~70g)/L; (71~200.0g)/L | (±2.0g)/L; ±3% | (±2.0g)/L; ±3% | (±2.0g)/L; ±3% |
| Linearity | PLT | (20~100*10^9)/L; (101~999*10^9)/L | (20~100*10^9)/L; (101~999*10^9)/L | (±10.0*10^9)/L; ±10% | (±10.0*10^9)/L; ±10% | (±10.0*10^9)/L; ±10% |
| Precision | Parameter | Repeatability | Repeatability | Measurement Range | Measurement Range | Measurement Range |
| Precision | WBC | ≤4.0% | ≤4.0% | (3.5~9.5*10^9)/L | (3.5~9.5*10^9)/L | (3.5~9.5*10^9)/L |
| Precision | RBC | ≤2.0% | ≤2.0% | (3.8~5.8*10^12)/L | (3.8~5.8*10^12)/L | (3.8~5.8*10^12)/L |
| Precision | HGB | ≤2.0% | ≤2.0% | (115~175)g/L | (115~175)g/L | (115~175)g/L |
| Precision | PLT | ≤8.0% | ≤8.0% | (125~350*10^9)/L | (125~350*10^9)/L | (125~350*10^9)/L |
| Precision | HCT | ≤3.0% | ≤3.0% | 35%~50% | 35%~50% | 35%~50% |
| External Size(W*D*H) | 295*505*430mm | 295*505*430mm | 295*505*430mm | 295*505*430mm | 295*505*430mm | 295*505*430mm |
| Packed Size(W*D*H) | Instrument: 404*564*616mm; Reagent: 340*340*340mm, 200*150*100mm | Instrument: 404*564*616mm; Reagent: 340*340*340mm, 200*150*100mm | Instrument: 404*564*616mm; Reagent: 340*340*340mm, 200*150*100mm | Instrument: 404*564*616mm; Reagent: 340*340*340mm, 200*150*100mm | Instrument: 404*564*616mm; Reagent: 340*340*340mm, 200*150*100mm | Instrument: 404*564*616mm; Reagent: 340*340*340mm, 200*150*100mm |
| Net Weight | 20kg | 20kg | 20kg | 20kg | 20kg | 20kg |
| Gross Weight | Instrument: 23kg; Reagent: 13kg, 1kg | Instrument: 23kg; Reagent: 13kg, 1kg | Instrument: 23kg; Reagent: 13kg, 1kg | Instrument: 23kg; Reagent: 13kg, 1kg | Instrument: 23kg; Reagent: 13kg, 1kg | Instrument: 23kg; Reagent: 13kg, 1kg |
Manufacturer catalogue checked 2026-09-28.
