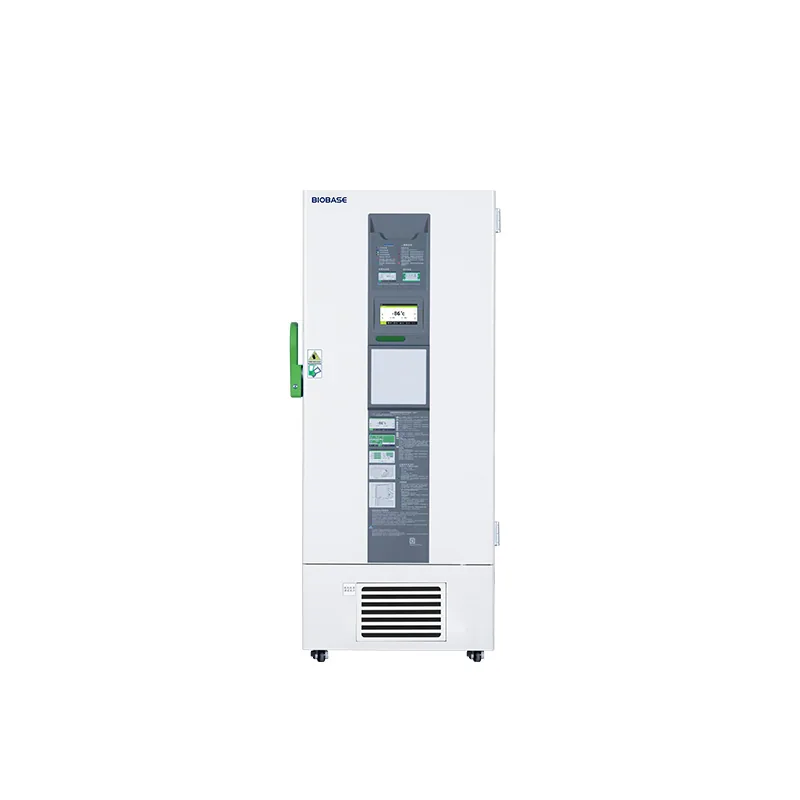

BIOBASE -86℃ Freezer BDF-86V408D BDF-86V588D BDF-86V838D

Brand: BIOBASE | Category: Scientific & Laboratory Equipment

BIOBASE -86℃ Freezer BDF-86V408D BDF-86V588D BDF-86V838D

BIOBASE -86℃ Freezer BDF-86V408D BDF-86V588D BDF-86V838D is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: BDF-86V408D, BDF-86V588D, BDF-86V838D. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications
ModelBDF-86V408DBDF-86V588DBDF-86V838DBDF-86V838D
Capacity408L588L838L838L
Temp. Range-40~-86℃-40~-86℃-40~-86℃-40~-86℃
Temp. Accuracy0.1℃0.1℃0.1℃0.1℃
Temp. Uniformity≤4℃≤4℃≤4℃≤4℃
Temp. Stability≤6℃≤6℃≤7℃≤7℃
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃)21min16min35min35min
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃)173min117min229min229min
Control SystemMicroprocessor controlMicroprocessor controlMicroprocessor controlMicroprocessor control
Display7-inch LCD touch screen7-inch LCD touch screen7-inch LCD touch screen7-inch LCD touch screen
AlarmAudible and visual alarm, high and low temperature alarm, sensor fault alarm, condenser dirty blocked alarm, abnormal ring temperature alarm, abnormal voltage alarm, power off alarm, door opening alarm, low battery alarm, remote alarm interface, all alarm information and history can be queried on the LCD screenAudible and visual alarm, high and low temperature alarm, sensor fault alarm, condenser dirty blocked alarm, abnormal ring temperature alarm, abnormal voltage alarm, power off alarm, door opening alarm, low battery alarm, remote alarm interface, all alarm information and history can be queried on the LCD screenAudible and visual alarm, high and low temperature alarm, sensor fault alarm, condenser dirty blocked alarm, abnormal ring temperature alarm, abnormal voltage alarm, power off alarm, door opening alarm, low battery alarm, remote alarm interface, all alarm information and history can be queried on the LCD screenAudible and visual alarm, high and low temperature alarm, sensor fault alarm, condenser dirty blocked alarm, abnormal ring temperature alarm, abnormal voltage alarm, power off alarm, door opening alarm, low battery alarm, remote alarm interface, all alarm information and history can be queried on the LCD screen
Refrigeration TypeDirect-coolingDirect-coolingDirect-coolingDirect-cooling
RefrigerantR4001, 300gR4001, 320gR4001, 400gR4001, 400g
CompressorImported brand SECOP compressor/2Imported brand SECOP compressor/2Imported brand SECOP compressor/2Imported brand SECOP compressor/2
Condenser & EvaporatorCopper tube, copper tube plateCopper tube, copper tube plateCopper tube, copper tube plateCopper tube, copper tube plate
DefrostManual defrostManual defrostManual defrostManual defrost
ConstructionHigh density polyurethane foam, CFC freeHigh density polyurethane foam, CFC freeHigh density polyurethane foam, CFC freeHigh density polyurethane foam, CFC free
Material / Internal Material304 stainless steel304 stainless steel304 stainless steel304 stainless steel
Material / External MaterialSprayed steel plateSprayed steel plateSprayed steel plateSprayed steel plate
DoorOuter door: Sprayed steel plate door*1 Inner door: 304 stainless steel door*2Outer door: Sprayed steel plate door*1 Inner door: 304 stainless steel door*2Outer door: Sprayed steel plate door*1 Inner door: 304 stainless steel door*2Outer door: Sprayed steel plate door*1 Inner door: 304 stainless steel door*2
Consumption1350W1500W1700W1700W
Power SupplyAC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
CastersYesYesYesYes
Shelf3333
Standard AccessoryRemote alarm interface, USB interface, test port, handwriting drawing board function, A4 paper slot function, automatic air pressure balance holeRemote alarm interface, USB interface, test port, handwriting drawing board function, A4 paper slot function, automatic air pressure balance holeRemote alarm interface, USB interface, test port, handwriting drawing board function, A4 paper slot function, automatic air pressure balance holeRemote alarm interface, USB interface, test port, handwriting drawing board function, A4 paper slot function, automatic air pressure balance hole
Optional AccessoryTemperature recorder, liquid nitrogen backup systemTemperature recorder, liquid nitrogen backup systemTemperature recorder, liquid nitrogen backup systemTemperature recorder, liquid nitrogen backup system
Internal Size(W*D*H)606*575*1180mm606*738*1310mm894*718*1310mm894*718*1310mm
External Size(W*D*H)891*992*1945.5mm891*1155*1994.5mm1179*1135*1994.5mm1179*1135*1994.5mm
Package Size(W*D*H)965*1035*2120mm975*1190*2200mm1275*1170*2200mm1275*1170*2200mm
Net Weight235.5kg283kg310kg310kg
Gross Weight278kg345.5kg333.5kg333.5kg

Manufacturer catalogue checked 2026-09-28.
