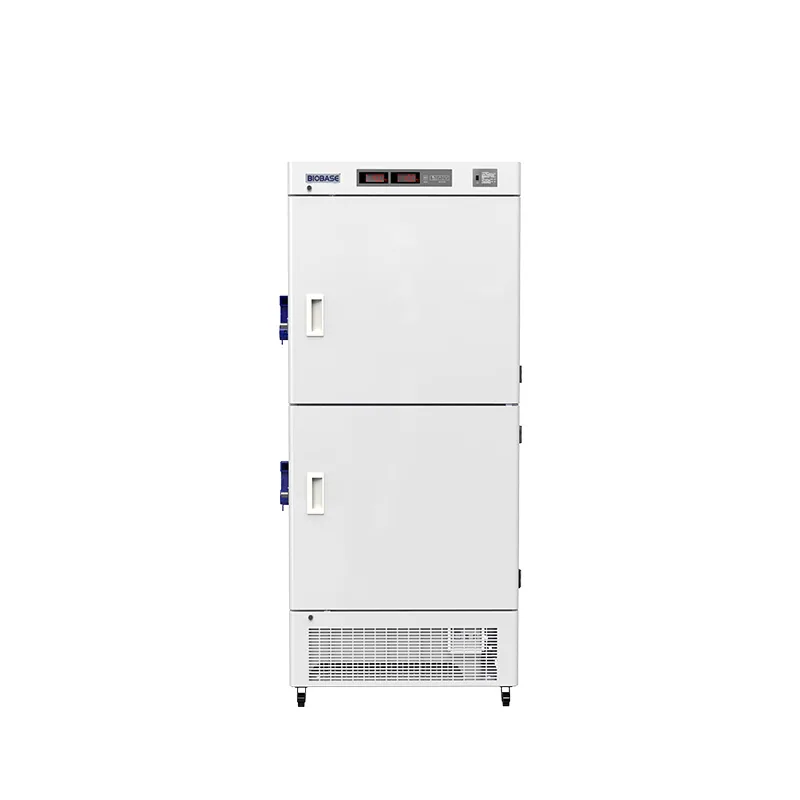

BIOBASE -40℃ Freezer BDF-40V368D BDF-40V528D
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE -40℃ Freezer BDF-40V368D BDF-40V528D is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: BDF-40V368D, BDF-40V528D. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDF-40V368D | BDF-40V528D |
|---|---|---|
| Capacity | 368L | 528L |
| Temp. Range | -15~-40℃ | -15~-40℃ |
| Temp. Accuracy | 0.1℃ | 0.1℃ |
| Temp. Uniformity | ≤4℃ | ≤4℃ |
| Temp. Stability | ≤4℃ | ≤4℃ |
| Recovery Time(Recover to -37℃ in an ambient temp. of 25℃) | ≤30min | ≤30min |
| Cooling Time(Cool down to -40℃ in an ambient temp. of 25℃) | ≤3h | ≤3h |
| Control System | Microprocessor control | Microprocessor control |
| Display | LED display | LED display |
| Alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm |
| Refrigeration Type | Direct-cooling | Direct-cooling |
| Refrigerant | Upper chamber: R290, 48g; Lower chamber: R290, 48g | Upper chamber: R290, 63g; Lower chamber: R290, 63g |
| Compressor | International famous brand compressor/2 | International famous brand compressor/2 |
| Condenser&Evaporator | Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator | Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator |
| Defrost | Manual defrost | Manual defrost |
| Construction | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam |
| Material / Internal Material | 304 stainless steel | 304 stainless steel |
| Material / External Material | Sprayed steel plate | Sprayed steel plate |
| Door | Outer door: cyclopentane integral foam outer door*2 Inner door: sprayed steel plate door*4 | Outer door: cyclopentane integral foam outer door*2 Inner door: sprayed steel plate door*4 |
| Consumption | 861W | 909W |
| Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) |
| Casters | Yes | Yes |
| Shelf | 4 | 4 |
| Standard Accessory | Test hole*2, USB interface | Test hole*2, USB interface |
| Optional Accessory | Temperature recorder, RS485 interface, outer door lock | Temperature recorder, RS485 interface, outer door lock |
| Internal Size(W*D*H) / Upper Chamber | 580*575*563mm | 720*649*563mm |
| Internal Size(W*D*H) / Lower Chamber | 580*575*563mm | 720*649*563mm |
| External Size(W*D*H) | 750*736*1884mm | 890*810*1884mm |
| Package Size(W*D*H) | 890*880*2100mm | 1030*950*2100mm |
| Net Weight | 153kg | 177kg |
| Gross Weight | 168kg | 200kg |
Manufacturer catalogue checked 2026-09-28.
