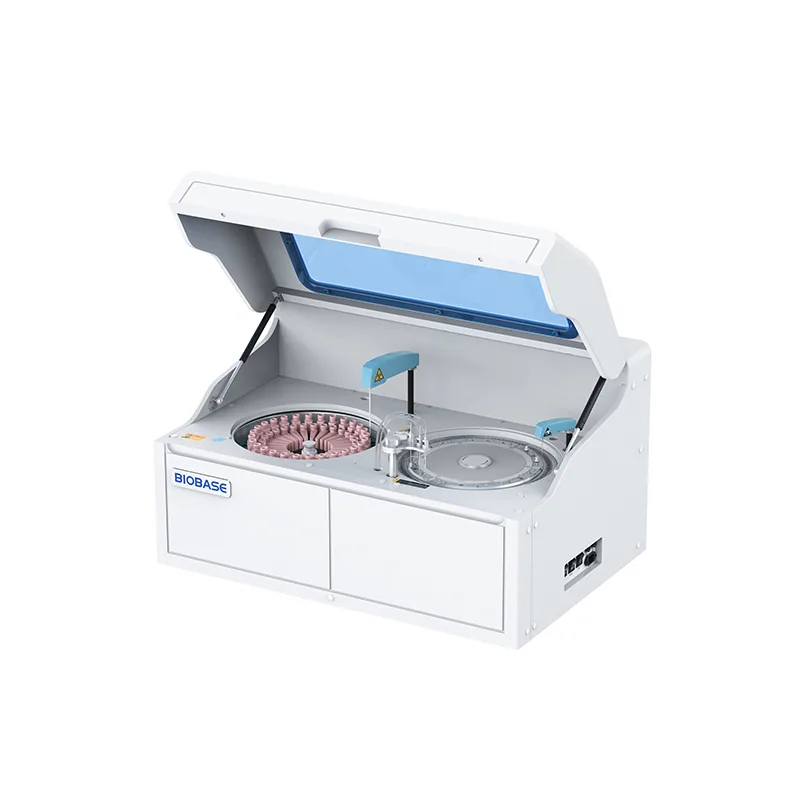

BIOBASE 300T/H Automatic Chemistry Analyzer BK-360(Customized)
Brand: BIOBASE | Category: Medical Equipment
BIOBASE 300T/H Automatic Chemistry Analyzer BK-360(Customized) is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BK-360. Published details include Reaction Volume: 100~500μl. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-360 | BK-360 |
|---|---|---|
| Overall; Performance | Throughput | 300 Tests/hour |
| Overall; Performance | Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
| Overall; Performance | Certificates | CE, FDA, ISO9001, ISO14001, ISO13485 |
| Overall; Performance | System | Optional open or close system, continuous working for 24 hours |
| Sample&Reagent System | Sample Positions | 50 sample positions |
| Sample&Reagent System | Reagent Position | 56 reagent positions |
| Sample&Reagent System | Sample Volume | 2~70μl |
| Sample&Reagent System | Reagent Volume | 20~350μl |
| Sample&Reagent System | Probe | With anti-collision function, liquid level detection function(sample&reagent) |
| Sample&Reagent System | Probe Washing | Automatic washing interior and exterior |
| Sample&Reagent System | Reagent Cooling | 2~12℃ for 24 hours |
| Reaction System | Temperature Control | 37±0.2℃, real-time monitoring |
| Reaction System | Cuvettes | 120 reusable cuvettes |
| Reaction System | Mixer Probe | Independent stirring, automatic frequency conversion |
| Reaction System | Washing | Automatic cuvettes washing |
| Optical System | Light Source | Halogen lamp, water-cooling |
| Optical System | Spectrophotometry | Post-spectral spectrophotometry |
| Optical System | Wavelength | 340~800nm(340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm) |
| Optical System | Absorbance | 0~3.5Abs |
| Calibration&QC | Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
| Calibration&QC | Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D) |
| Data Management | Software | Windows 7/8/10, 32 or 64 bit |
| Data Management | LIS System | Bi-direction, support HL7 protocol |
| Data Management | Interface | LAN port access |
| Data Management | Printer | External, multiple reporting mode available |
| Working Conditions | Power Supply | AC220V±10%, 50/60Hz(Standard), Auxiliary UPS system |
| Working Conditions | Temperature | 15~30℃(±2℃) |
| Working Conditions | Water Consumption | Deionized water＜5L/h |
| Working Conditions | Humidity | 40~85% |
| Size&Weight | External Size(W*D*H) | 873*585*500mm |
| Size&Weight | Net Weight | 80kg |
| Size&Weight | Package Size(W*D*H) | 1130*735*1040mm |
| Size&Weight | Gross Weight | 125kg |
| Other Accessories | Automatic built-in barcode sample and reagent scanning, External barcode scanner |
|---|---|
| Other Accessories | ISE(Ion-Selective Electrode)module, to simultaneously measure critical electrolytes,sodium(Na+), potassium(K+), and chloride(Cl-)in blood samples |
| Other Accessories | Needle blocking detection, detect flow restriction from air bubbles or clots |
| ; System | Prevent contamination from sample to sample(sample carry over)and from reagent to reagent(reagent carry over)and from cuvette to cuvette |
| ; System | Independent mixing unit |
| ; System | Capable of photometric and turbidity analysis,and capable of single-color and dual-color measurement |
| ; System | With reflex testing capabilities |
| ; System | Automatic pre-dilution and re-dilution of samples |
| ; System | Dual chemistry(Twin Chemistry) |
| ; System | 300 free programable tests |
| ; System | Results traceability |
| Analyze Samples | Serum, plasma, whole blood, urine and cerebrospinal fluid, etc |
| Analyze Samples | Onboard automatic hemolysate preparation for whole blood samples |
| Reaction Volume | 100~500μl |
Manufacturer catalogue checked 2026-09-28.
