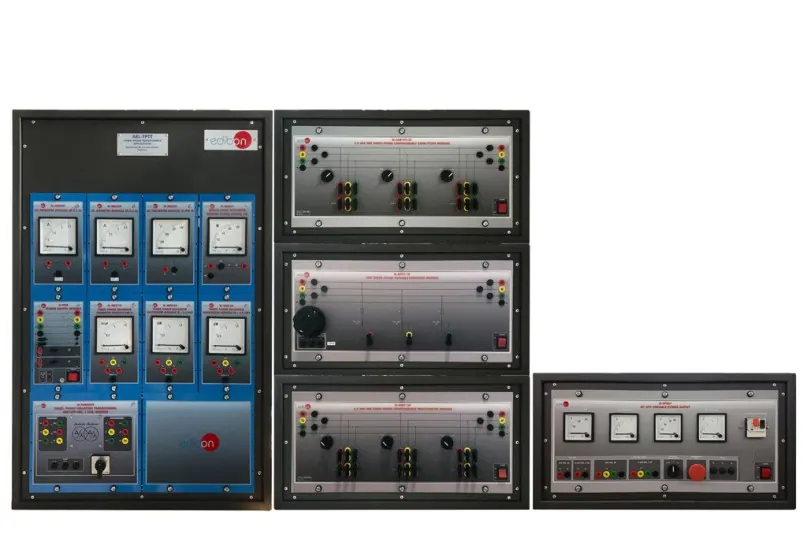

AEL-TPTT: Three-Phase Transformer Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the operating principles of three-phase transformers and the tests used to find their parameters. Students carry out the standard tests, connect the windings in different arrangements and derive the equivalent circuit of the machine.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 1800 x 300 x 1400 mm |
| Weight | 80 Kg approx |
| Measurement range | 0 to 2.5 A |
| Measurement range | 0 to 400 VAC |
