Brand: EDIBON | Category: Scientific & Laboratory Equipment

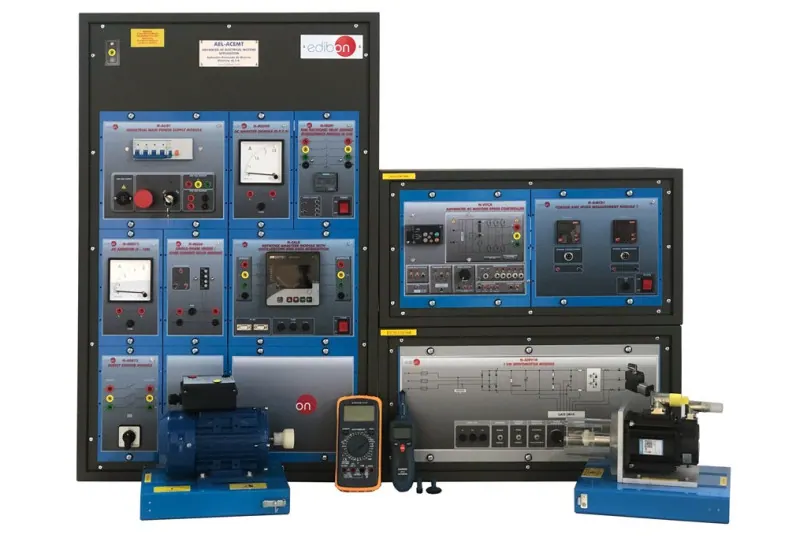

A test bench for electrical and mechanical characterisation of a range of AC motors. The tests yield the significant machine characteristics, and the EM-SCADA software can be added to acquire the data and plot the curves from a computer.
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 1380 x 840 x 2010 mm |
| Weight | 80 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Range | 0 to 16 A |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
Covers the operations performed with wound rotor induction motors, including rotor resistance starting and the speed control it allows. The student wires the power and control circuits with commutators, timers and contactors on the modular rack.
Covers the manoeuvres performed on squirrel cage induction motors in industry, wired by the student using commutators, timers and contactors. Direct on line starting, reversing and sequenced control are all built up from the modules on the rack.
Covers the pole changing Dahlander motor and the two speed manoeuvres carried out with it in industry. The student wires the power and control circuits using commutators, timers and contactors, then measures the machine at each speed.
