Brand: Nanosurf | Category: Nanotechnology

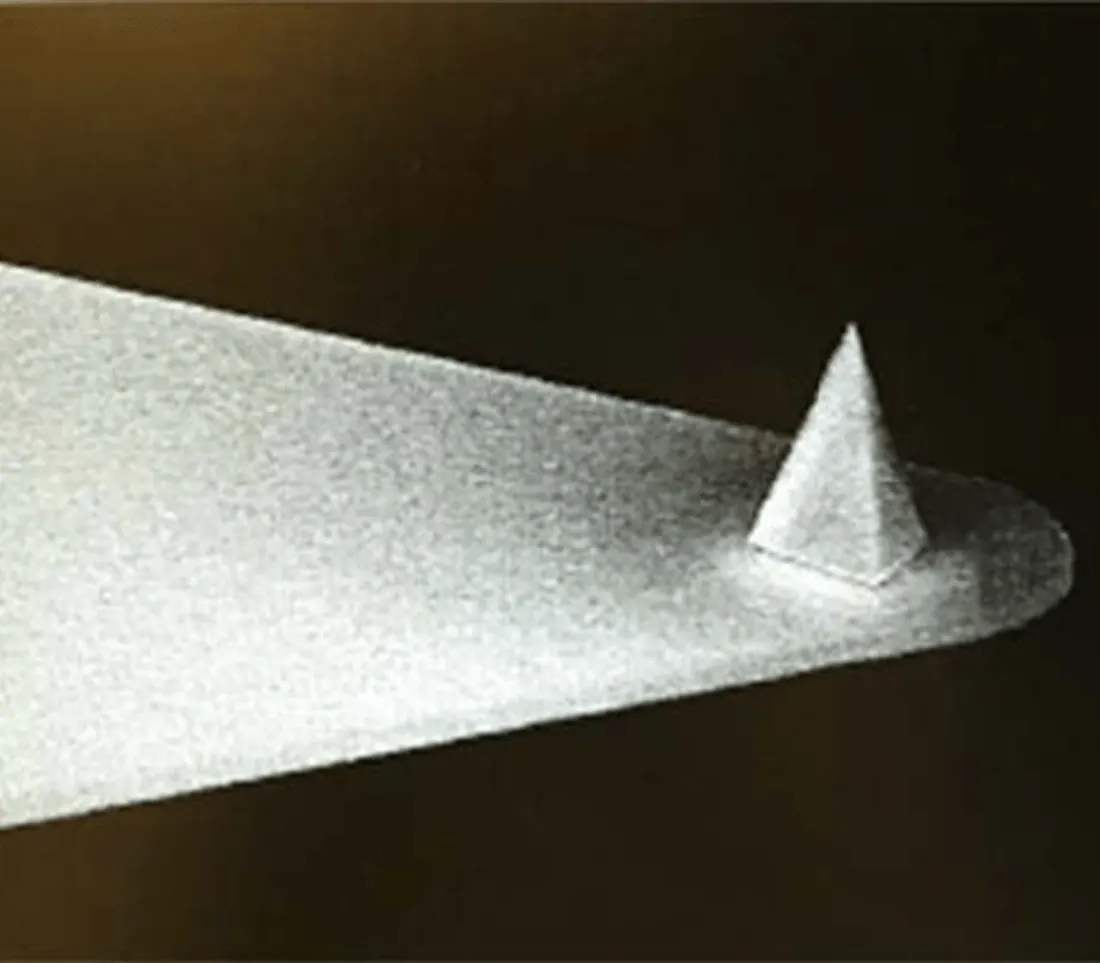

A triangular silicon nitride probe for faster WaveMode imaging and for CleanDrive dynamic mode, with a metal coating tuned for photothermal excitation. It reaches resolution down to atomic structure and suits nanomechanical work on stiffer samples such as soft metal alloys.
| Parameter | Value |
|---|---|
| Shape | triangular, silicon nitride |
| Length | 25 to 31 um, typically 28 um |
| Thickness | 0.54 to 0.66 um, typically 0.60 um |
| Resonance frequency in air | 900 to 2100 kHz, typically 1200 kHz |
| Spring constant | 9 to 27 N/m, typically 20 N/m |
| Tip | pyramidal silicon, radius typically 5 nm or less |
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
