A transportable Raman system with fibre optic coupled probes for microscopic and bulk analysis outside the laboratory. Automatic focus tracking lets it follow irregular, moving or changing samples in real time, and live white light viewing is used to target the measurement point.
| Parameter | Value |
|---|---|
| Laser excitation wavelengths | 532 nm, 660 nm or 785 nm, one or two fitted |
| Spatial resolution | x/y less than 1 um, z less than 2 um |
| Probes | VRP11 for general and bulk sampling, VRP21C for high resolution confocal work |
| Standard fibre optic cable length | 5 m, other lengths available |
| Dimensions | 543 mm x 436 mm x 178 mm |
| Specification | Class 3B laser product |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment

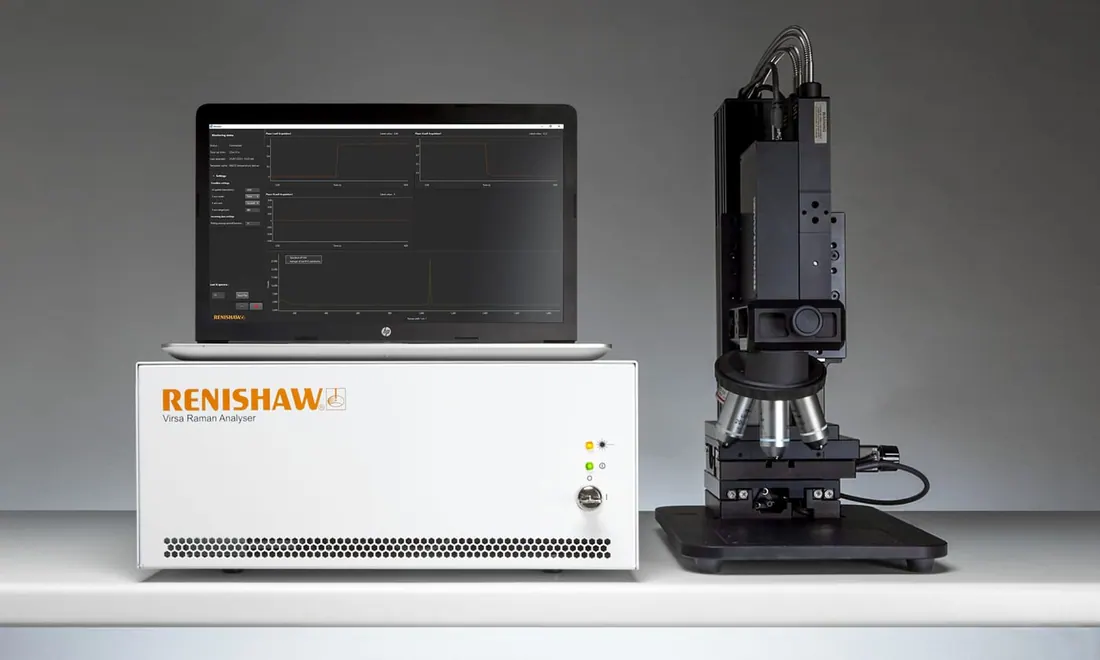

The Virsa analyser supplied with dedicated optics for process analytical technology in biopharmaceutical production. It monitors metabolite concentrations in a bioreactor continuously, so upstream and downstream processes can be controlled without relying on offline HPLC checks.
A configuration for the inVia confocal Raman microscope that uses a pulsed laser and an ultra-fast detector to separate Raman scattered photons from fluorescence by arrival time. It recovers usable spectra from strongly fluorescent samples and from samples at very high temperatures.
A dedicated Raman imaging system for pharmaceutical formulation work. Using StreamLine rapid imaging and LiveTrack focus tracking it builds a chemical image of a tablet surface in as little as five minutes, showing how each component is distributed through the sample.
