Brand: EDIBON | Category: Scientific & Laboratory Equipment

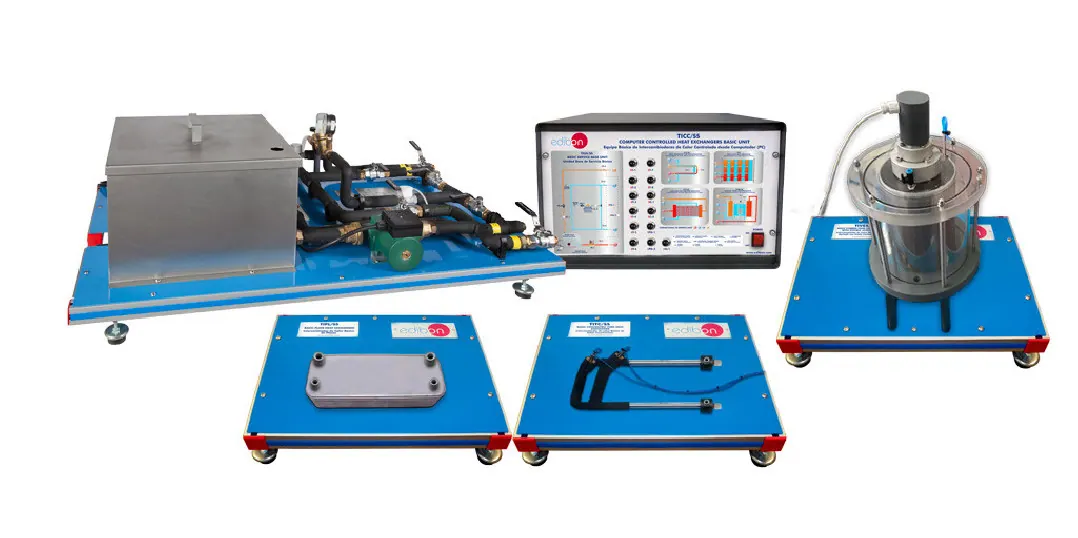

Entry level computer controlled system for studying and comparing small scale heat exchangers in parallel or counter flow. It pairs a basic service base unit with one exchanger, so a laboratory can start small and add exchanger types later.
| Parameter | Value |
|---|---|
| Specification | TIUS/SS basic service base unit is common to the optional SS type exchangers |
| Specification | Water heated in a computer controlled thermostatic bath and pumped to the exchanger |
| Specification | Regulation and measurement of cold and hot water flows and inlet and outlet temperatures |
| Specification | Measurement of the pressure drop in the exchanger |
| Specification | Exchangers available include TITC/SS concentric tube, TIPL/SS plate, TICT/SS shell and tube and TIVES/SS stirred tank |
| Specification | Cold water from the tap or from the TERA refrigeration water recirculation unit |
Not sure which configuration you need? Help me choose
