Brand: EDIBON | Category: Scientific & Laboratory Equipment

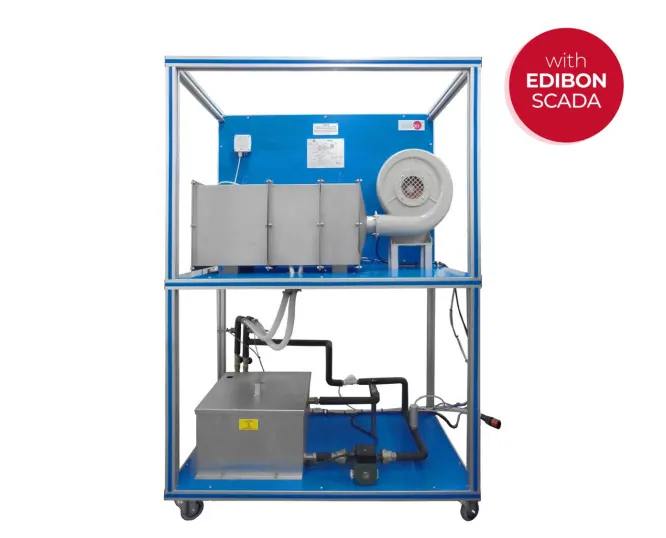

Stainless steel duct with a finned radiator and a centrifugal fan, exchanging heat between a hot water circuit and an air stream. Students carry out overall energy balances, apply the NTU method and study the influence of flow on the heat transfer.
| Parameter | Value |
|---|---|
| Specification | Finned radiator placed perpendicular to the air flow generated by a computer controlled fan |
| Specification | Closed hot water circuit with stainless steel tank, computer controlled heating element and pump |
| Specification | Bypass with regulation valve to adjust the hot water flow to the exchanger |
| Specification | Temperature sensors at the water and air inlets and outlets and in the tank |
| Specification | Water flow sensor and air flow sensor |
| Specification | Tank level switch and pressure sensor after the pump for the pump characteristic curve |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
