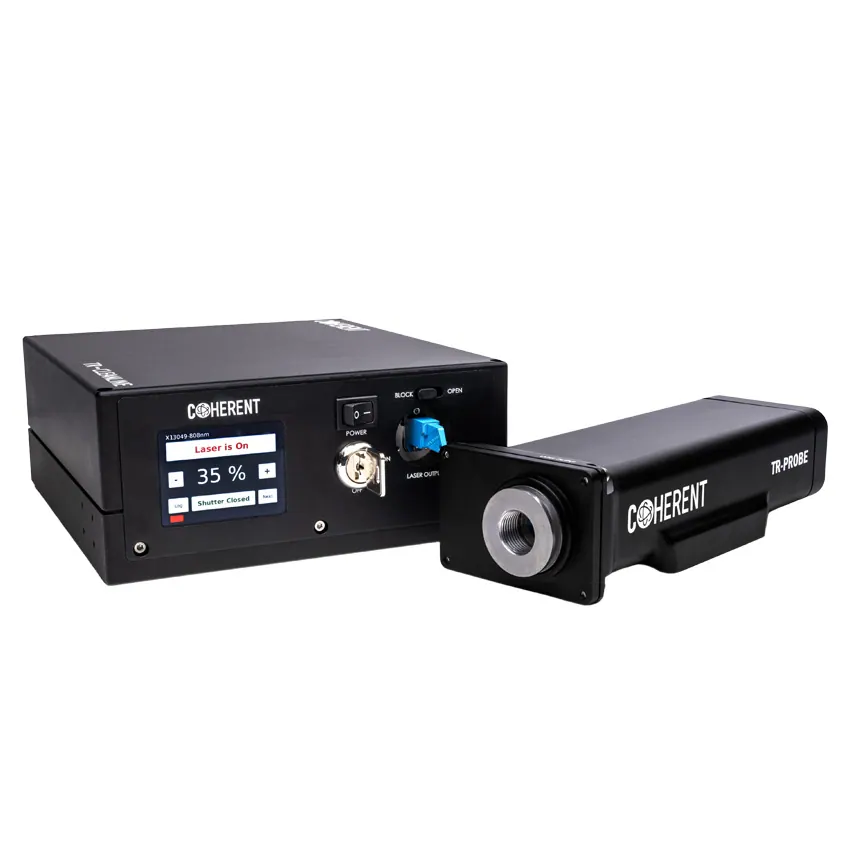

THz-Raman Modular Systems upgrade an existing spectrometer so it can collect the low frequency Raman region from about 5 to 150 cm-1. Each module includes the laser and the filters needed to produce a clean spectrum to within about 5 cm-1, with a fibre optic output to the spectrometer.
| Parameter | Value |
|---|---|
| Multimode wavelength options | 532, 785 and 830 nm |
| Single-mode wavelength options | 532 and 785 nm |
| Power | multimode up to 300 mW at sample, single mode up to 50 mW at sample |
| Specification | Dual polarization output available at 532 nm and 785 nm |
| Head dimensions | 234 x 102.5 x 58.5 mm, laser 229 x 199 x 89 mm |
| Weight | <8.5 kg |
