Brand: EDIBON | Category: Scientific & Laboratory Equipment

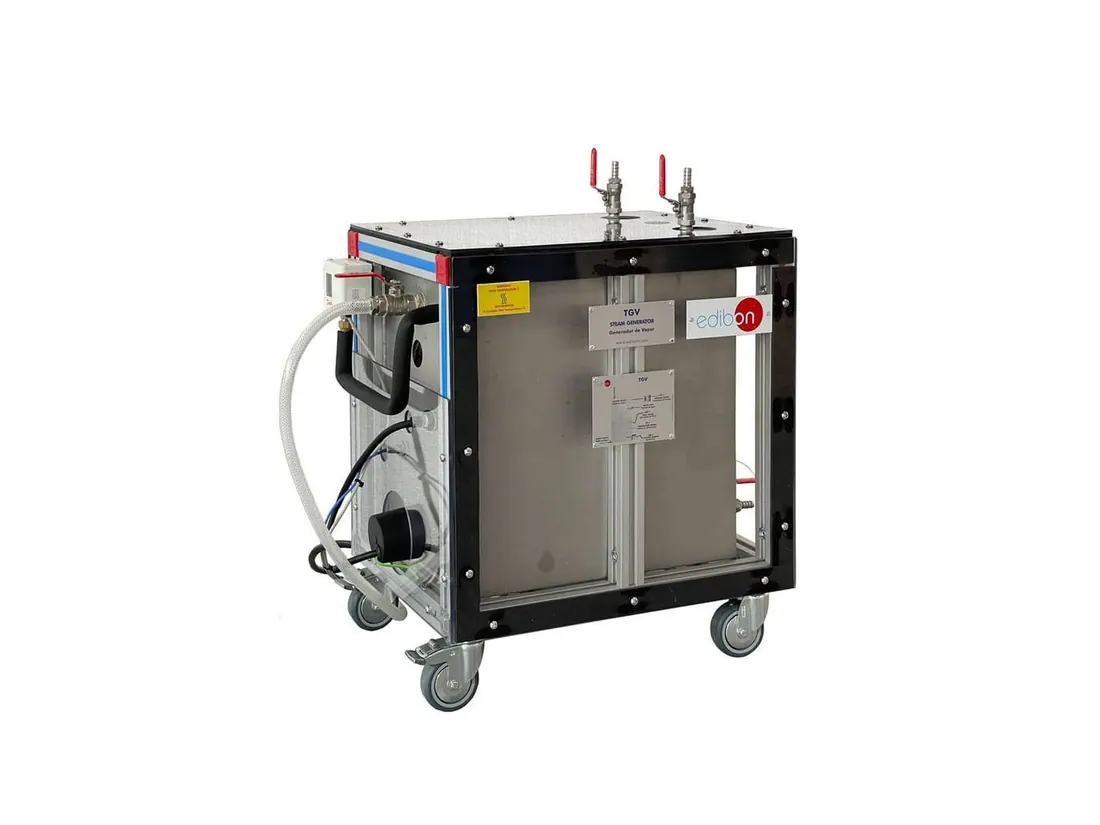

An electrically heated steam generator that supplies saturated steam to other teaching units. It works at 0.9 bar with a maximum of 2 bar and carries a safety valve, pressure switch and level safety so the heater switches off if the water level drops.
| Parameter | Value |
|---|---|
| Electric heating element | 3 kW |
| Specification | Carbon steel water tank, volume 40 l, with one water inlet, one water outlet and two vapour outlets |
| Pressure working range | 0 to 0.9 bar |
| Specification | Temperature PID control, maximum set point 120 degrees C, type J temperature sensor |
| Specification | Safety pressure switch at 2 bar and safety level switch |
| Specification | Polycarbonate heat resisting protection screens |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
The 6 kW version of the EDIBON electrically heated steam generator. It produces saturated steam at 0.9 bar working pressure with a maximum of 2 bar, and includes a safety valve, level indicator, pressure switch and level safety cut out.
Modular laboratory furniture designed around metallographic preparation, with work surfaces, framework, handles and high pressure laminate decor specified for the wet and abrasive conditions of a sample preparation room. QATM provide 3D planning software so a layout can be reviewed before it is built.
A horizontal steam generator with two 6 kW heating elements for higher pressure work. It produces steam at 5 bar service pressure with a maximum of 6 bar, and the boiler body is insulated with mineral wool.
