Brand: EDIBON | Category: Scientific & Laboratory Equipment

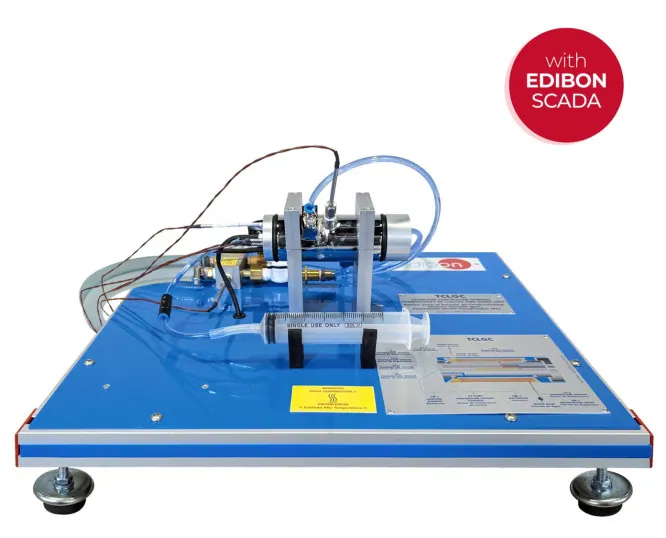

Aluminium cylinder inside a water cooled brass jacket, separated by a radial gap small enough to suppress natural convection. Filling that gap with the test fluid allows the thermal conductivity of air, water, a mineral oil or a vacuum to be determined.
| Parameter | Value |
|---|---|
| Specification | Aluminium body with variable power heating element and internal temperature sensor |
| Specification | Brass jacket holds the test fluid and the cooling water |
| Specification | Radial safety gap small enough to prevent natural convection of the fluid |
| Specification | Two O ring joints keep the body and jacket concentric and allow quick dismantling for cleaning |
| Specification | Water regulation valve, flow sensor and inlet and outlet temperature sensors |
| Specification | Supplied with EDIBON SCADA computer control, data acquisition and data management software |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
