Brand: EternalSun | Category: Scientific & Laboratory Equipment

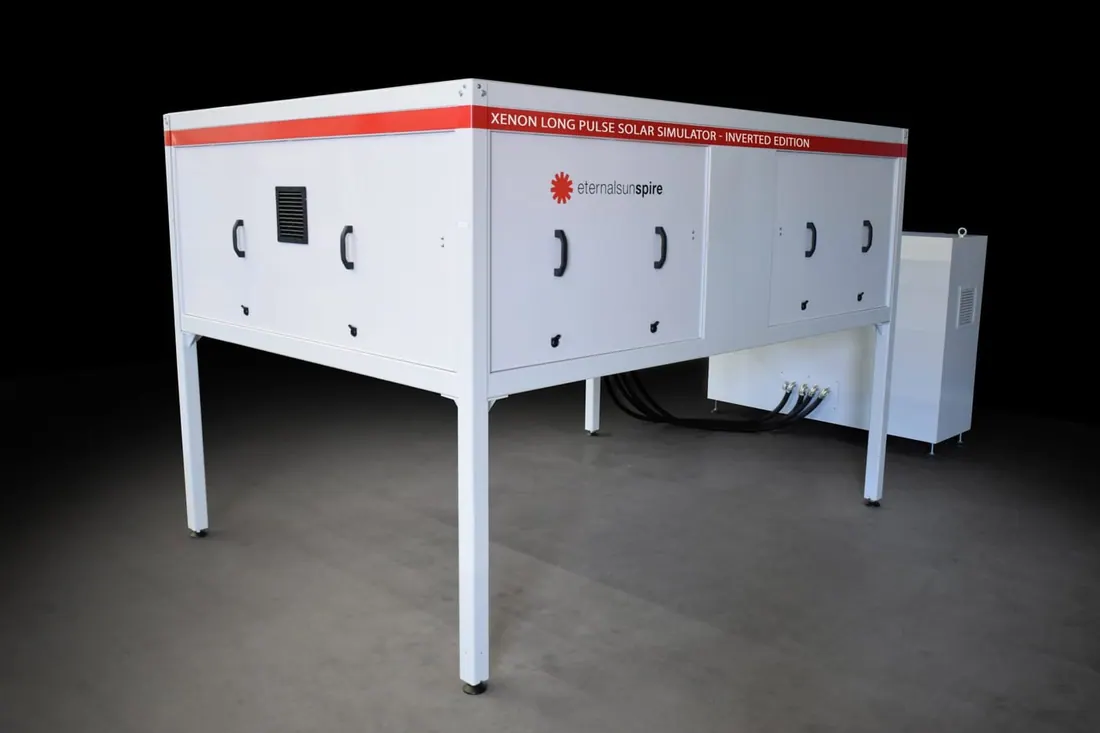

A large area xenon flash solar simulator used in PV module production lines and in test laboratories for power determination. It fires a single long pulse of simulated sunlight and records current voltage characteristics with high repeatability for all module types and sizes.
| Parameter | Value |
|---|---|
| Specification | Class A+A+A+ for spectrum, spatial uniformity and temporal stability to IEC 60904-9 edition 3.0 |
| Specification | Xenon single long pulse above 170 ms without software corrections |
| Specification | Measurement repeatability below 0.15% |
| Specification | Spectral coverage above 99% across 300 nm to 1200 nm |
| Specification | Typical cycle time of 20 seconds for inline automation |
| Specification | Modules can be placed sunny side up or sunny side down |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EternalSun equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
A xenon flash laboratory solar simulator combined with a temperature controlled chamber. It is used to determine module power, temperature coefficients to IEC 61215 and energy rating to IEC 61853, including bifacial and high efficiency module types.
A Class A+A+A+ steady state LED solar simulator for testing full size and mini PV modules of any technology, including perovskite and tandem. It offers a wide and tunable spectrum, adjustable irradiance and temperature control, so laboratories can measure power, stability and long term degradation.
A small steady state LED solar simulator for solar cells and PV mini modules, aimed at perovskite, tandem and thin film research. Modular LED panels set the test area, and a built in IV measurement system records power, degradation and stability during scale up.
