Brand: Saikang Medical | Category: Medical Equipment

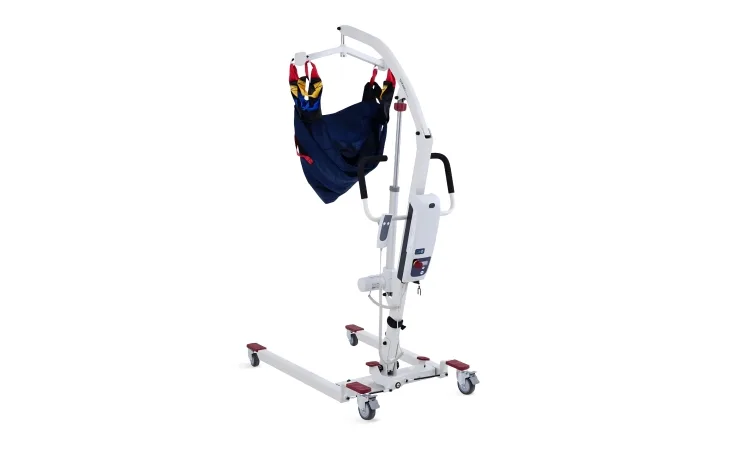

A MOTECK linear actuator motor drives the lift quietly and steadily. The structure is high-strength powder coated steel with a maximum load capacity of 180 kg. A red emergency stop is fitted so lifting can be halted at once if something goes wrong.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
High strength aluminium alloy over Oxford leather keeps this 4-fold stretcher compact and light enough to carry to the casualty. Unfolded it measures 2150×550×130mm (±10mm) and it packs down to 580×250×150mm (±10mm). Load capacity is 159kg, and two straps and a simple bag are supplied for transporting wounded and sick personnel.
Measuring 2120 mm long by 840 mm wide with the bed surface 590-900 mm ±10 mm from the floor, this trolley uses an HPL back bed board that allows half-body X-ray imaging and carries a back X-ray clamp, while the other boards are plastic-steel. Two hydraulic pumps and foot pedals on both sides of the bed frame handle lifting, forward tilt and backward tilt, giving 0-85° ±5° back lift, 0-30° ±5° leg lift and 0-15° ±2° in both Trendelenburg directions. Four 8-inch central control casters with central brakes front and rear are fitted, plus a fifth caster for directional movement and four anti-collision wheels. Static load capacity is 250 kg and dynamic load capacity 135 kg, with a 10 cm PU fabric mattress, patient straps and an oxygen bottle holder supplied.
Saikang publishes two builds of this stretcher, Type A and Type B, both folding in 2 for easier carrying and storage. A 5-inch silent wheel set is fitted, foldable and simple to operate, with reliable performance, so the stretcher can be rolled as well as carried.
