Brand: Renishaw | Category: Scientific & Laboratory Equipment

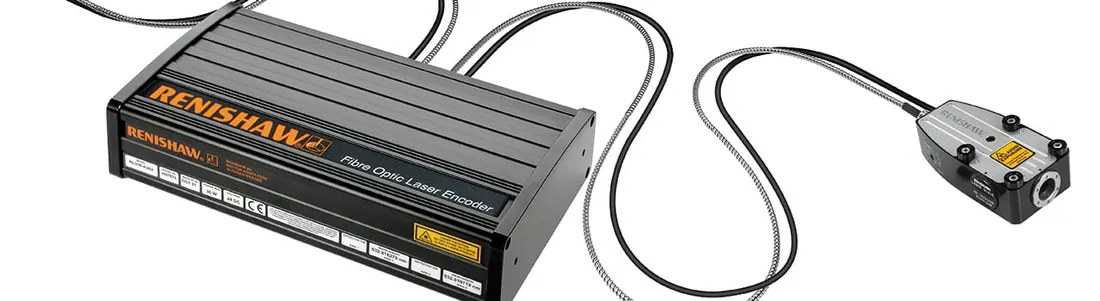

A homodyne laser interferometer system for position feedback, made up of an RLU laser unit and one or two RLD10 detector heads. Fibre optic delivery keeps heat away from the axis, which suits semiconductor stages and other high precision positioning work.
| Parameter | Value |
|---|---|
| Laser units | RLU10 and RLU20, single or dual axis |
| Laser source | Class 2 HeNe |
| Detector heads | RLD10 plane mirror, retroreflector, differential and no internal interferometer |
| Fibre lengths | 3 m or 6 m depending on laser unit |
| Velocities | up to 2 m/s, version and resolution dependent |
| Resolution | 38.6 picometres at 1 m/s when used with the RPI30 parallel interface |
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
