Brand: EDIBON | Category: Scientific & Laboratory Equipment

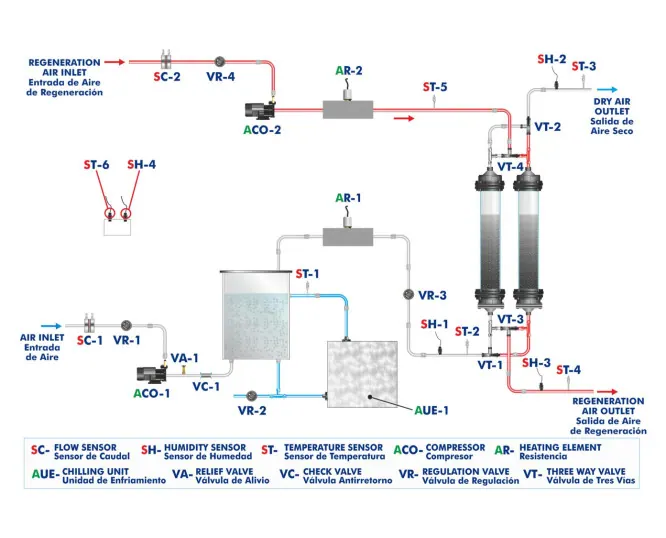

A damp air drying plant that removes moisture by adsorption, with transparent columns and continuous regeneration of the adsorbent. Two circuits allow one column to dry the air while the other is regenerated, which is how industrial dryers alternate in service.
| Parameter | Value |
|---|---|
| Flow rate | 9.66 m³/h max |
| Cooling capacity | 400 W |
| Power (air inlet) | 200 W |
| Power (regeneration) | 500 W |
| Diameter | 80 mm approx |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
