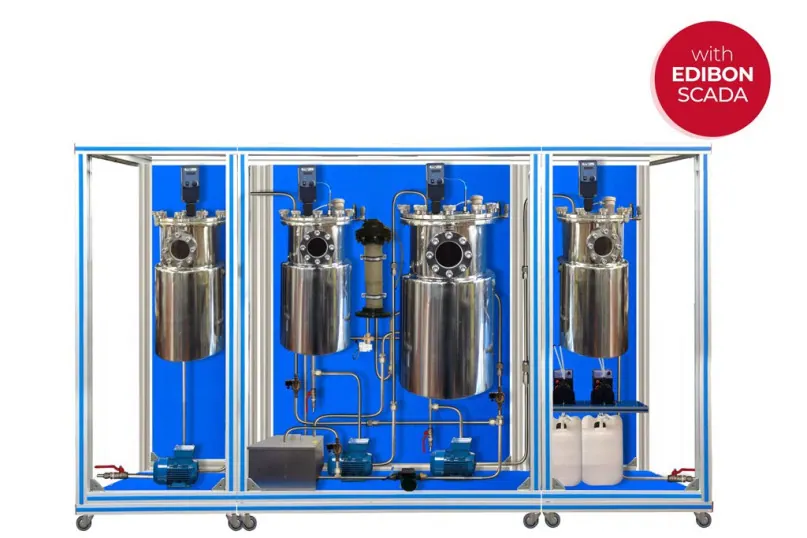

Pilot scale biogas plant with two stainless steel reactors that can run in one or two stages, in continuous or batch mode. The biogas is dried and then characterised for flow rate, humidity, methane and carbon dioxide content.
| Parameter | Value |
|---|---|
| Specification | Two stainless steel reactors with level sensors and stirring systems |
| Specification | Supply tank with stainless steel agitator and computer controlled feed pump |
| Specification | Transfer pump between reactors and a further pump to the digestate collection tank |
| Specification | Heating jackets fed from a heated tank and circulating pump, with PID temperature control |
| Specification | Two computer controlled peristaltic pumps dose acid or base to each reactor independently |
| Specification | Silica gel drying column and measurement pipe for flow, humidity, methane, carbon dioxide and temperature |
