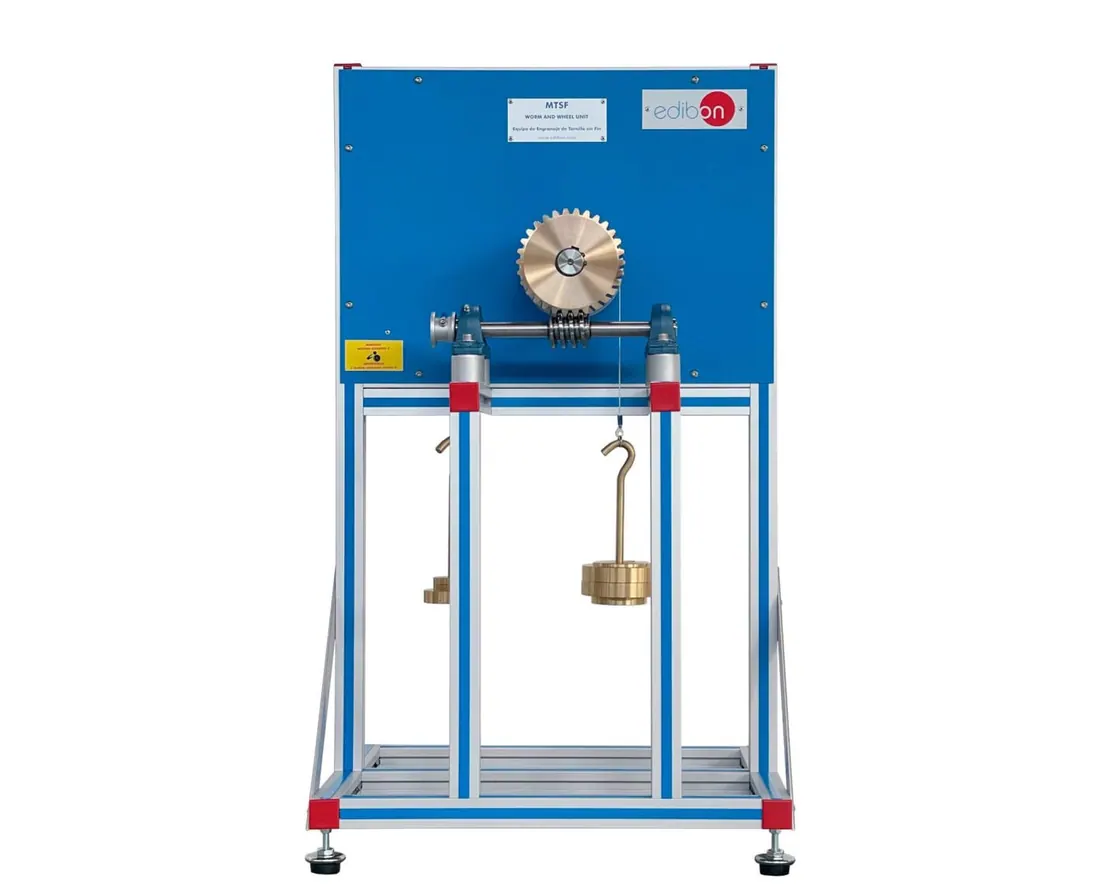

MTSF: Worm and Wheel Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MTSF is used to study the worm and wheel drive. Load and effort are applied through calibrated weights so velocity ratio, mechanical advantage and efficiency can be measured, and the self locking behaviour of the drive observed.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 560 x 510 x 1000 mm approx |
| Weight | 20 Kg approx |
| Wheel module | 4 mm |
| Worm module | 4 mm |
| One pulley is located on the worm shaft (diameter | 30 mm) to help to exert the effort to raise a load and the other pulley on the wheel |
| Two pulleys two pulleys shaft (diameter | 120 mm) to load the system |
