Brand: Semian | Category: Scientific & Laboratory Equipment

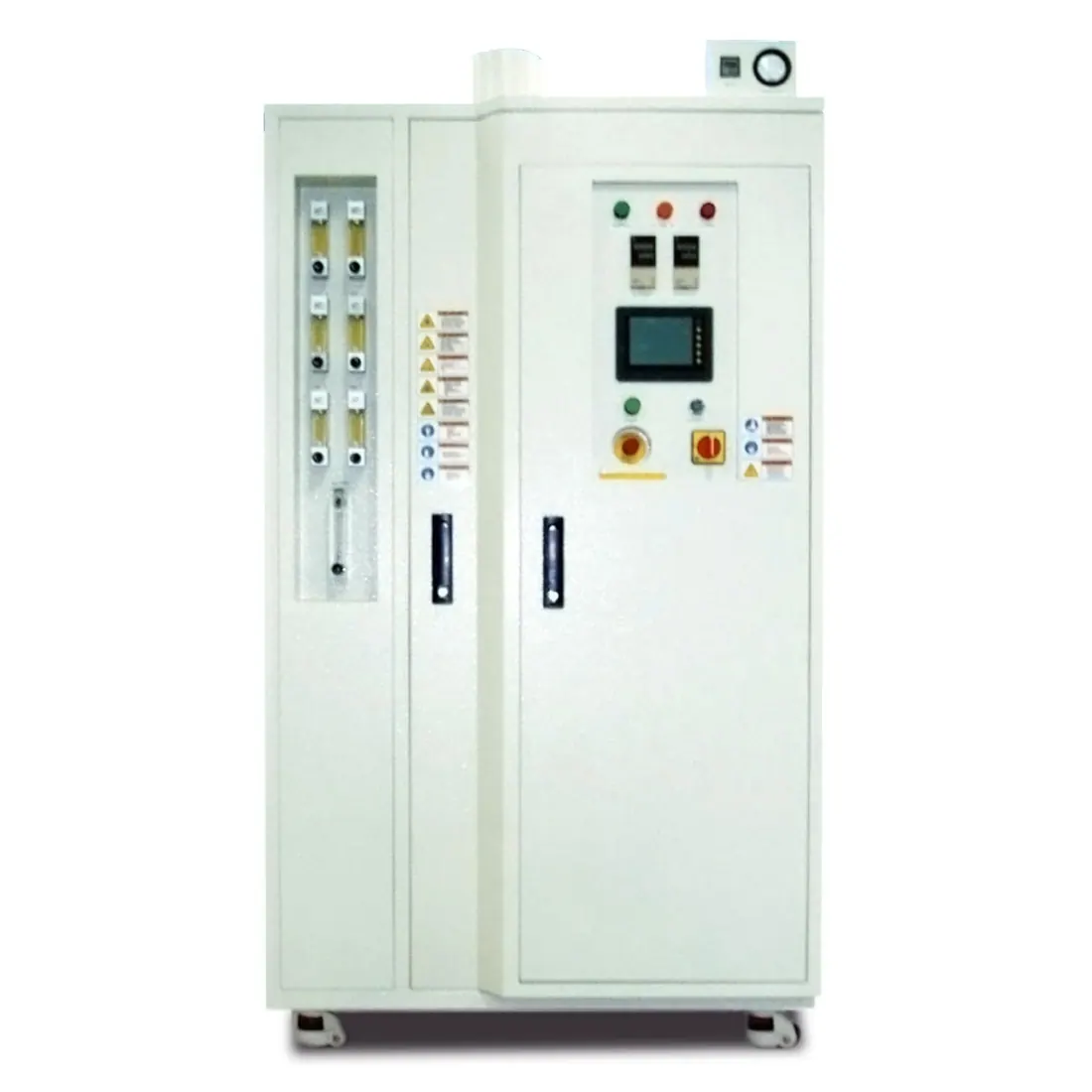

Burn and wet local scrubber that treats process exhaust from semiconductor tools using an LNG fired combustion stage followed by water scrubbing. Up to four gas inlet ports feed one cabinet, which suits multi chamber tools in the sub fab.
| Parameter | Value |
|---|---|
| Total gas treatment volume | 200 SLM |
| Gas inlet | NW40, 1 to 4 port |
| Gas exhaust | NW63, 1 port, -25 to -75 mmH2O |
| Electrical power consumption | 2 kW |
| Voltage/phase | 208V 2~ 50/60Hz 10A |
| Specification | Dimensions 1050 (W) x 880 (D) x 1980 (H), weight 460 kg |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Semian equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
