Brand: EDIBON | Category: Scientific & Laboratory Equipment

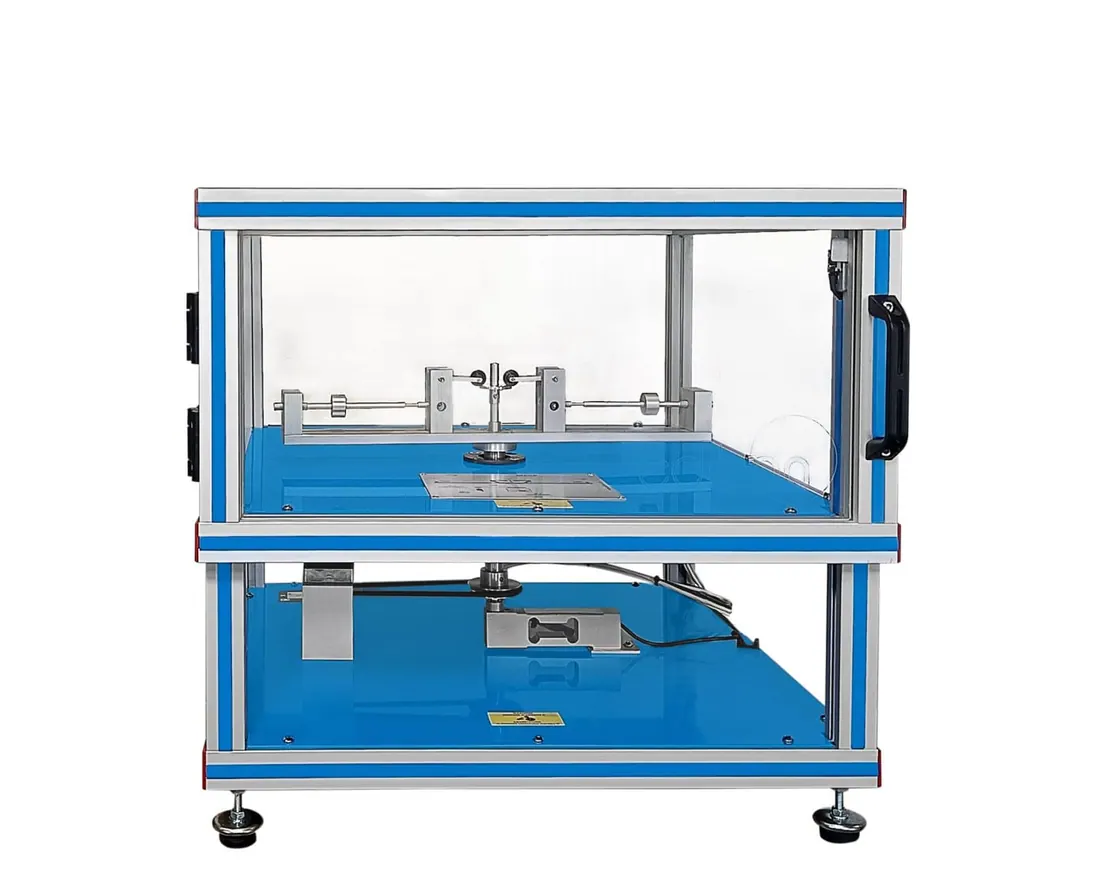

MFCE lets students measure the centrifugal force acting on rotating masses. Masses of different value are set at different radii on a driven rotor and the resulting force is read against speed, showing how force varies with mass, radius and angular velocity.
| Parameter | Value |
|---|---|
| Dimensions | 630 x 630 x 600 mm approx |
| Weight | 20 Kg approx |
| Speed range | 0 to 1500 rpm |
| Rotating arm to place the weights at different positions | 112, 137, 162 and 187 mm from the center of rotation |
| Force sensor, range | 0 to 30 N, resolution: 0.1 N |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
MIF is used to determine the moment of inertia of a flywheel and to study angular acceleration. A falling mass on a cord drives the flywheel while fall time and drop height are recorded. It also allows bearing friction losses to be estimated.
MDFC demonstrates the Coriolis effect on a rotating system. Water is fed through radial tubes on a rotating arm so the deflecting force acting on a mass moving in a rotating frame can be observed and measured. It is used in dynamics teaching.
MRYE1 demonstrates the wheel and axle as a simple machine. Load and effort cords are wound on two drums of different diameter fixed to a common shaft, so mechanical advantage, velocity ratio and efficiency can be measured in introductory statics teaching.
