Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

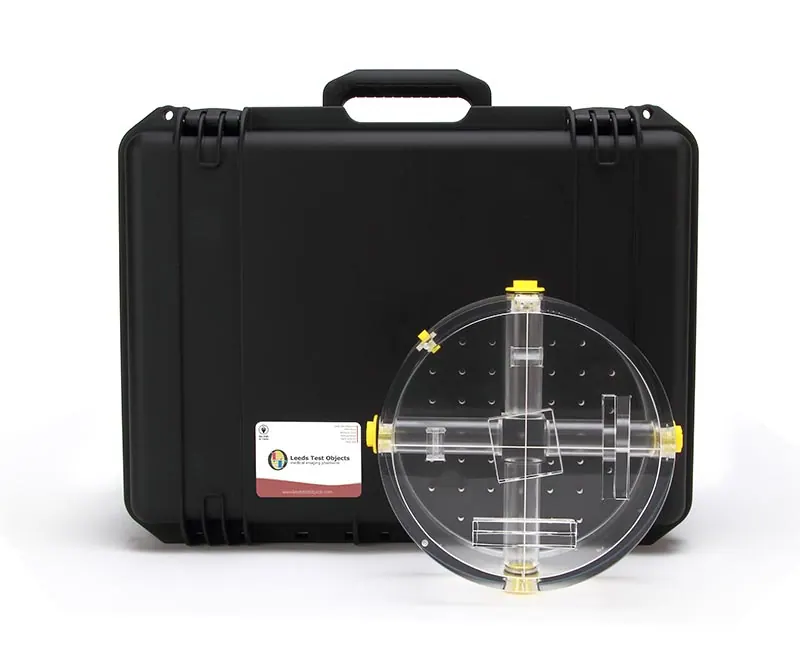

An MRI image quality phantom available with a single chamber (MagIQ) or two identical chambers (MagIQ Duo) that can be filled with different solutions to test high and low field in one object. It covers distortion, resolution, contrast, fat suppression, SNR, ghosting, uniformity and slice profile.
| Parameter | Value |
|---|---|
| Dimensions | 230 mm diameter (254 mm with caps) and 100 mm deep, solo version |
| Specification | 5 signal compartments (MagIQ) or 10 (MagIQ Duo) |
| Specification | Supplied with 3.5 litres each of 1.5T and 3.0T MRI solutions as standard |
| Specification | Geometric distortion array of 25.0 mm uniformly pitched high contrast circles |
| Specification | Spatial resolution 1.0 LP/mm with MTF edge block |
| Conforms to IEC 62464-1 | 2019 |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
