Brand: EDIBON | Category: Scientific & Laboratory Equipment

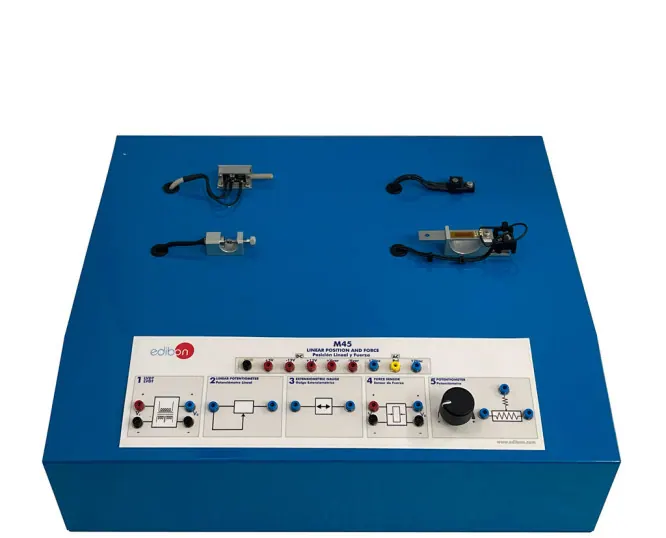

Covers the use and applications of linear variable displacement transducers, which give an output voltage related to the quantity being measured, such as displacement or force. Students calibrate the transducer and condition its output.
| Parameter | Value |
|---|---|
| Dimensions | 405 x 300 x 350 mm |
| Weight | 6 kg approx |
| Current input | 10 to 13 mA |
| Current max. | 200 mA |
| Tolerance | +/- 20% |
