Brand: EDIBON | Category: Scientific & Laboratory Equipment

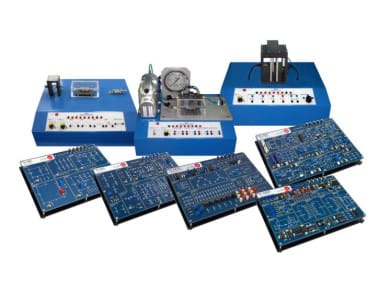

A modular laboratory for basic electronics, basic electricity and circuit theory, built from a power supply, a base unit and self-contained study modules. Any configuration can be chosen by area of study and number of working posts, and the system can be enlarged later.
| Parameter | Value |
|---|---|
| Power supply, FACO | 110/220 VAC, 50/60 Hz |
| Power supply, FACO | 225 x 205 x 100 mm approx, 2 kg approx |
| Base unit, EBC100 | 410 x 298 x 107 mm approx, 2 kg approx |
| Study modules | 300 x 210 x 45 mm approx, 300 g approx |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
Introduces alternating current: waveform characteristics, peak and RMS relationships, phase, and the behaviour of resistive, inductive and capacitive circuits including resonance. Faults can be simulated in most circuits so students work out why a circuit misbehaves.
Extends transistor study to circuits combining two or more devices, showing how multi-transistor structures improve on the characteristics of a single transistor, for example raising input impedance without losing gain. Faults can be introduced for diagnostic practice.
Covers the basic concepts of diodes as extrinsic semiconductors, with practical measurement of their characteristics and the rectifying circuits built from them. Faults can be simulated in most circuits so the student must find the damaged component or the wrong connection.
