Brand: Jandel Engineering | Category: Nanotechnology

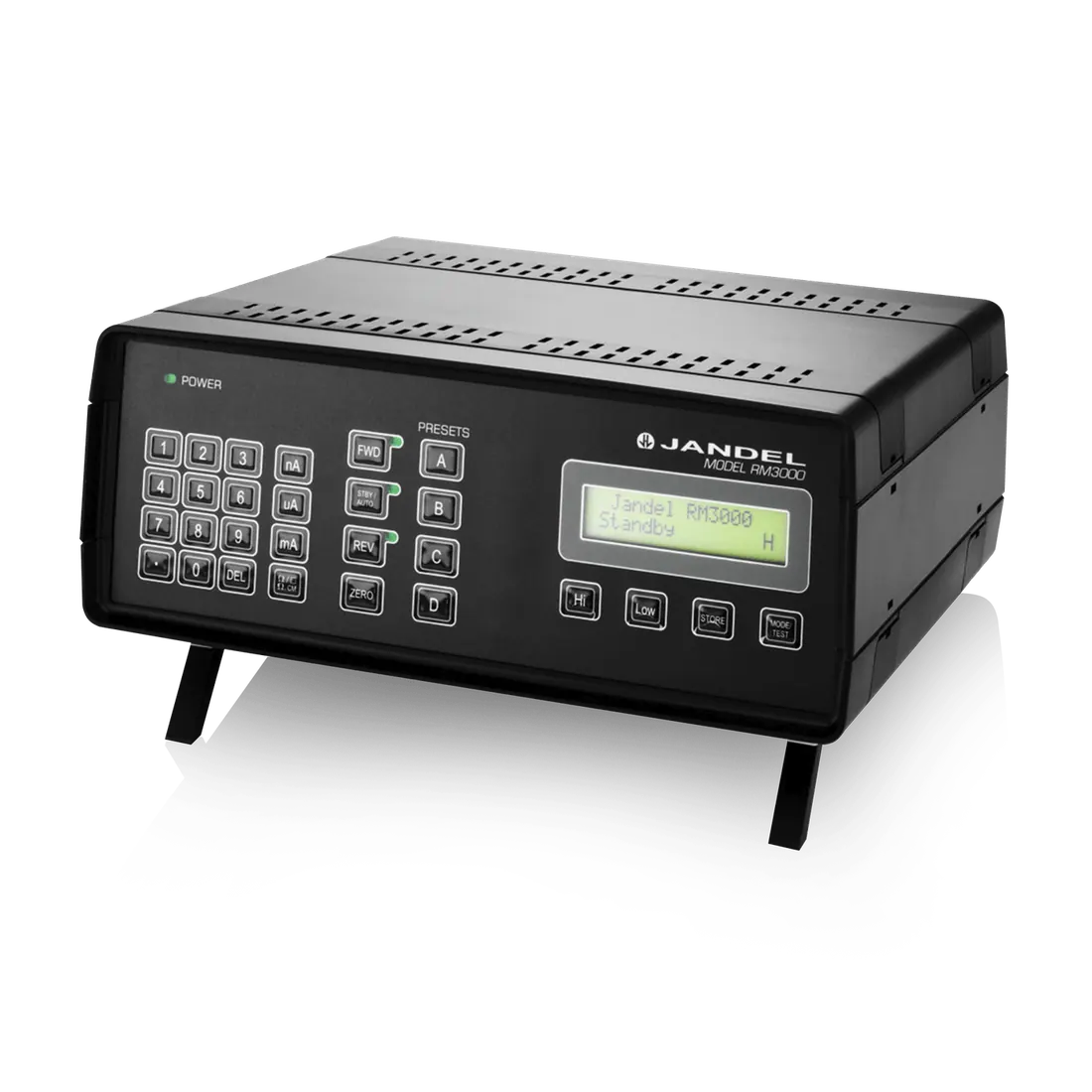

The RM3000+ is Jandel's constant current source and digital voltmeter for four point probe measurement. It covers the widest range of the Jandel test units and is the unit supplied with the General Purpose, Wafer and Multipurpose systems. Readings are given in sheet resistance or volume resistivity.
| Parameter | Value |
|---|---|
| Constant current | 10 nA to 100 mA |
| Voltage measurement | 0.001 mV to 1000 mV |
| Sheet resistance range | 1 milliohm per square to 1 x 10^8 ohms per square |
| Volume resistivity range | 1 milliohm.cm to 1 x 10^6 ohm.cm |
Contact Vvon Technologies Limited about Jandel Engineering equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
The ResTest is a constant current source and digital voltmeter with a colour screen. It shows readings directly in millivolts, sheet resistance and volume resistivity, and stores results on board or straight to a memory stick, which suits routine production checks.
The CHI1550A dispenses picolitre droplets to build high density solution arrays for chemical, biological and medical work. It combines a three dimensional positioner, a piezoelectric jetting device and a sample platform, with software for binary, ternary and quaternary array patterns.
The HM21 is Jandel's compact four point probe test unit with six switched constant current settings. It is the unit paired with the Hand Applied Probe in the Portable Probing System, so measurements can be made away from the laboratory bench.
